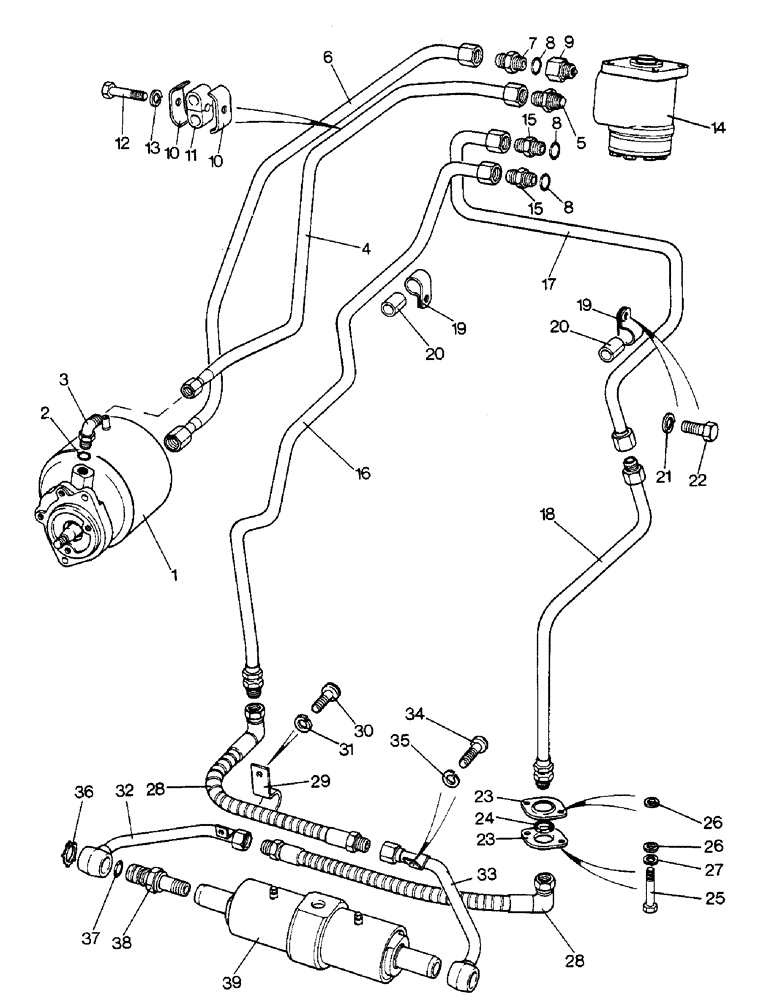

Запчасти Case IH 1690 (H02-1) - STEERING SYSTEM - TRANSVERSE CYLINDER, LOW PROFILE MODEL (13) - STEERING SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - See figure H8

1шт.

2

K623649

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- 7/16", internal diameter

1шт.

3

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 9/16 UNF

1шт.

4

K202817

PIPE

- pump

1шт.

5

K203639

VALVE

NON-RETURN VALVE - steering

1шт.

6

K202818

PIPE

- steering valve

1шт.

7

218-5356

HYD CONNECTOR,1 3/16"-12, 37 Degree x 1 1/16"-12, O-Ring

UNION - 3/8-7/8 UNF pump return

1шт.

9

K200060

VALVE

NON-RETURN VALVE - steering

1шт.

10

K951982

SHIM

CLAMP - pipes

6шт.

11

K951993

SLEEVE

RUBBER SLEEVE -, Serial Range: clamp-pipes

6шт.

12

K650364

BOLT

- M10 x 45

3шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

14

K946083

VALVE

STEERING VALVE ASSEMBLY - See figure H1

1шт.

Use K207419 Steering Valve, & 218-5066 Connector

1шт.

15

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION - 3/4 UNF

2шт.

16

K202857

PIPE

- right-hand side

1шт.

17

K202858

HOSE

PIPE - left-hand upper

1шт.

18

K202859

PIPE ASSY.

PIPE - left-hand lower

1шт.

19

K621717

CLIP

CLAMP - pipes, 5/8"

2шт.

20

K926858

TUBE,0.47" ID x 0.625" OD x 1" L

NYLON TUBE - clamp to pipes

2шт.

21

K651849

WASHER

- lock, 10 MM

2шт.

22

513-704

BOLT

SETSCREW - M10 x 20

2шт.

23

K945907

RING, SNAP

CLAMP PLATE - pipes to main frame

4шт.

24

K628856

O-RING,0.649" ID x 0.25" Width

- 5/8" internal diameter

2шт.

25

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SETSCREW - 1/4 UNC x 7/8"

4шт.

26

K19470

WASHER

- 1/4"

8шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

28

K202295

HOSE

PIPE - flexible, 3/4 UNF x 24-1/4"

2шт.

29

K952958

CLIP

CLAMP - right-hand flexible pipe

1шт.

30

26-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SETSCREW - 5/16 UNC x 3/4"

1шт.

31

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

32

K945901

PIPE

- arm, right-hand

1шт.

33

K945903

PIPE

- left-hand

1шт.

34

182-241

SCREW,Sl Pan Hd, 5/16" - 18 x 5/8"

SETSCREW - 5/16 UNC x 5/8"

1шт.

35

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

36

K621476

RING, SNAP

RING - snap, 24 MM, external

2шт.

37

L33215

O-RING,0.737" ID x 0.943" OD x 0.103"

- 3/4" internal diameter

4шт.

38

K626070

FITTING

UNION - 3/4", special

2шт.

39

K948609

CYLINDER

STEERING CYLINDER ASSEMBLY - See figure H9, H10

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8" internal diameter

4шт.
