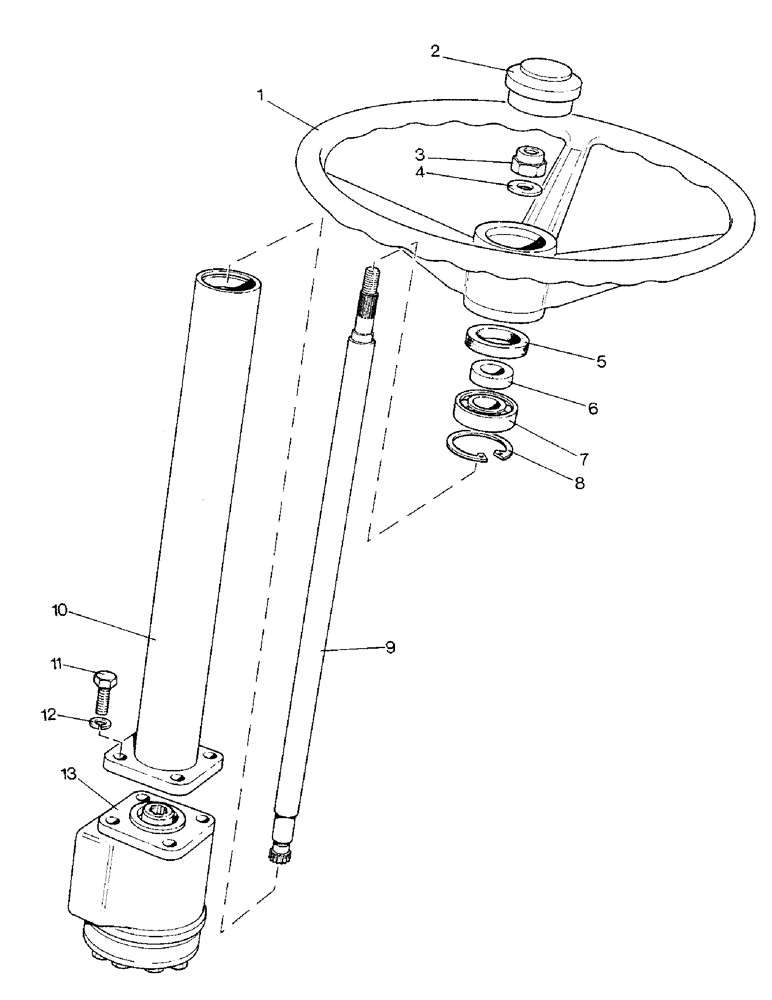

Запчасти Case IH 1690 (H01-1) - STEERING COLUMN AND VALVE, HIGH PLATFORM, CAB, MFD, HIGH PLATFORM, CAB, LOW PROFILE MFD, LOW PROFILE (13) - STEERING SYSTEM

1

K949446

HANDWHEEL

WHEEL - steering

1шт.

2

K952274

CAP

- hub

1шт.

3

131-70

NUT,1/2"-13, GB

NUT - 1/2 UNC, self-locking

1шт.

4

K626686

WASHER

- 1/2"

1шт.

5

K623479

WASHER

- felt, 1/2" internal diameter

1шт.

6

K627103

BUSHING

SPACER - bearing

1шт.

7

K620192

BALL

BEARING - ball

1шт.

8

K11911

RING, SNAP

RING - snap, 1-5/8", internal

2шт.

9

K201585

SHAFT

- steering, 14-1/4" (Low Profile, Low Profile MFD)

1шт.

9

K202745

SHAFT

- steering (11-1/16") (High Platform, Cab, High Platform, Cab, MFD)

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT - steering (9-1/2") (Order K202745 and K202704) (High Platform, Cab, High Platform, Cab MFD)

1шт.

10

K201581

FLANGE

COLUMN - steering (Low Profile, Low Profile MFD)

1шт.

10

K202704

FLANGE

COLUMN - steering (8-9/16") (High Platform, Cab, High Platform, Cab, MFD)

1шт.

11

113-2225

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

(Low Profile, Low Profile MFD) Hex, 3/8"-16 x 1 3/8", G5

4шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

SETSCREW - 3/8 UNC x 1" (High Platform, Cab, High Platform, Cab, MFD)

4шт.

12

K19482

SPRING WASHER

WASHER - lock, 3/8"

4шт.

K962387

GASKET KIT

SEAL PACK - steering valve

1шт.

13

K946083

VALVE

- steering, Orbitrol OSP 125 (Low Profile, High Platform, Cab)

1шт.

13

K924898

VALVE

- steering, Orbitrol OSP 100, (Low Profile, High Platform, Cab), Serial Range: -11210996

1шт.

13

K946083

VALVE

- steering, Orbitrol OSP 125, (Low Profile, High Platform, Cab), Start Serial: 11210996

1шт.
