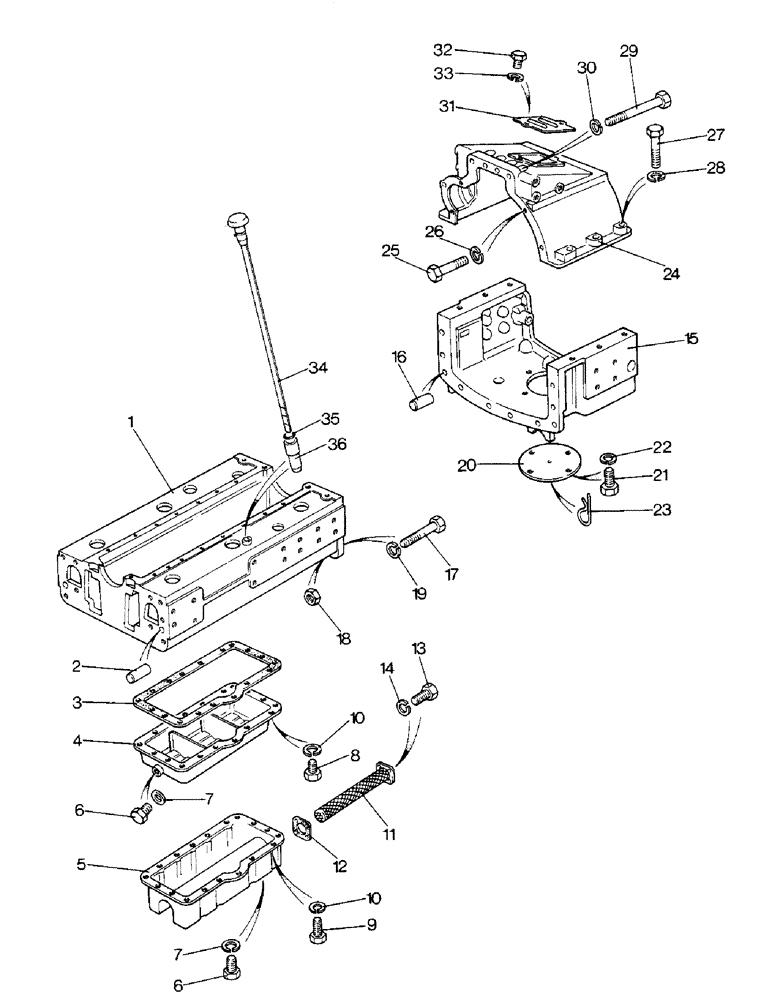

Запчасти Case IH 1690 (M01-3) - FRONT MAIN FRAME AND CLUTCH HOUSING, MFD MODEL, POWER SHIFT, SYNCHROMESH (12) - FRAME

1

K956546

FRAME

MAIN FRAME - front

1шт.

2

K900105

PIN

DOWEL - 5/8 x 1-7/16"

2шт.

3

K918684

GASKET,2.38mm Thk

- sump cover

1шт.

4

K956548

SUMP

COVER - sump (Power Shift, Synchromesh)

1шт.

5

K200926

SUMP

COVER - sump (MFD Model)

1шт.

6

K623849

PLUG

- 1/2 BSP (Power Shift, Synchromesh)

1шт.

K623849

PLUG

- 1/2 BSP (MFD Model)

2шт.

7

K626317

WASHER

- sealing, 7/8" (Power Shift, Synchromesh)

1шт.

K626317

WASHER

- sealing, 7/8" (MFD Model)

2шт.

8

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW - 5/16 UNC x 5/8" (Power Shift, Synchromesh)

18шт.

9

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW - 5/16 UNC x 1" (MFD Model)

18шт.

10

K19481

SPRING WASHER

WASHER - lock, 5/16"

18шт.

11

K200939

FILTER

SCREEN - filter (MFD Model)

1шт.

12

K200943

GASKET

- screen (MFD Model)

1шт.

13

K602849

SCREW

SETSCREW - 5/16 UNC x 7/8" (MFD Model)

4шт.

14

K19481

SPRING WASHER

WASHER - lock, 5/16" (MFD Model)

4шт.

15

K956247

CLUTCH

HOUSING - lower half

1шт.

16

K900105

PIN

DOWEL - 5/8 x 1-7/16"

2шт.

17

K601358

BOLT

- 5/8 UNC x 2-1/4"

4шт.

17

K601212

BOLT

- 5/8 UNC x 3"

4шт.

18

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

19

K19485

WASHER

- lock, 5/8"

8шт.

20

K919622

PLATE

- cover

1шт.

21

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW - 5/16 UNC x 5/8"

4шт.

22

K19481

SPRING WASHER

WASHER - lock, 5/16"

4шт.

23

K11933

PIN

- lock, 1/8 x 5/8"

1шт.

24

K956435

CLUTCH

HOUSING - upper half

1шт.

25

K600408

BOLT,3/8" x 2"

- 3/8 UNC x 2-1/2"

2шт.

26

K19482

SPRING WASHER

WASHER - lock, 3/8"

2шт.

27

K601810

BOLT

- 1/2 UNC x 2-1/2

6шт.

28

K626345

LOCK WASHER

WASHER - lock, 1/2"

6шт.

29

K600822

BOLT

- 1/2 UNC x 5"

4шт.

30

K626345

LOCK WASHER

WASHER - lock, 1/2"

4шт.

31

K904246

COVER

- housing

1шт.

32

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SETSCREW - 1/4 UNC x 1/2"

2шт.

33

K626341

SPRING WASHER

WASHER - lock, 1/4"

2шт.

34

K957178

DIPSTICK

- engine oil

1шт.

35

K625400

O-RING,0.07" Thk x 0.239" ID

- 1/4" ID

1шт.

36

K948224

SLEEVE

- dipstick

1шт.
