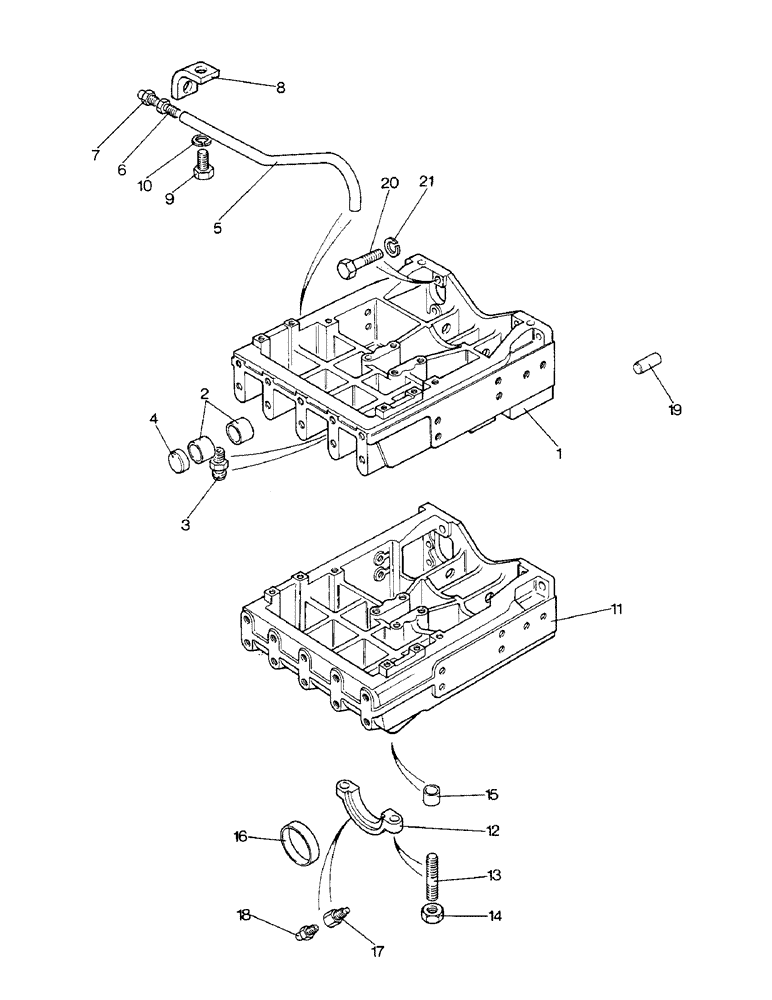

Запчасти Case IH 1690 (M01-1) - MAIN FRAME FRONT EXTENSION, MFD MODEL, POWER SHIFT, SYNCHROMESH (12) - FRAME

1

K956464

EXTENSION

- front (Power Shift, Synchromesh)

1шт.

2

K15597

BUSHING

- trunnion pin (Power Shift, Synchromesh)

4шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (Power Shift, Synchromesh) 1/4"-28 NPT x .54" lg

1шт.

4

K623794

CORE

PLUG - bushing (Power Shift, Synchromesh)

1шт.

5

K948808

TUBE

PIPE - lube, trunnion (Power Shift, Synchromesh)

1шт.

6

K622255

FITTING

ADAPTER - grease fitting (Power Shift, Synchromesh)

1шт.

7

K622256

FITTING

GREASE FITTING - 3/16" (Power Shift, Synchromesh)

1шт.

8

K948809

BRACKET

- pipe (Power Shift, Synchromesh)

1шт.

9

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW - 5/16 UNC x 5/8" (Power Shift, Synchromesh)

1шт.

10

K19481

SPRING WASHER

WASHER - lock, 5/16" (Power Shift, Synchromesh)

1шт.

11

K201571

AXLE SUPPORT

EXTENSION - (Carraro 108241) (MFD Model), Includes Ref. 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

CAP - bearing part of K201571) (MFD Model)

2шт.

13

K260224

STUD

- bearing cap (Carraro 107085) (MFD Model)

4шт.

14

K965427

NUT

- stud (Carraro 22436) (MFD Model)

4шт.

15

K260223

RING

DOWEL - ring (Carraro 108501) (MFD Model)

4шт.

16

K965265

BUSHING

- steel (Carraro 101575/1) (MFD Model)

2шт.

17

K965424

ADAPTER

SCREW - locating (MFD Model)

2шт.

18

K965426

STUD

GREASE FITTING - M6 (MFD Model)

2шт.

19

K900105

PIN

DOWEL - locating, 5/8 x 1-7/16"

2шт.

20

K600885

BOLT

- 1/2 UNC x 2" (Synchromesh, MFD Model)

12шт.

20

K608824

BOLT

- 1/2 UNC x 2", special (Power Shift)

12шт.

21

K626345

LOCK WASHER

WASHER - lock, 1/2"

12шт.
