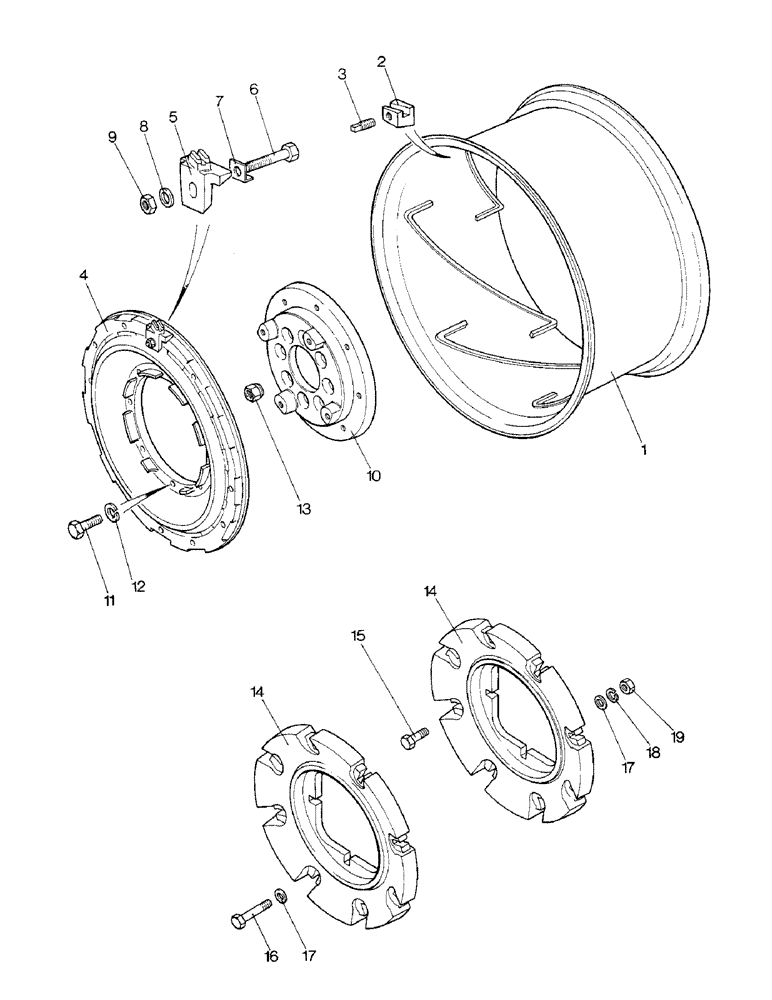

Запчасти Case IH 1690 (T02-5) - POWER ADJUSTED REAR WHEELS (11) - WHEELS & WEIGHTS

K301058

WHEEL

REAR WHEEL ASSEMBLY - for 18.4/15-38 tires, Includes Ref. 1 - 9

2шт.

1

K301021

RIM

REAR WHEEL RIM - W16L x 38"

1шт.

2

K201031

BRACKET

- stop

2шт.

3

K301032

LOCK

SETSCREW - stop bracket

1шт.

4

K301033

WHEEL

REAR WHEEL - center

1шт.

5

K301028

WHEEL

CLAMP - rim

6шт.

6

K301027

BOLT

- 3/8 UNC x 3-1/2"

6шт.

7

K301029

WASHER

- lock

6шт.

8

K301030

WASHER

- 3/4"

6шт.

9

280954

NUT,3/4"-10, G5

- 3/4 UNC

6шт.

K301057

RIM

REAR WHEEL ASSEMBLY - for 16.9/14-34 tires, Includes Ref. 1 - 7

2шт.

1

K302265

RIM

REAR WHEEL RIM - W15 x 34

1шт.

2

K301031

RIM

BRACKET - stop

2шт.

3

K301032

LOCK

SETSCREW - stop bracket

2шт.

4

K301056

WHEEL

REAR WHEEL - center

1шт.

5

K301028

WHEEL

CLAMP - rim

6шт.

6

K301027

BOLT

- 3/8 UNC x 3"

6шт.

7

K301029

WASHER

- lock

6шт.

K301030

WASHER

- 3/4"

6шт.

9

280954

NUT,3/4"-10, G5

- 3/4 UNC

6шт.

10

K948149

ADAPTER

ADAPTOR - rear wheel

2шт.

11

K601360

BOLT

- 5/8 UNC x 2-1/2" (Replaces K301360)

16шт.

12

K19485

WASHER

- lock, 5/8"

16шт.

13

K617169

WHEEL NUT

WHEEL NUT - 3/4 UNF

16шт.

UK4374

WEIGHT UNIT - ballast (For wheel K301058), Includes Ref. 14 - 19

1шт.

14

K203323

WHEEL

BALLAST WEIGHT - ballast

4шт.

15

K601358

BOLT

- 5/8 UNC x 2-1/4"

8шт.

16

K601332

BOLT

- 5/8 UNC x 4"

8шт.

17

K301030

WASHER

- 5/8", special

16шт.

18

K19485

WASHER

- lock, 5/8"

16шт.

19

280374

NUT,Hex, 5/8" - 11, Gr 5

8шт.
