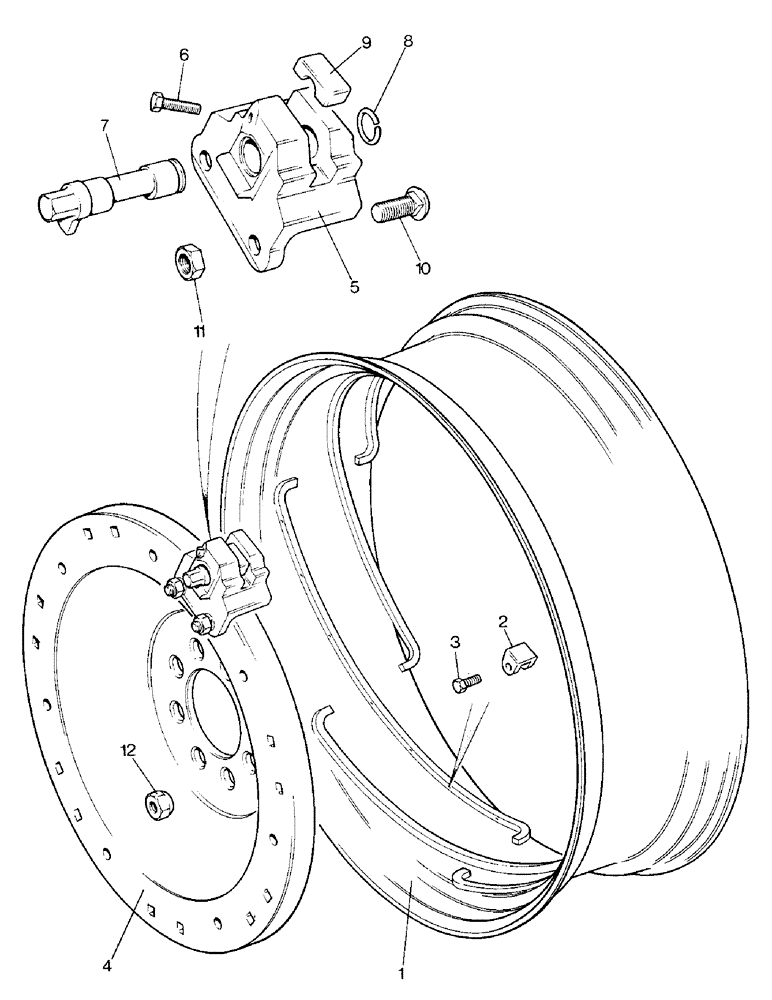

Запчасти Case IH 1690 (T02-3) - POWER ADJUSTED REAR WHEELS (11) - WHEELS & WEIGHTS

K302520

RIM

REAR WHEEL ASSEMBLY - for 18.4/15-34 tires (Not North America), Includes Ref. 1 - 11

2шт.

1

K302522

WHEEL

REAR WHEEL RIM - W16L x 34

1шт.

2

K917337

STOP

BRACKET - stop

2шт.

3

K200142

SCREW,Hex, 9/16" x 2 1/8"

STOP SCREW - 9/16 UNC

2шт.

4

K302521

WHEEL

REAR WHEEL - center

1шт.

K965177

RIM

CLAMP ASSEMBLY - rim, Includes Ref. 5 - 8

7шт.

5

K964557

BODY - clamp

1шт.

6

K300005

BRACKET

SETSCREW - M8 x 40

1шт.

7

K200128

PIN

- eccentric

1шт.

8

K917341

RING

- snap, eccentric pin

1шт.

9

K917342

BLOCK

- clamp

7шт.

10

K304694

CARRIAGE BOLT

- carriage M16

7шт.

11

K651530

NUT

- M16

7шт.

12

K617177

WHEEL NUT

- wheel

16шт.
