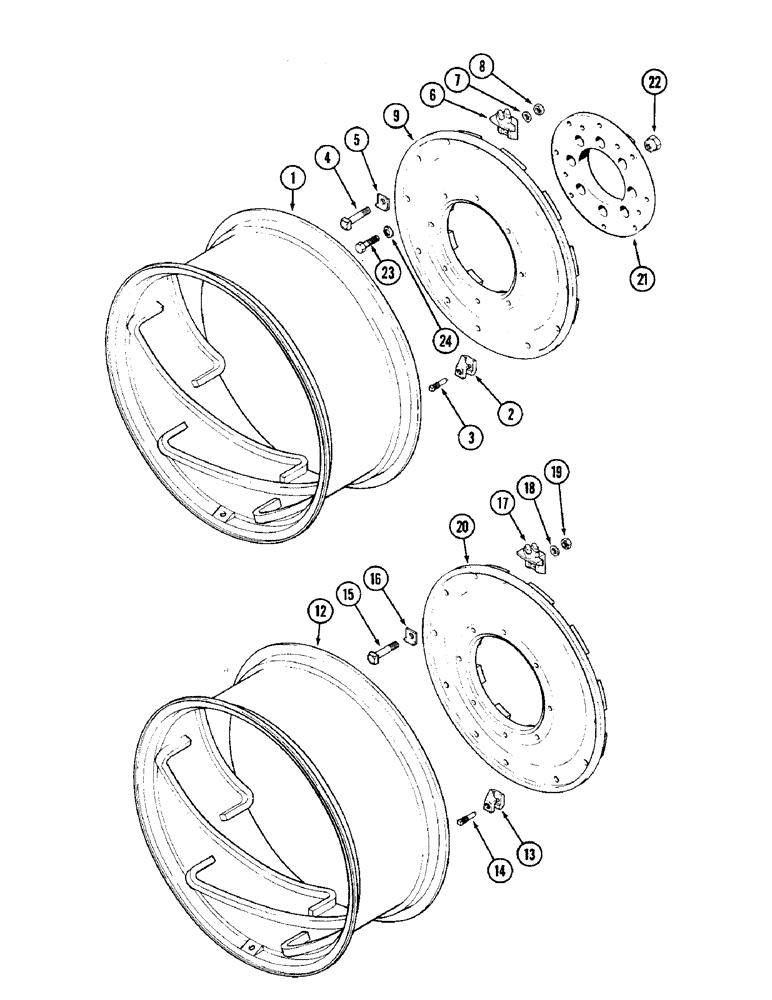

Запчасти Case IH 1690 (T02-1) - REAR WHEELS (11) - WHEELS & WEIGHTS

A161994

RIM

WHEEL ASSEMBLY - 18.4 x 34" (467.4 x 864 MM) (Machinery item), Includes Ref. 1 - 9

2шт.

1

A33170

RIM

- wheel

1шт.

2

A9406

STOP

- rim

2шт.

3

A9440

STOP

SCREW - lock stop

2шт.

4

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- clamp, 3/4 x 3-1/2" NC square head (Grade 5)

6шт.

5

A34799

LOCK WASHER

- lock, clamp bolt

6шт.

6

A33171

CLAMP

- double ramp

6шт.

7

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- clamp nut

6шт.

8

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- heavy, 3/4" NC hex

6шт.

9

A33172

WHEEL

CENTER - wheel

1шт.

A161731

WHEEL (STEERING)

WHEEL ASSEMBLY - 18.4 x 38" (467.4 x 965 MM) (Machinery item)

2шт.

A163259

WHEEL

ASSEMBLY - 16.9 x 38" (429.3 x 965 MM) (Machinery item) (Replaces A162359), Includes Ref. 12 - 20

2шт.

12

A66197

RIM

- wheel

1шт.

13

A9406

STOP

- rim

4шт.

14

A9440

STOP

SCREW - lock stop

4шт.

15

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- clamp, 3/4 x 3-1/2" NC square head (Grade 5)

6шт.

16

A34799

LOCK WASHER

- lock, clamp bolt

6шт.

17

A33171

CLAMP

- double ramp

6шт.

18

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- clamp nut

6шт.

19

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- heavy, 3/4" NC hex

6шт.

20

A33174

WHEEL

CENTER - wheel

1шт.

21

K948149

ADAPTER

- hub

2шт.

22

K617169

WHEEL NUT

- special wheel, 3/4" UNC

16шт.

(1-3/16" Long)

1шт.

23

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- 5/8-11 NC x 2-1/2" hex head

16шт.

24

192-65

LOCK WASHER,5/8"

5/8"

16шт.
