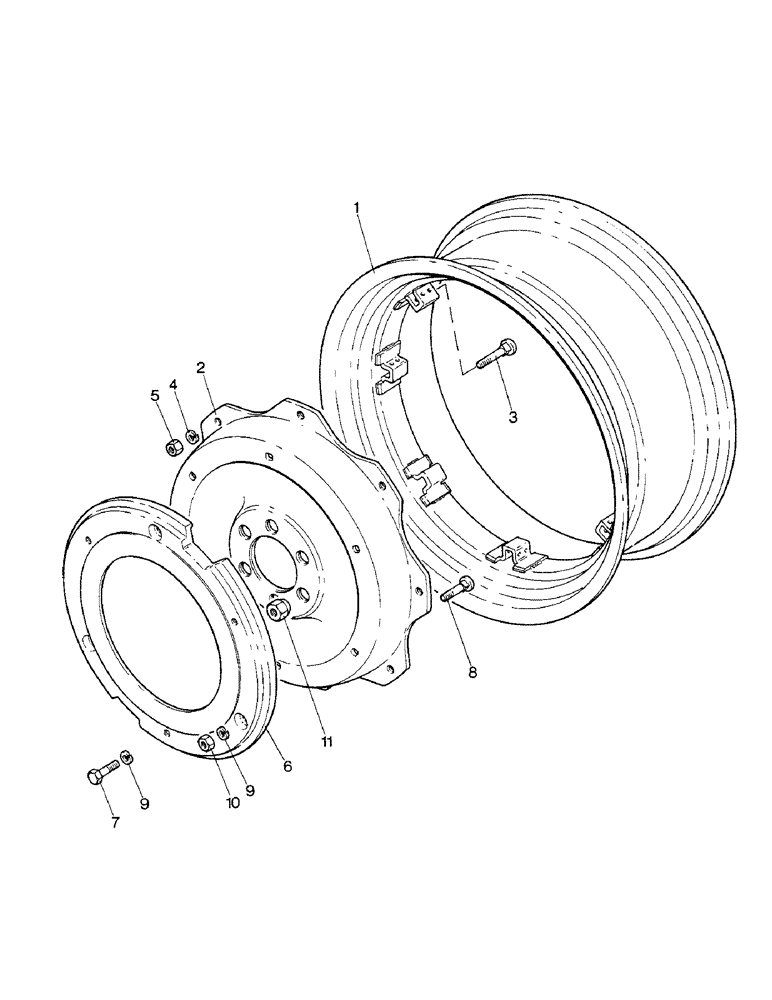

Запчасти Case IH 1690 (T01-1) - REAR WHEELS AND BALLAST WEIGHTS (11) - WHEELS & WEIGHTS

K301019

RIM

REAR WHEEL ASSEMBLY - for 16.9/14-34 tires, Includes Ref. 1 - 5

2шт.

1

K301012

WHEEL

REAR WHEEL RIM - DW 14 x 34

1шт.

1

K306363

RIM

DW16X34

1шт.

2

K301020

DISC, WHEEL

REAR WHEEL - center

1шт.

3

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

RIM BOLT - 5/8 UNF x 2-7/8"

8шт.

3

K611261

BOLT

s

8шт.

4

K19475

WASHER

- 5/8"

8шт.

5

425-1110

NUT,5/8"-18, G5

8шт.

K301023

RIM

REAR WHEEL ASSEMBLY - for 13.6/12-38 tires, Includes Ref. 1 - 5

2шт.

1

K301024

RIM

REAR WHEEL RIM - DW 12 x 38

1шт.

2

K301025

WHEEL

REAR WHEEL - center

1шт.

3

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

RIM BOLT - 5/8 UNF x 2-7/8"

8шт.

4

K19475

WASHER

- 5/8"

8шт.

5

425-1110

NUT,5/8"-18, G5

8шт.

K301034

WHEEL

REAR WHEEL ASSEMBLY - for 15.5-38 tires, Includes Ref. 1 - 5

2шт.

1

K301035

RIM

REAR WHEEL RIM - DW 14 x 38

6шт.

2

K301025

WHEEL

REAR WHEEL - center

1шт.

3

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

RIM BOLT - 5/8 UNF x 2-7/8"

8шт.

4

K19475

WASHER

- 5/8"

8шт.

5

425-1110

NUT,5/8"-18, G5

8шт.

UK1649

WEIGHT

UNIT - ballast, Includes Ref. 6 - 10

1шт.

6

K945830

WHEEL

BALLAST WEIGHT - 43.5 kg

4шт.

7

K601360

BOLT

- 5/8 UNC x 2-1/2"

6шт.

8

K611279

BOLT

- 5/8 UNC x 2-1/2"

6шт.

9

K19485

WASHER

- lock, 5/8"

12шт.

10

425-1110

NUT,5/8"-18, G5

6шт.

11

K617177

WHEEL NUT

- wheel

16шт.
