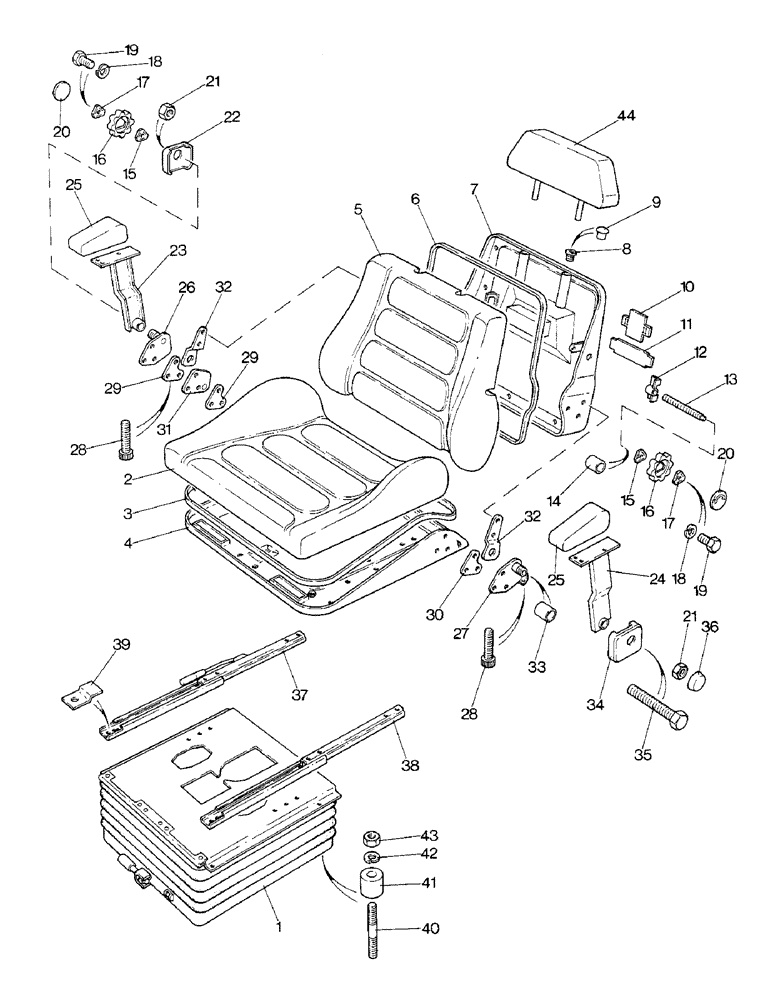

Запчасти Case IH 1690 (T09-1) - SEAT ASSEMBLY, DELUXE, HIGH PLATFORM (10) - OPERATORS PLATFORM/CAB

UK4219

SEAT

AND SUSPENSION ASSEMBLY - operator, Includes Ref. 1 - 40

1шт.

1

K302740

SUSPENSION

ASSEMBLY - seat, see figure T10

1шт.

K301472

SEAT

ASSEMBLY - operator, Includes Ref. 2 - 39

1шт.

2

K260624

SEAT

CUSHION - cloth (Grammer 112769)

1шт.

2

K260850

SEAT

CUSHION - vinyl

1шт.

3

K260625

SEAT

BEADING - cushion (Grammer 110436)

1шт.

4

K260621

SEAT

FRAME - cushion (Grammer 112766)

1шт.

5

K260627

BACKREST

- cloth (Grammer 112768)

1шт.

5

K260851

SEAT

BACKREST - vinyl

1шт.

6

K260628

BACKREST

BEADING - backrest (Grammer 110427)

1шт.

7

K260632

BACKREST

FRAME - backrest (Grammer 112081)

1шт.

8

K260631

BUSHING

- (Grammer 110917)

2шт.

9

K260630

PLUG

PLASTIC PLUG - (Grammer 105712)

2шт.

10

K260633

PLATE

- (Grammer 112207)

1шт.

11

K260634

SPRING

- (Grammer 112208)

1шт.

12

K260635

BRACKET

TENSION BRACKET - (Grammer 112209)

1шт.

13

K260636

SHAFT

- (Grammer 112106)

1шт.

14

K260637

BUSHING

- (Grammer 102594)

1шт.

15

K260613

PLATE

- inner (Grammer 105828)

2шт.

16

K260612

KNOB

- (Grammer 108176)

2шт.

17

K260611

PLATE

- outer (Grammer 105827)

2шт.

18

K651847

WASHER, LOCK

WASHER - lock, 6 MM

2шт.

19

K260610

SCREW

- M6 x 10 (Grammer 105831)

2шт.

20

K260609

SEAT

COVER - knob (Grammer 108820)

2шт.

21

K260614

BUSHING

NUT - M24 (Grammer 108481)

2шт.

22

K260615

COVER

- right-hand (Grammer 110455)

1шт.

23

K260616

BRACKET

SUPPORT - arm rest, right-hand (Grammer 11119)

1шт.

24

K260643

ARMREST

SUPPORT - arm rest, left-hand (Grammer 111267)

1шт.

25

K260620

ARM

REST - (Grammer 109487)

2шт.

26

K260617

PLATE

BACKPLATE - right-hand (Grammer 110458)

1шт.

27

K260623

SEAT

BACKPLATE - left-hand (Grammer 110476)

1шт.

28

K260629

SCREW

ADJUSTING SCREW - arm rest (Grammer 110467)

2шт.

29

K260618

PLATE

- right-hand (Grammer 110460)

2шт.

30

K260622

PLATE

- left-hand (Grammer 110459)

1шт.

31

K260619

PLATE

ADJUSTING PLATE - (Grammer 108479)

1шт.

32

K260649

BRACKET

- (Grammer 110475)

1шт.

33

K260650

PLATE

BUSHING - (Grammer 110873)

1шт.

34

K260645

COVER

- left-hand (Grammer 110479)

1шт.

35

K260646

SCREW

- M18 x 45 (Grammer 111038)

1шт.

36

K260647

COVER

PLASTIC CAP - (Grammer 112595)

1шт.

37

K964682

SEAT

RUNNER - right-hand (Grammer 107800)

1шт.

38

K260626

SEAT

RUNNER - left-hand (Grammer 113223)

1шт.

39

K260644

STOP

BRACKET - (Grammer 111562)

1шт.

40

K655110

STUD

- M8 x 50, seat to cab floor

4шт.

41

K304090

BUSHING

SPACER - seat to cab floor

4шт.

42

K651848

WASHER

- lock, 8 MM, seat to cab floor

4шт.

43

825-1108

NUT,Hex, M8, Cl 8

Seat to cab floor Hex, M8, Cl 8

4шт.

44

K965722

BACKREST

EXTENSION - seat bracket

1шт.
