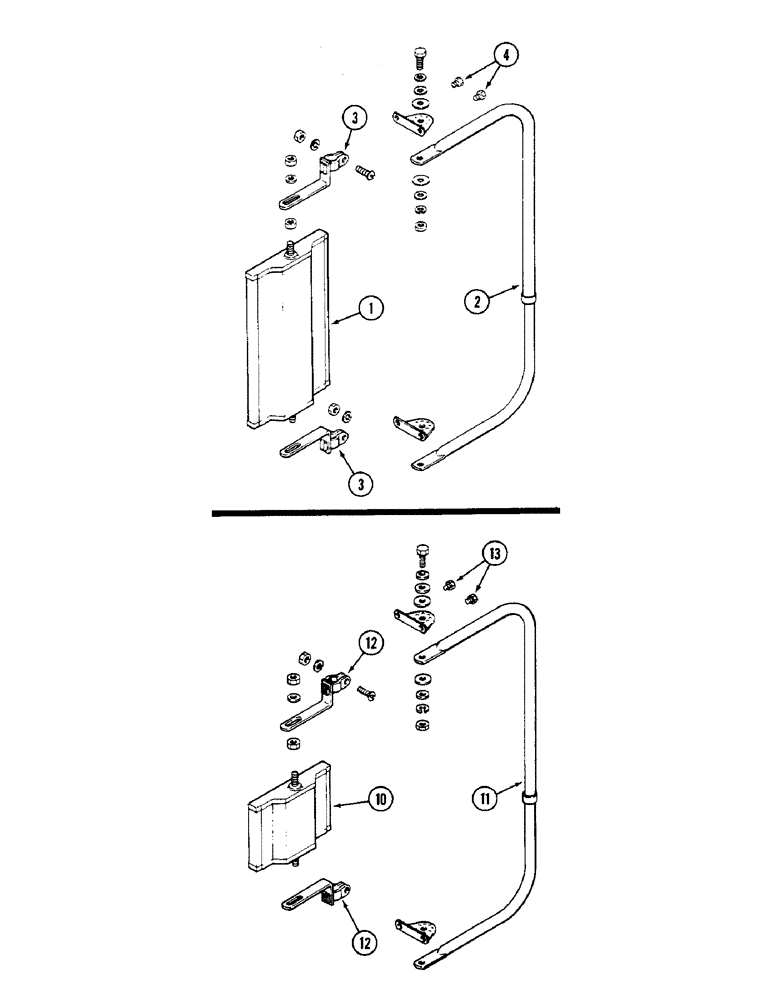

Запчасти Case IH 1690 (R01-1) - MIRRORS - DUAL VISION, TRACTORS WITH CAB (10) - OPERATORS PLATFORM/CAB

A61895

ATTACHMENT

- mirror (Machinery item), Includes Ref. 1 - 4

1шт.

1

A42765

MIRROR

- dual vision

1шт.

2

A42764

BRACKET

- mirror swingaway

1шт.

3

A42767

ADAPTER

- mirror bracket

2шт.

4

187-1021

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

SCREW - 1/4 x 3/8" hex, Shakeproof

4шт.

A61897

KIT

ATTACHMENT - mirror (Machinery item), 4 x 6 convex, Includes Ref. 10 -13

1шт.

10

A42768

MIRROR

- 4 x 6 convex

1шт.

11

A42764

BRACKET

- mirror swingaway, 4 x 6 convex

1шт.

12

A42767

ADAPTER

- mirror bracket, 4 x 6 convex

2шт.

13

187-1021

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

SCREW - 1/4 x 3/8" hex, Shakeproof, 4 x 6 convex

4шт.
