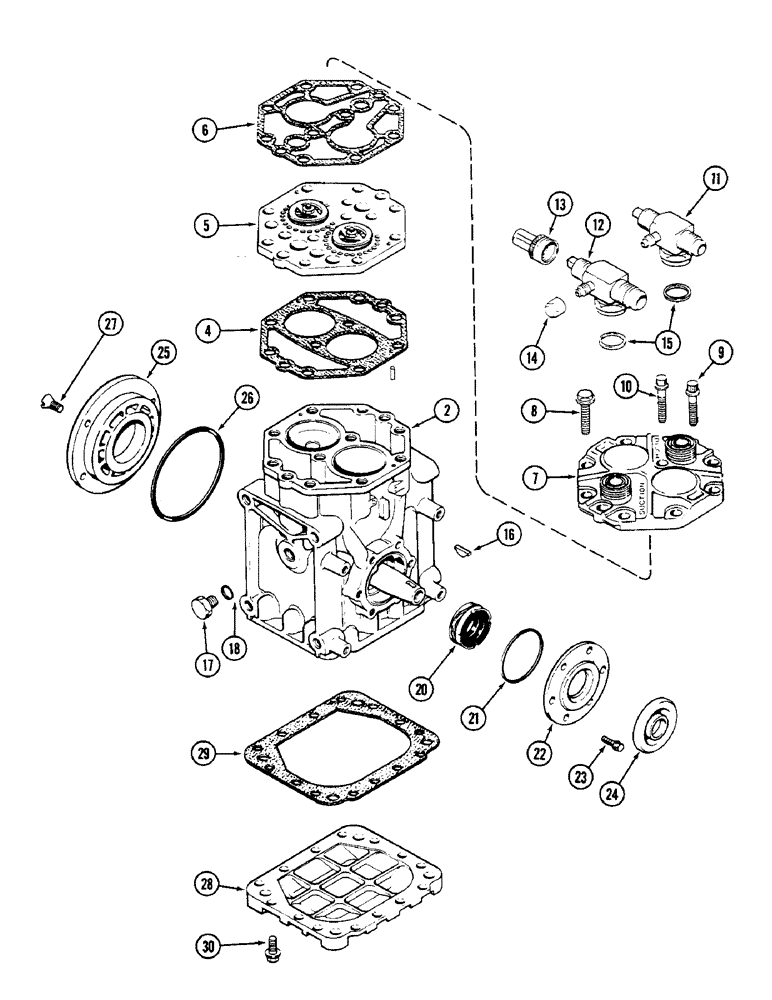

Запчасти Case IH 1690 (P18-1) - AIR CONDITIONER COMPRESSOR (10) - OPERATORS PLATFORM/CAB

A141039

X

COMPRESSOR ASSEMBLY - air (York #ER210L) For repairs order A141060

1шт.

A141060

COMPRESSOR

COMPRESSOR ASSEMBLY - air (York #ER210L), Includes Ref. 2 - 6

1шт.

417888C93

AIRCOND. COMPRESSOR

Compressor Assy., A/C

1шт.

1924004C2

REMAN-A/C COMPRESSOR

Reman For New P/N 417888C93

1шт.

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

CRANKCASE - compressor

1шт.

A45420

VALVE

PLATE KIT - valve

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET - valve, Serial Range: plate-crankcase

1шт.

Part of Gasket Kit, complete overhaul, P/N A42964

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - valve (Order A45420)

1шт.

6

NSS

NOT SOLD SEPARAT

GASKET - cylinder head to valve plate

1шт.

Part of Gasket Kit, complete overhaul, P/N A42964

1шт.

7

NSS

NOT SOLD SEPARAT

HEAD - cylinder

1шт.

8

A42949

FLANGE BOLT

BOLT - 5/16 x 1-3/8" NC hex washer head

8шт.

9

A42947

SCREW,5/16" - 18 x 1.375", Grade 6, Steel

SPARE PART SCREW - 5/16 x 1-3/8" NC Ferry head, 12 point cap

2шт.

10

A42948

12 PT SCREW,5/16" - 18 x 1.516", Gr 6

SCREW - 5/16 x 1-17/32" NC Ferry head, 12 point cap

2шт.

11

A42936

VALVE

VALVE ASSEMBLY - roto lock, discharge (1/2" port)

1шт.

12

A42937

VALVE

VALVE ASSEMBLY - roto lock, sutcion (5/8" port), Includes Ref. 13 and 14

1шт.

13

A42944

CAP

CAP - sleeve, valve stem

2шт.

14

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - valve stem

2шт.

15

A42938

GASKET

GASKET - roto lock to cylinder head

2шт.

16

A42939

KEY

KEY - crankshaft, #6 nonrok

1шт.

17

114-210

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5, Full Thd

BOLT - 3/8 x 1/2" NF hex, crankcase oil plug (Grade 5)

2шт.

18

NSS

NOT SOLD SEPARAT

O-RING - filter and level plug

2шт.

Part of Gasket Kit, complete overhaul, P/N A42964

1шт.

A42960

SEAL

SEAL KIT - front crankcase, Includes Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - crankcase

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of Gasket Kit, complete overhaul, P/N A42964

1шт.

22

NSS

NOT SOLD SEPARAT

PLATE - seal retaining

1шт.

23

A42961

CAPTIVE WASHER SCREW,Hex, #10 - 24 x 0.469", Full Thd

BOLT - #10-24 x 7/16" hex washer head

6шт.

24

A42965

CAP

CAP - dust, crankcase oil seal

1шт.

25

NSS

NOT SOLD SEPARAT

HOUSING - crankcase, rear

1шт.

26

NSS

NOT SOLD SEPARAT

GASKET - rear housing

1шт.

Part of Gasket Kit, complete overhaul, P/N A42964

1шт.

27

NSS

NOT SOLD SEPARAT

SCREW - rear, Serial Range: housing-crankcase

4шт.

28

NSS

NOT SOLD SEPARAT

PLATE - crankcase base

1шт.

29

NSS

NOT SOLD SEPARAT

GASKET - base plate

1шт.

Part of Gasket Kit, complete overhaul, P/N A42964

1шт.

30

NSS

NOT SOLD SEPARAT

BOLT - base, Serial Range: plate-crankcase

12шт.

A42964

GASKET

GASKET KIT - complete overhaul, Includes: Ref. 4, 6, 18, 21, 26 and 29

1шт.
