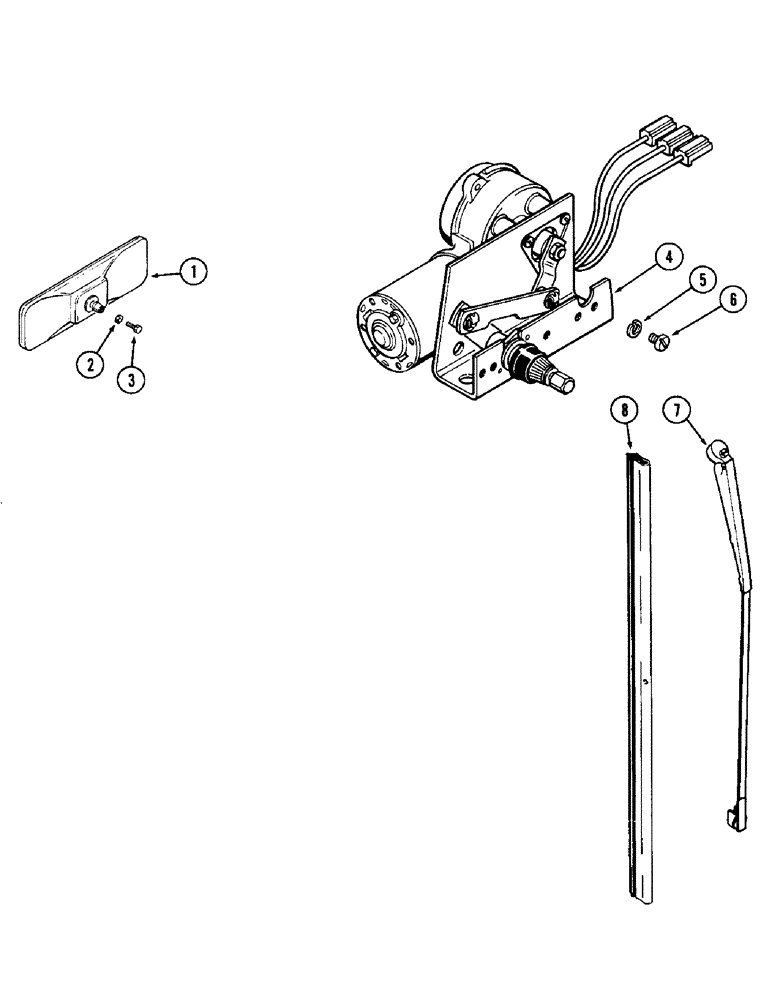

Запчасти Case IH 1690 (P17-1) - CAB, WIPERS AND MIRROR (10) - OPERATORS PLATFORM/CAB

1

L74714

MIRROR

- rear view (Sims A-600-1822)

1шт.

2

195-511

WASHER,#10

- flat (3/16") (Sims 60-000-96)

1шт.

3

163-18

SCREW,Hex, #10 - 24 x 3/8"

BOLT - hex head (#10-24 x 3/8") (Sims 18-24-03-06)

1шт.

4

F98108

WIPER

MOTOR - wiper (See figure P19-1) (Sims C-1700-1709)

1шт.

5

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, (Sims 60-200-95) 1/4"

2шт.

6

182-548

SCREW,Slotted Pan Hd, 1/4"-28 x 3/8"

- pan head slot (1/4-28 x 3/8") (Sims 25-28-03-66)

2шт.

7

F43789

ARM

- wiper (18") (Sims 600-1711)

1шт.

8

L35261

BLADE

- wiper (20") (Sims 600-457)

1шт.
