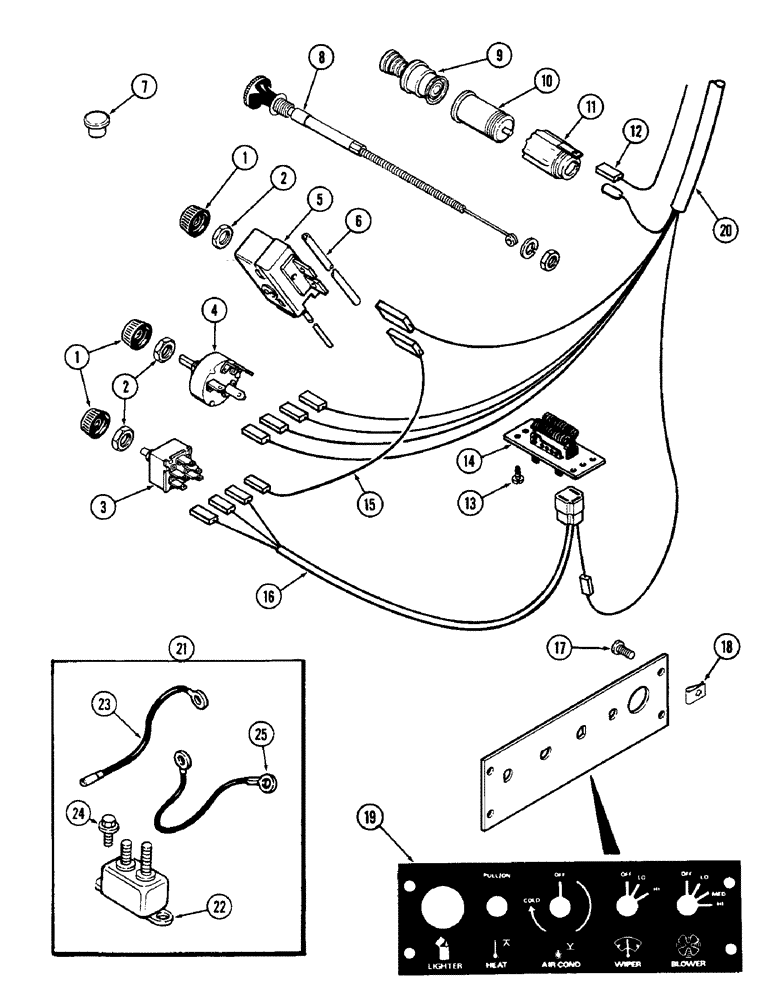

Запчасти Case IH 1690 (P14-1) - CAB, CONTROLS AND PANEL (10) - OPERATORS PLATFORM/CAB

1

A42578

KNOB

- switch (Sims A-600-1767)

3шт.

2

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- switch electrical (Sims A-600-1764)

3шт.

3

A42622

SWITCH

- blower (Sims A-600-1769)

1шт.

4

F43359

SWITCH

- wiper (Sims A-600-1787)

1шт.

5

L73646

SWITCH

- A/C thermal (A/C only) (Sims A-600-1786)

1шт.

6

F63719

TUBE

- thermal shield (A/C only) (Sims A-600-1840)

1шт.

7

353-402

PLUG,Dome, .375" hole, Nylon

(Heater only) (Sims 600-1073) Dome, .375" hole, Nylon

1шт.

8

A42614

CABLE

- control heater (Sims A-600-1768)

1шт.

9

A143340

SWITCH

LIGHTER - cigar assembly (Sims A-600-1779)

1шт.

10

F63530

SOCKET/RECEPTACLE

SOCKET ASSEMBLY - lighter (Sims A-600-1789)

1шт.

11

F63738

CIGAR LIGHTER

SHELL - clamping lighter (Sims A-600-1794)

1шт.

12

REF

INSTRUCTION

WIRE ASSEMBLY - lighter ground (See figure P15-1) (Sims A-1700-1721)

1шт.

13

187-331

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/4"

SCREW - pan head self tap (#10-16 x 3/4") (Sims 18-01-06-71)

1шт.

14

F44900

RESISTOR

- (Sims A-600-1788)

1шт.

15

A42624

ELECTRICAL WIRE

WIRE ASSEMBLY - blower to therm (A/C only) (Sims A-1700-1695)

1шт.

16

F64222

HARNESS

- blower (Sims A-1700-1699)

1шт.

17

182-541

SCREW,Cross Pan Hd, #10-24 x 3/4"

- pan head slot (#10-24 x 3/4") (Sims 18-24-06-66) Prior to serial number 17402-1

4шт.

Also include serial numbers 17408-1, 17412-1, 17413-1, 17417-1,17420-1 through 17423-1, 17425-1, 17427-1, 17430-1, 17433-1, 17439-1, 17443-1 through 17445-1, and 17450-1.

1шт.

17

187-1623

SCREW - flat head slot (#10-24 x 3/4") (Sims 18-24-06-64) Serial number 17402-1 and after

4шт.

18

131-861

SPRING NUT,Tinn, U, #10-24

(Sims A-600-1853) Tinn, U, #10-24

4шт.

19

F63875

PANEL

- instrument (Sims A-600-1799) Prior to serial number 17402-1

1шт.

Also include serial numbers 17408-1, 17412-1, 17413-1, 17417-1,17420-1 through 17423-1, 17425-1, 17427-1, 17430-1, 17433-1, 17439-1, 17443-1 through 17445-1, and 17450-1.

1шт.

19

F63503

COVER

PANEL - instrument (Sims A-600-1918) Serial number 17402-1 and after

1шт.

20

REF

INSTRUCTION

HARNESS - wiring cab (See figure P15-1) (Sims D-1700-1685)

1шт.

21

REF

INSTRUCTION

KIT - retrofit circuit breaker (Sims A-1700-1765), Includes Ref. 22 - 25

1шт.

22

A164489

BREAKER

- circuit (50 amp) (Sims A-600-1937)

1шт.

23

A167407

ELECTRICAL WIRE

WIRE ASSEMBLY - pigtail (Sims A-1700-1764)

1шт.

24

187-1621

SCREW - hex head self tap (#10 x 1/2") (Sims 18-02-04-72)

2шт.

25

A167408

ELECTRICAL WIRE

JUMPER WIRE - solenoid to breaker (Sims A-1700-1796)

1шт.
