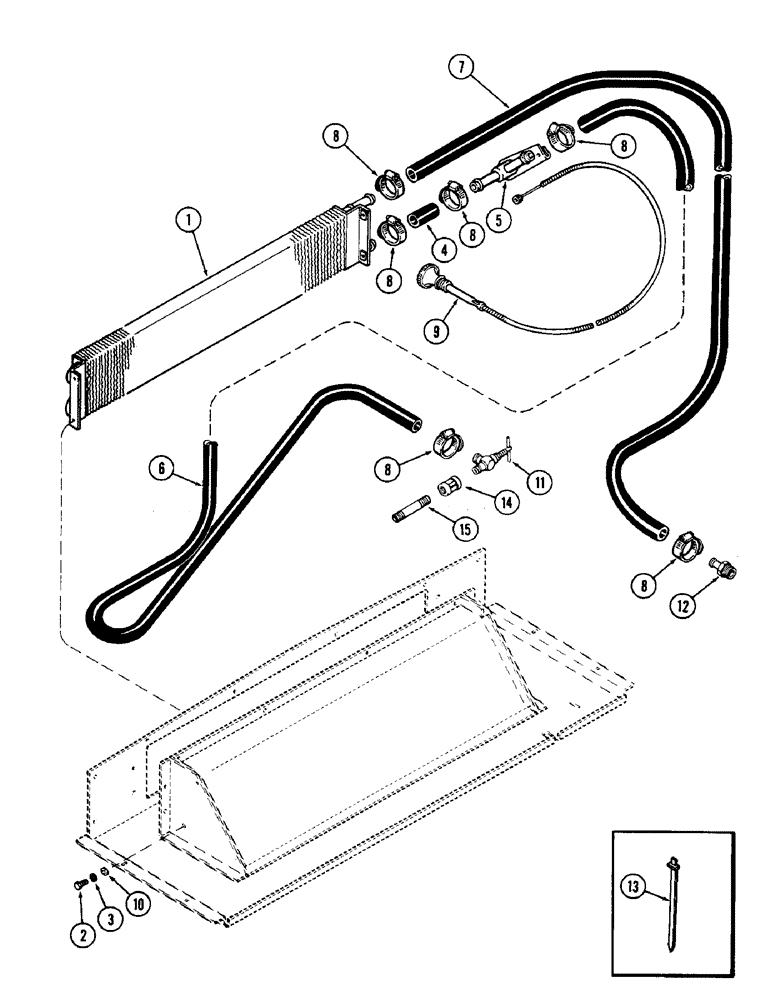

Запчасти Case IH 1690 (P12-1) - CAB, HEATER (10) - OPERATORS PLATFORM/CAB

1

F63680

CORE

- heater (Sims A-600-1792)

1шт.

2

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(Sims 25-20-04-06) Hex, 1/4"-20 x 1/2", G5, Full Thd

4шт.

3

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, (Sims 60-200-95) 1/4"

4шт.

4

F64008

HEATER HOSE,51.00 mm

Heater Outlet to Valve (Sims A-600-1826) 51.00 mm

1шт.

5

F63865

VALVE

- heater (Sims A-600-1797)

1шт.

6

A24610

HOSE - heater outlet (5/8 ID x 168") (Sims A-600-1827), Serial Range: (Cut-length)

1шт.

7

A24610

HOSE - heater inlet (5/8 ID x 168") (Sims A-600-1828), Serial Range: (Cut-length)

1шт.

8

214-252

HOSE CLAMP,#08, 0.5" - 0.91", Type F Worm

CLAMP - hose adjustable (Sims 600-1358)

6шт.

9

A42614

CABLE

- control heater (See figure P14-1) (Sims A-600-1768)

1шт.

10

195-518

WASHER,1/4", SAE

- flat (1/4") (Sims 60-100-96)

4шт.

11

REF

INSTRUCTION

VALVE - shut-off (Sims 600-848)

1шт.

12

A24610

HOSE ADAPTER - (Sims 600-845), Serial Range: (Cut-length)

2шт.

13

L18331

CABLE TIE,375.9mm L, Nylon, Black

WIRE TIES - nylon (Sims 600-851)

3шт.

14

221-328

X

COUPLING - pipe, malleable 3/8" (Sims A-600-1909)

1шт.

15

221-166

NIPPLE - pipe (3/8-18 x 3") (Sims A-600-1908) Nipple, 3/8" NPT x 3"

1шт.
