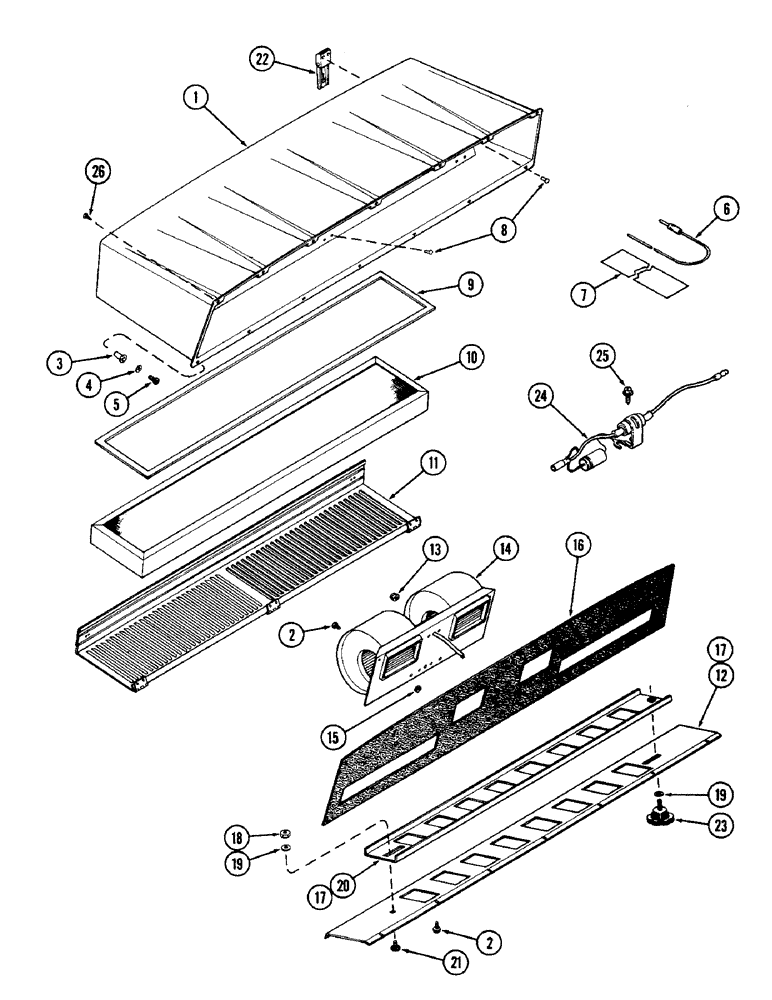

Запчасти Case IH 1690 (P10-1) - CAB, AIR FILTER AND BLOWER (10) - OPERATORS PLATFORM/CAB
№
Артикул
Название
Примечание
Количество
1
F64058
FILTER
HOUSING - blower and filter (Sims A-600-1801)
1шт.
2
187-1088
SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"
SCREW - hex washer head self tap (#10 x 1/2") (Sims 18-02-04-72)
17шт.
3
F64374
NUT
PLUG NUT - (#10-32) (Sims A-600-1847)
7шт.
4
195-513
WASHER,#10
- flat (3/16") (Sims 60-000-96)
7шт.
5
182-557
SCREW,Cross Pan Hd, #10-32 x 3/4"
- pan head slot (#10-32 x 3/4") (Sims 18-32-06-66)
7шт.
6
F64182
CABLE
- aerial (Sims A-600-1808)
1шт.
7
F64186
TAPE
- aerial (Sims A-600-1810)
1шт.
8
151-547
RIVET - pop (1/8") (Sims A-600-1855)
10шт.
9
F63669
SEAL
- filter (Sims A-1500-1184)
1шт.
10
F64318
AIR FILTER
FILTER - (Sims A-600-1817)
1шт.
11
F89926
COVER
ASSEMBLY - filter (Sims A-1700-1700)
1шт.
12
A167398
PLATE
- air circulating (Sims B-1400-9477)
1шт.
13
86625061
NUT,1/4"-20, GB
NUT - lock nylon insert (1/4-20) (Sims 60-300-40)
2шт.
14
A167399
BLOWER
ASSEMBLY - (Sims A-600-1830)
1шт.
15
A167400
GROMMET
- (3/8" hole) (See page P15-1) (Sims 600-1083)
1шт.
16
F63592
SEAL
- housing (Sims A-1500-1182)
1шт.
17
B17459
SPARE PART
PAINT - black low gloss (Sims 600-1122)
1шт.
18
131-203
LOCK NUT,3/8"-16, GB, LH
NUT - lock nylon insert (3/8-16) (Sims 60-302-40)
1шт.
19
195-525
WASHER,3/8", SAE
- flat (3/8") (Sims 60-102-96)
2шт.
20
A167401
DOOR
AIR DOOR ASSEMBLY - welded (Sims A-1300-1600)
1шт.
21
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
(Sims 38-26-06-06) Hex, 3/8"-16 x 3/4", G5, Full Thd
1шт.
22
F64066
LATCH
- filter cover (Sims A-600-1803)
2шт.
23
REF
INSTRUCTION
KNOB - window holdout (Sims 600-156) (See figure P4)
1шт.
24
F64184
CAPACITOR
ASSEMBLY - noise (Sims A-600-1832)
1шт.
25
187-1088
SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"
SCREW - special (#10-16 x 1/2") (Sims 18-02-04-72)
1шт.
26
187-1084
SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"
SCREW - hex washer head self tap (#10 x 3/4") (Sims 18-02-06-72)
7шт.
A167431
MOTOR
- blower
2шт.
Выбрано товаров: 27
