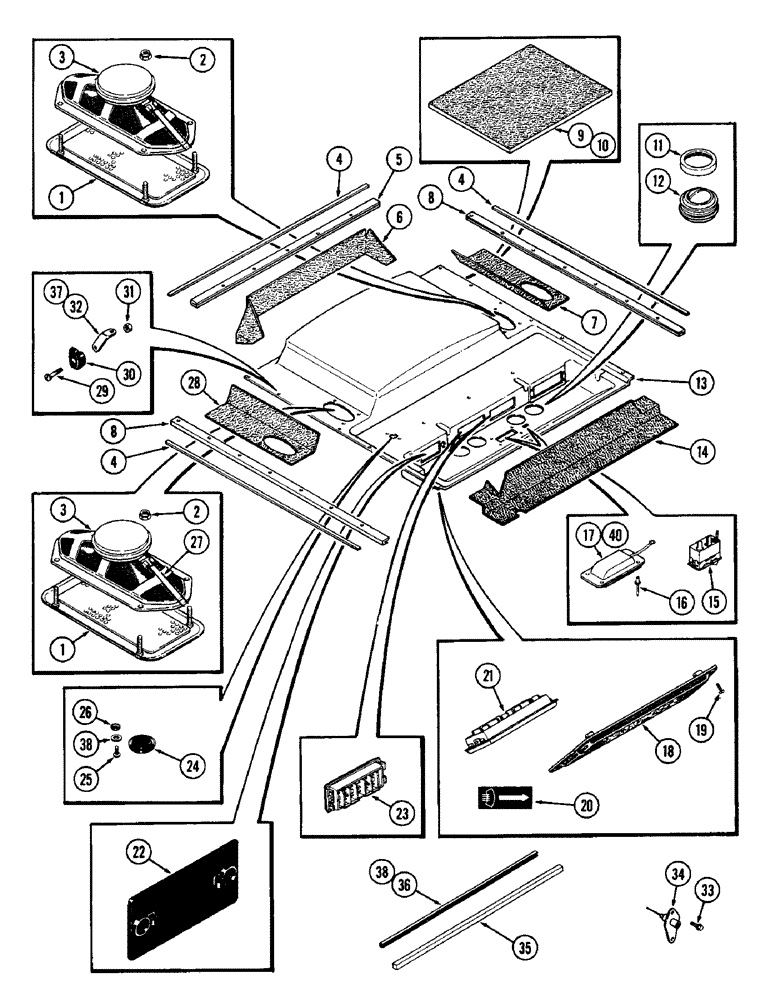

Запчасти Case IH 1690 (P09-1) - CAB, HEADLINER, LOUVERS AND SPEAKERS (10) - OPERATORS PLATFORM/CAB

1

F63593

GUARD

GRILL - speaker radio (Sims A-600-1790) Prior to serial number 17402-1

2шт.

Also include serial numbers 17408-1, 17412-1, 17413-1, 17417-1,17420-1 through 17423-1, 17425-1, 17427-1, 17430-1, 17433-1, 17439-1, 17443-1 through 17445-1, and 17450-1.

1шт.

1

F64497

GUARD

GRILL - speaker radio (Sims A-600-1919) Serial number 17402-1 and after

2шт.

2

131-29

LOCK NUT,#8-32, GB

NUT - lock nylon insert (#8-32) (Sims 60-313-40)

8шт.

3

F63595

SPEAKER

- radio (Sims A-600-1791) Prior to serial number 17402-1

2шт.

Also include serial numbers 17408-1, 17412-1, 17413-1, 17417-1,17420-1 through 17423-1, 17425-1, 17427-1, 17430-1, 17433-1, 17439-1, 17443-1 through 17445-1, and 17450-1.

1шт.

3

F64496

SPEAKER

- radio (Sims A-600-1921) Serial number 17402-1 and after

2шт.

4

F64249

PIN

SEAL - 1/16 x 1 x 44" (1.588 x 25.4 x 1117.6 MM) Prior to serial number 17402-1 (See note)

3шт.

Also include serial numbers 17408-1, 17412-1, 17413-1, 17417-1,17420-1 through 17423-1, 17425-1, 17427-1, 17430-1, 17433-1, 17439-1, 17443-1 through 17445-1, and 17450-1.

1шт.

5

F63799

MOLDING

TRIM - headliner rear (Sims A-600-1796) Prior to serial number 17402-1

1шт.

Also include serial numbers 17408-1, 17412-1, 17413-1, 17417-1,17420-1 through 17423-1, 17425-1, 17427-1, 17430-1, 17433-1, 17439-1, 17443-1 through 17445-1, and 17450-1.

1шт.

6

F64248

PAD

- damping rear (Sims A-600-1814) Prior to serial number 17402-1

1шт.

Also include serial numbers 17408-1, 17412-1, 17413-1, 17417-1,17420-1 through 17423-1, 17425-1, 17427-1, 17430-1, 17433-1, 17439-1, 17443-1 through 17445-1, and 17450-1.

1шт.

7

F64245

PAD

- damping LH (Sims A-600-1812) Prior to serial number 17402-1

1шт.

Also include serial numbers 17408-1, 17412-1, 17413-1, 17417-1,17420-1 through 17423-1, 17425-1, 17427-1, 17430-1, 17433-1, 17439-1, 17443-1 through 17445-1, and 17450-1.

1шт.

8

F63800

MOLDING

TRIM - headliner side (Sims A-600-1796) Prior to serial number 17402-1

2шт.

Also include serial numbers 17408-1, 17412-1, 17413-1, 17417-1,17420-1 through 17423-1, 17425-1, 17427-1, 17430-1, 17433-1, 17439-1, 17443-1 through 17445-1, and 17450-1.

1шт.

9

F64434

COVER

PAD - headliner (Sims A-1500-1187)

1шт.

10

345-44

ADHESIVE

- (Sims 600-1056)

1шт.

11

F64131

RING

- retaining (Sims A-600-1806)

4шт.

12

F64132

GUARD

LOUVER - ball (Sims A-600-1807)

4шт.

13

F64244

LINING

HEADLINER - cab radio (Sims A-600-1811) Prior to serial number 17402-1

1шт.

Also include serial numbers 17408-1, 17412-1, 17413-1, 17417-1,17420-1 through 17423-1, 17425-1, 17427-1, 17430-1, 17433-1, 17439-1, 17443-1 through 17445-1, and 17450-1.

1шт.

13

F64388

LINING

HEADLINER - cab radio (Sims B-1700-1773) Serial number 17402-1 and after, with additional 1/2" (12.7 MM) Diameter hole

1шт.

14

F64477

PAD

- damping front (Sims A-600-1820) Prior to serial number 17402-1

1шт.

Also include serial numbers 17408-1, 17412-1, 17413-1, 17417-1,17420-1 through 17423-1, 17425-1, 17427-1, 17430-1, 17433-1, 17439-1, 17443-1 through 17445-1, and 17450-1.

1шт.

15

F64130

SWITCH

- dome light (Rocker) (Sims A-600-1805)

1шт.

16

151-526

RIVET,Pop, 1/8" x .337"

(Sims A-600-1855) Prior to S/N 17402-1 Pop, 1/8" x .337"

3шт.

Also include serial numbers 17408-1, 17412-1, 17413-1, 17417-1,17420-1 through 17423-1, 17425-1, 17427-1, 17430-1, 17433-1, 17439-1, 17443-1 through 17445-1, and 17450-1.

1шт.

17

F89772

LAMP

- dome (Sims A-600-1823) Prior to serial number 17402-1

1шт.

Also include serial numbers 17408-1, 17412-1, 17413-1, 17417-1,17420-1 through 17423-1, 17425-1, 17427-1, 17430-1, 17433-1, 17439-1, 17443-1 through 17445-1, and 17450-1.

1шт.

17

F64310

LAMP

- dome (Sims A-600-1917) Serial number 17402-1 and after

1шт.

18

F64386

COVER

- radio rear (Sims A-600-1818)

1шт.

19

187-1095

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

SCREW - pan head Phillips (#8 x 1/2) (Sims 16-01-04-70)

4шт.

20

321-3842

DECAL

- defroster (Sims A-600-1831)

1шт.

21

F98149

GUARD

LOUVER AND BEZEL - (Sims A-600-1825)

1шт.

22

F64278

COVER

- radio cutout (Sims A-600-1815)

1шт.

23

F89948

GUARD

LOUVER AND BEZEL - (Sims A-600-1824)

2шт.

25

187-1099

SELF-TAP SCREW,Cross Oval Hd, #10 x 1 1/4"

SCREW - special (#10-16 x 1") (Sims 600-1747)

24шт.

24

A167397

BUTTON - plug (1-5/8" diameter hole) (Sims A-600-1854)

1шт.

26

F43576

WASHER

- countersunk nylon (#10) (Sims 1700-0832)

24шт.

27

F64727

HARNESS

CABLE - speaker lead (Sims A-1700-1707)

1шт.

28

F64246

PAD

- damping RH (Sims A-600-1813) Prior to serial number 17402-1

1шт.

Also include serial numbers 17408-1, 17412-1, 17413-1, 17417-1,17420-1 through 17423-1, 17425-1, 17427-1, 17430-1, 17433-1, 17439-1, 17443-1 through 17445-1, and 17450-1.

1шт.

29

182-534

SCREW,Sl Pan Hd, 1/4" - 20 x 1"

- pan head slot (1/4-20 x 1") (Sims 25-20-08-66)

1шт.

30

F64352

HOOK

- coat (Sims A-600-1846)

1шт.

31

86625061

NUT,1/4"-20, GB

NUT - lock nylon insert (1/4-20) (Sims 60-300-40)

1шт.

32

F64355

BRACKET

- coat hook (Sims A-1400-9593)

1шт.

33

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex washer head self tap (#10 x 1/2) (Sims 18-02-04-72)

2шт.

34

F64183

CABLE

- antenna (Sims 600-1809)

1шт.

35

REF

INSTRUCTION

SEAL STRIP - 1 x 1 x 44-1/2" (25.4 x 25.4 x 1130.3 MM) (Sims 932-0444)

1шт.

36

F64277

SEAL

WINDLACE - 44" (1117.6 MM) (Sims 903-0440)

1шт.

37

B17459

SPARE PART

PAINT - black low gloss (Sims 600-1122)

1шт.

38

F64277

SEAL

TRIM - window, 50' (15.24 M) roll, Serial Range: (Cut-length)

1шт.

39

REF

INSTRUCTION

WASHER - special (Sims A-600-1980)

19шт.

40

B50217

BULB

- lamp (Sims A-600-1823-51) Prior to serial number 17402-1

1шт.

Also include serial numbers 17408-1, 17412-1, 17413-1, 17417-1,17420-1 through 17423-1, 17425-1, 17427-1, 17430-1, 17433-1, 17439-1, 17443-1 through 17445-1, and 17450-1.

1шт.

40

F64364

BULB,12V

- lamp milky lens (Sims A-600-1917-52) Serial number 17402-1 and after

1шт.
