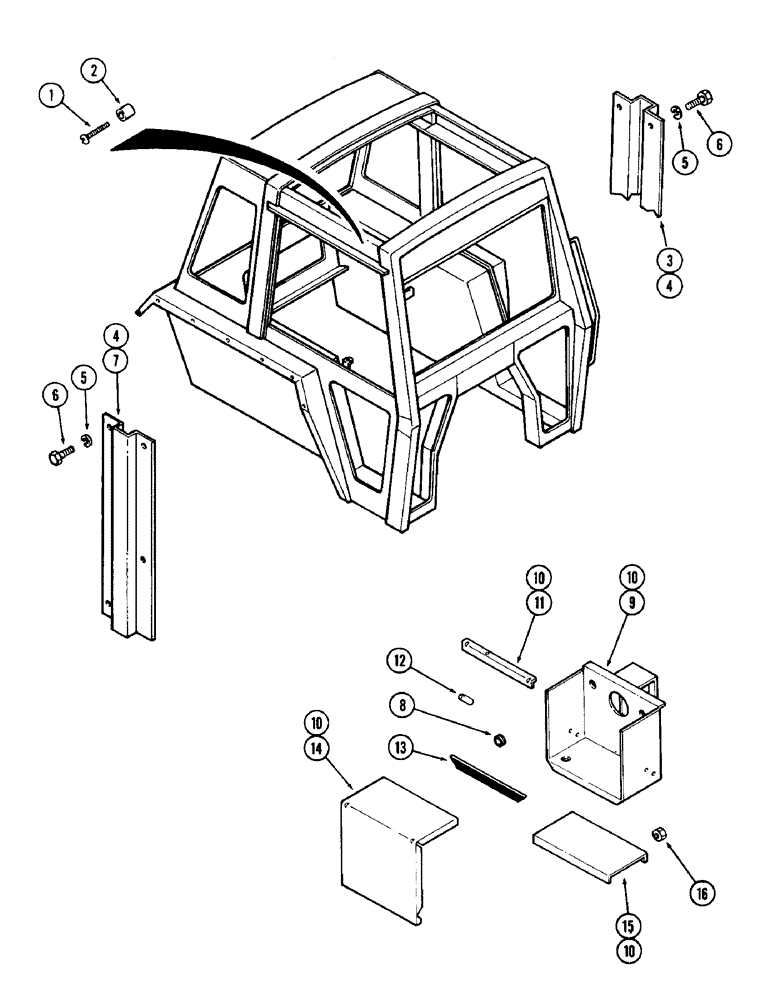

Запчасти Case IH 1690 (P08-1) - CAB, BATTERY HOLDER (10) - OPERATORS PLATFORM/CAB

1

187-1752

SCREW - pan head self tap (1/4-20 x 1-1/2") (Sims 25-02-12-71) Prior to serial number 18127-1

3шт.

2

REF

INSTRUCTION

SPACER - plexiglass (15/16" long) (Sims A-1700-1724) Prior to serial number 18127-1 (See page P1)

3шт.

3

REF

INSTRUCTION

CHANNEL - LH wire (Sims B-1400-9589) (See figure P1)

1шт.

4

B17410

PAINT

- power white (Sims 600-1143)

1шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Sims 60-202-95) 3/8"

4шт.

6

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(Sims 38-16-06-06) Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

7

REF

INSTRUCTION

CHANNEL - RH wire (Sims B-1400-9590) (See figure P1)

1шт.

8

A167390

GROMMET

- plastic (1-1/16" dia. hole) (A/C only) (Sims 600-1544) Prior to serial number 18032-1

2шт.

8

A167391

GROMMET

- rubber (A/C only) (Sims A-600-1977) Serial number 18032-1 and after

2шт.

9

A167392

BATTERY BOX

ASSEMBLY - welded (A/C only) (Sims C-1300-1621A)

1шт.

10

B17166

PAINT

- power red (Sims 600-1131)

1шт.

11

A167393

NOZZLE HOLDER

HOLDDOWN - battery (A/C only) (Sims B-1400-9634)

1шт.

12

A167394

SPACER

- plexiglass (1-5/16" long) (A/C only) (Sims A-1700-1729)

2шт.

13

F64119

SEALING STRIP

SEAL - cover (A/C only) (Sims A-1500-2099), Serial Range: (Cut-length)

1шт.

14

A167395

COVER

ASSEMBLY - (A/C only) (Sims C-1400-9635) Serial number 16301-1 and after

1шт.

15

A167396

RISER - battery box (A/C only) (Sims B-1400-9735)

1шт.

16

825-1106

NUT,Hex, M6, Cl 8

- hex, M6 x 1 (A/C only) (Sims 60-302-113)

2шт.
