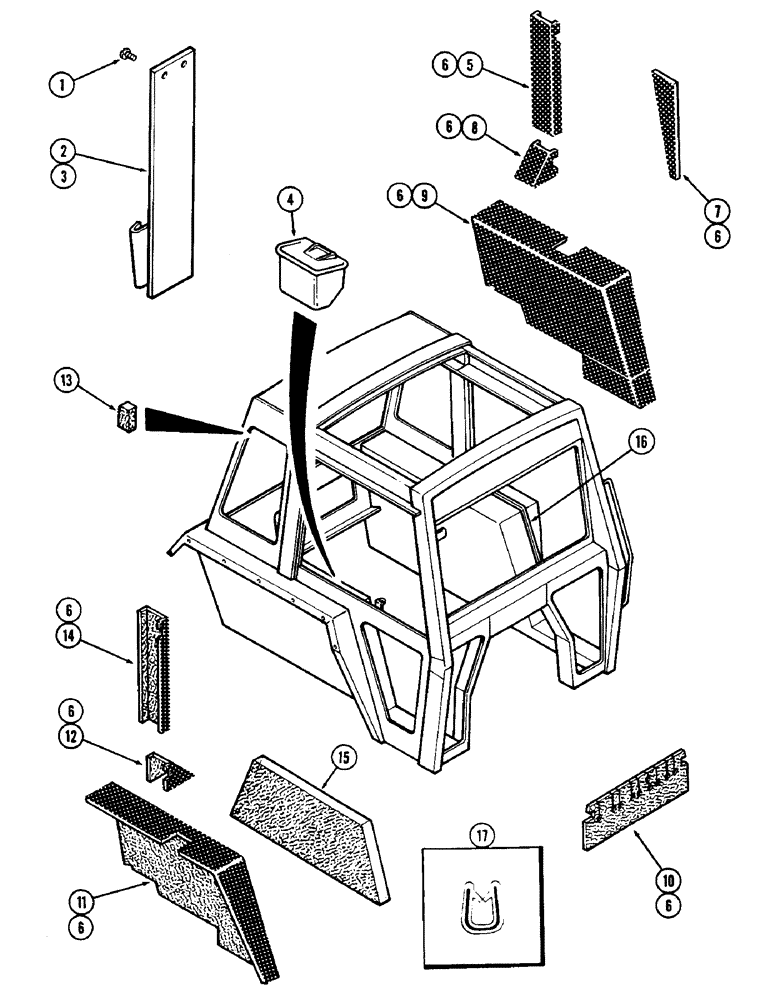

Запчасти Case IH 1690 (P07-1) - CAB, ACOUSTICAL COVERS (10) - OPERATORS PLATFORM/CAB

1

187-1746

SCREW

- pan head self tap (1/4-20 x 1/2) (Sims 25-20-04-70)

2шт.

2

A162667

BRACKET

SMV BRACKET - assembly, welded (Sims A-1300-1606)

1шт.

3

B17459

SPARE PART

PAINT - black low gloss (Sims 600-1122)

1шт.

4

D83138

ASH TRAY

(Sims 600-1579)

1шт.

5

A167380

COVER - tube LH (Sims B-1500-2088)

1шт.

6

345-44

ADHESIVE

- (Sims 600-1056)

1шт.

7

A167381

COVER - lower side (Sims B-1500-2087)

1шт.

8

A167382

COVER - gusset LH (Sims B-1500-2090)

1шт.

9

A167383

COVER

- fender well LH (Sims B-1700-1713)

1шт.

10

A167384

FOAM

- accoustic (Sims B-1500-2117)

1шт.

11

A167385

COVER

- fender well RH (SIms B-1700-1714)

1шт.

12

A167386

COVER

- gusset RH (Sims B-1500-2091)

1шт.

13

A167387

SEAL STRIP - (5/8 x 5/8 x 1-1/2) (Sims 948-0014)

2шт.

14

A167388

COVER - tube RH (Sims B-1500-2089)

1шт.

15

A167389

BATT - fiberglass (Sims B-1500-2177)

4шт.

16

F64277

SEAL

WINDLACE - lower rear door opening, Serial Range: (Cut-length)

1шт.

17

F64277

SEAL

TRIM - window, 50' (15.24M) roll, Serial Range: (Cut-length)

1шт.
