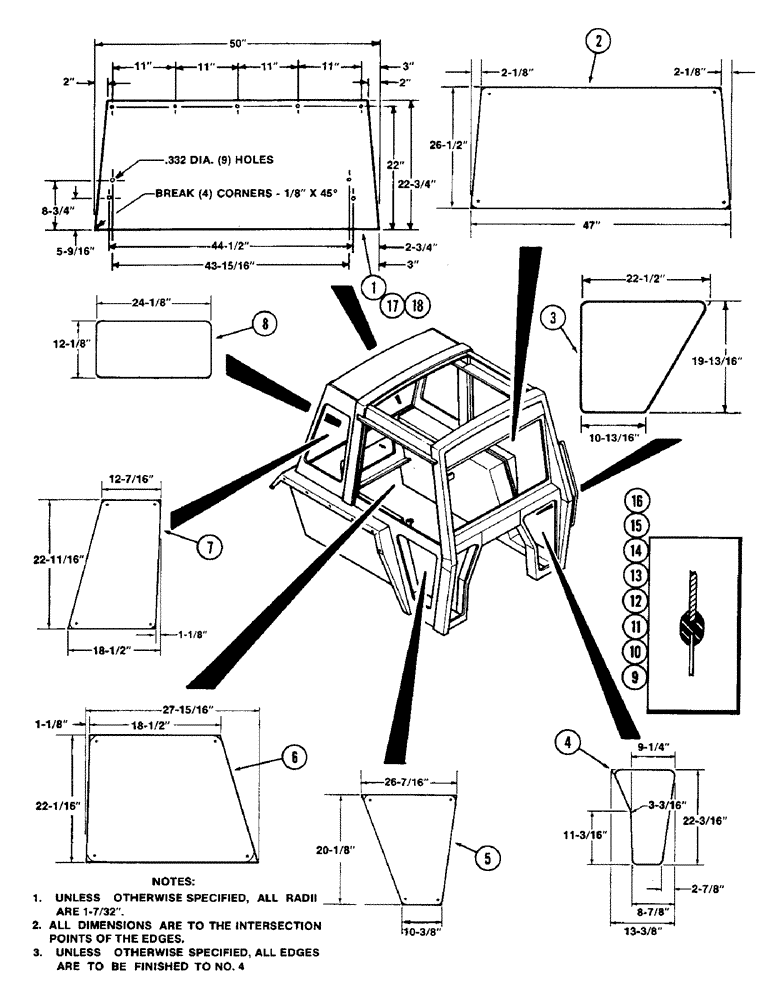

Запчасти Case IH 1690 (P06-1) - CAB, GLASS (10) - OPERATORS PLATFORM/CAB

1

REF

INSTRUCTION

GLASS - rear window (Sims C-1100-0414B)

1шт.

2

REF

INSTRUCTION

GLASS - windshield (Sims C-1100-0414A)

1шт.

3

REF

INSTRUCTION

GLASS - lower door (Sims C-1100-0414M)

1шт.

4

REF

INSTRUCTION

GLASS - cowl (Sims C-1100-0414D)

2шт.

5

REF

INSTRUCTION

GLASS - lower RH side (Sims C-1100-0414G)

1шт.

6

REF

INSTRUCTION

GLASS - upper door (Sims C-1100-0414E)

2шт.

7

REF

INSTRUCTION

GLASS - side panel (Sims C-1100-0414K)

2шт.

8

REF

INSTRUCTION

GLASS - lower rear (Sims C-1100-0414J)

1шт.

9

A42677

MOLDING

GASKET - glass windshield (142") (Sims 944-1420)

1шт.

10

A42677

MOLDING

GASKET - glass lower door (76") (Sims 944-0760)

1шт.

11

A42677

MOLDING

GASKET - glass cowl (65") (Sims 944-0650)

2шт.

12

A42677

MOLDING

GASKET - glass lower RH (82") (Sims 944-0820)

1шт.

13

A42677

MOLDING

GASKET - glass upper door (108") (Sims 944-1080)

2шт.

14

A42677

MOLDING

GASKET - glass - side panel (75") (Sims 944-0750)

2шт.

15

A42677

MOLDING

GASKET - glass lower rear (72") (Sims 944-0720)

1шт.

16

A42677

MOLDING

- glass, 50' roll, Serial Range: (Cut-length)

1шт.

17

REF

INSTRUCTION

GLASS - rear window with logo, Sims C-1100-0414L

1шт.

Same as reference 1, except with logo

1шт.

18

REF

INSTRUCTION

GLASS - rear window with logo, Sims C-1100-0415, Serial number 18157-1 and after

1шт.

Same as reference 17, except for holes for rear wiper

1шт.
