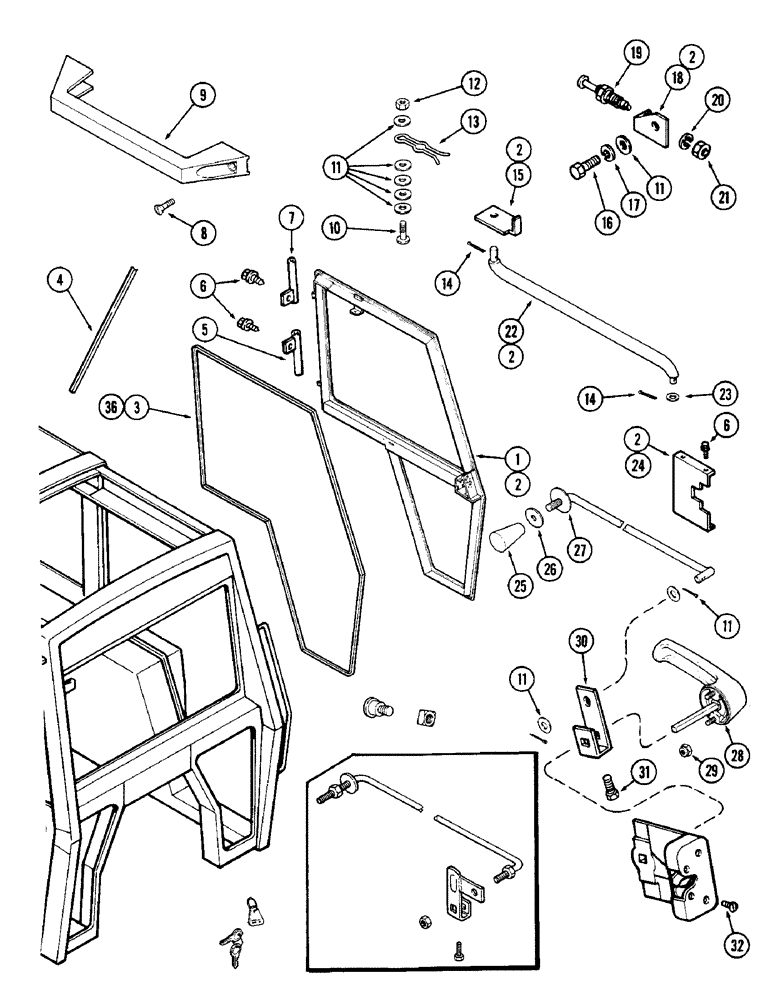

Запчасти Case IH 1690 (P05-1) - CAB, DOOR AND LATCH (10) - OPERATORS PLATFORM/CAB

1

A167368

DOOR ASSEMBLY - welded LH (Sims D-1300-1595)

1шт.

2

B17410

PAINT

- power white (Sims 600-1143)

1шт.

3

F64775

SEAL

- LH door, 172" (4368.8 MM) (Sims 9119-1720)

1шт.

4

F64403

SEAL

- door rear, 27" (685-8 MM) (Sims 9105-1270), Serial Range: (Cut-length)

1шт.

5

REF

INSTRUCTION

PIN - hinge lower (Sims A-1300-1598) (See page P4)

1шт.

6

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex washer head self tap (#10 x 1/2) (Sims 18-02-04-72)

6шт.

7

REF

INSTRUCTION

PIN - hinge upper (Sims A-1300-1609) (See figure P4)

1шт.

8

179-157

SCREW,Cross Oval Hd, 1/4" - 20 x 3/4"

- flat head Phillips (1/4-20 x 3/4) (Sims 25-20-06-63)

2шт.

9

F64344

HANDLE

- inner door (Sims A-600-1844)

1шт.

10

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

(Sims 25-20-10-06) Hex, 1/4"-20 x 1 1/4", G5

1шт.

11

195-518

WASHER,1/4", SAE

- flat, 1/4" (6.35 mm) (Sims 60-100-96)

8шт.

12

86625061

NUT,1/4"-20, GB

NUT - lock nylon insert (1/4-20) (Sims 60-300-40)

1шт.

13

F64470

COTTER PIN

HAIR PIN - rod lock (Sims A-600-1841)

1шт.

14

132-331

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), (Sims 60-400-12) 3/32" x 5/8"

2шт.

15

A167369

STRIKER - switch (Sims A-1400-9588) Prior to serial number 16115-1

1шт.

15

A167370

PLATE

STRIKER - switch (Sims A-1400-9588A) Serial number 16115-1 through serial number 16300-1

1шт.

15

A167371

STRIKER - switch (Sims A-1400-9588B) Serial number 16300-1 and after

1шт.

16

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(Sims 25-20-04-06) Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, (Sims 60-200-95) 1/4"

1шт.

18

A167372

BRACKET

ASSEMBLY - welded switch (Sims A-1300-1605) Prior to serial number 16115-1

1шт.

18

A167373

BRACKET

ASSEMBLY - welded switch (Sims A-1300-1605A) Serial number 16115-1 and after

1шт.

19

F63895

SWITCH

- dome light door (Sims A-600-1800)

1шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, (Sims 60-201-95) 5/16"

1шт.

21

129-578

NUT,5/16"-18, G5

- hex (5/16-18) (Sims 60-301-43)

1шт.

22

F64406

ROD

ARM - door holdout assembly (Sims A-1300-1620)

1шт.

23

195-525

WASHER,3/8", SAE

- flat, 3/8" (9.525 MM) (Sims 60-102-96)

1шт.

24

A167374

COVER

- latch (Sims C-1400-9479)

1шт.

25

F64341

KNOB

- latch rod (Sims A-600-1843)

1шт.

26

F64340

WASHER

- shoulder nylon (Sims A-600-1852)

1шт.

27

F98226

ROD

ASSEMBLY - welded latch (Sims B-1300-1599) Prior to serial number 18032-1 (Order ref 39)

1шт.

28

F64346

HANDLE

- outer door (Sims A-600-1845)

1шт.

29

86625057

NUT,#10-24, GB

NUT, LOCK, (Sims 60-310-40) #10-24, GB

2шт.

30

A167375

X

ARM - link latch (Sims 1700-0897) Prior to serial number 18032-1 (Order ref 39)

1шт.

31

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(Sims 600-1534) Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

32

182-534

SCREW,Sl Pan Hd, 1/4" - 20 x 1"

- pan head slot (1/4-20 x 1) (Sims 25-20-08-66)

4шт.
