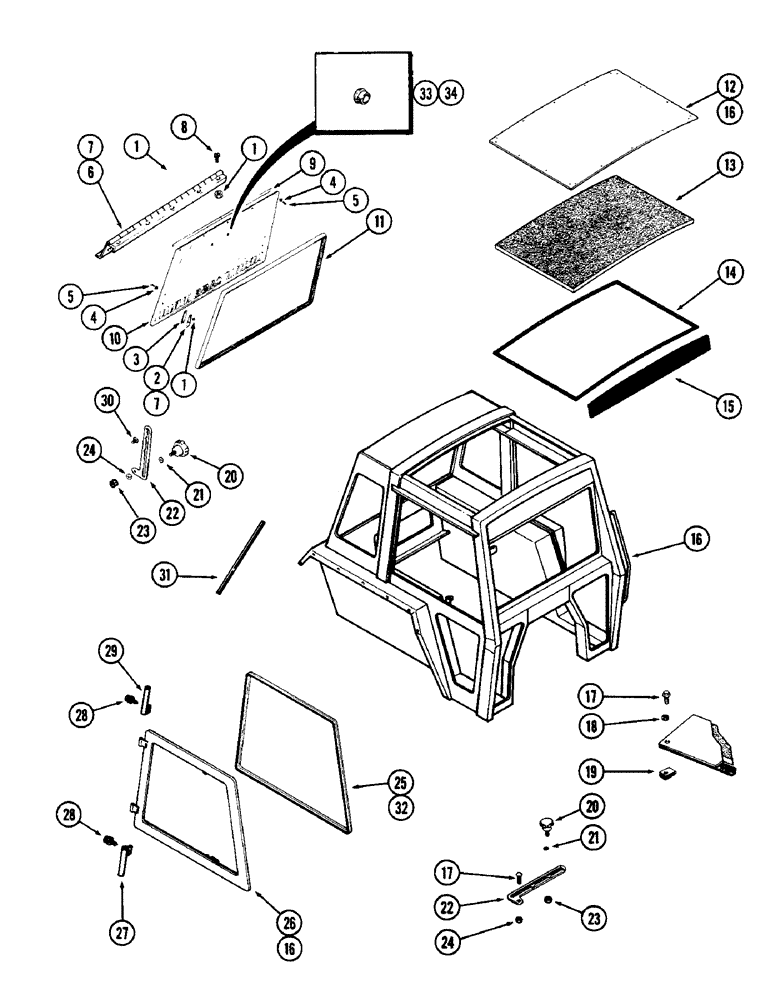

Запчасти Case IH 1690 (P04-1) - CAB, REAR AND SIDE WINDOW (10) - OPERATORS PLATFORM/CAB

1

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT LOCK - nylon insert (#10-32) (Sims 60-306-40)

14шт.

2

A167357

BRACKET

- holdout rear window (Sims A-1400-9460)

2шт.

3

A167358

SPACER - holdout bracket (Sims A-1500-1190)

2шт.

4

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

WASHER - spacer (Sims A-600-1851)

9шт.

5

172-100

X

SCREW - flat head slot (#10-32 x 3/4) (Sims 18-32-06-64)

9шт.

6

A167359

HINGE - rear window (Sims B-1700-1692)

1шт.

7

B17459

SPARE PART

PAINT - black low gloss (Sims 600-1122)

1шт.

8

182-145

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

- pan head slot (Sims 18-32-04-66)

5шт.

9

A167360

SPACER - hinge (Sims B-1500-1189)

1шт.

10

REF

INSTRUCTION

GLASS - rear window (Sims C-1100-0414B)

1шт.

See Fig. 6-1 for glass.

1шт.

11

F64403

SEAL

- rear window (142") (Sims 9105-1420), Serial Range: (Cut-length)

1шт.

12

A167361

PANEL

- roof removable (Sims C-1400-9534)

1шт.

13

A167362

SEAL - duct hatch (Sims A-1500-2094)

1шт.

14

F64119

SEALING STRIP

SEAL - rubber roof (1/8 x 1 x 148") (Sims 906-1480)

1шт.

15

A42582

DECAL

- front panel (Sims A-600-1835)

1шт.

16

B17410

PAINT

- power white (Sims 600-1143)

1шт.

17

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

(Sims 25-20-06-06) Hex, 1/4"-20 x 3/4", G5, Full Thd

20шт.

18

F64531

SEALING WASHER

WASHER - sealing (1/4) (Sims A-600-18911)

18шт.

19

131-617

NUT,Ret, J, 1/4"-20

- Tinnerman (1/4-20) (Sims 600-1533)

5шт.

20

A167363

KNOB

- window holdout (Sims 600-156)

4шт.

21

195-525

WASHER,3/8", SAE

- flat (3/8) (Sims 60-102-96)

4шт.

22

A167364

ARM

- window holdout (Sims 600-167)

4шт.

23

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - lock nylon insert (3/8-16) (Sims 60-302-40)

4шт.

24

86625061

NUT,1/4"-20, GB

NUT - lock nylon insert (1/4-20) (Sims 60-300-40)

4шт.

25

F64775

SEAL

- window RH (129") (Sims 9115-1290)

1шт.

26

A167365

WINDOW

ASSEMBLY - welded RH (Sims C-1300-1597)

1шт.

27

A167366

PIN

- hinge lower (Sims A-1300-1609)

1шт.

28

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex washer head self tap (#10 x 1/2) (Sims 18-02-04-72)

2шт.

29

A167367

PIN

PIN - hinge upper (Sims A-1300-1598)

1шт.

30

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(Sims 25-20-04-06) Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

31

F64403

SEAL

- window rear (27") (Sims 9105-0270), Serial Range: (Cut-length)

1шт.

32

F64775

SEAL

- door, Serial Range: (Cut-length)

1шт.

33

REF

INSTRUCTION

PLUG - (13/16" diameter hole) (Sims A-600-1924)

1шт.

34

REF

INSTRUCTION

PLUG - (5/16" diameter hole) (Sims 600-1226)

1шт.

REF

INSTRUCTION

KIT - rear wiper (See page P20-1)

1шт.
