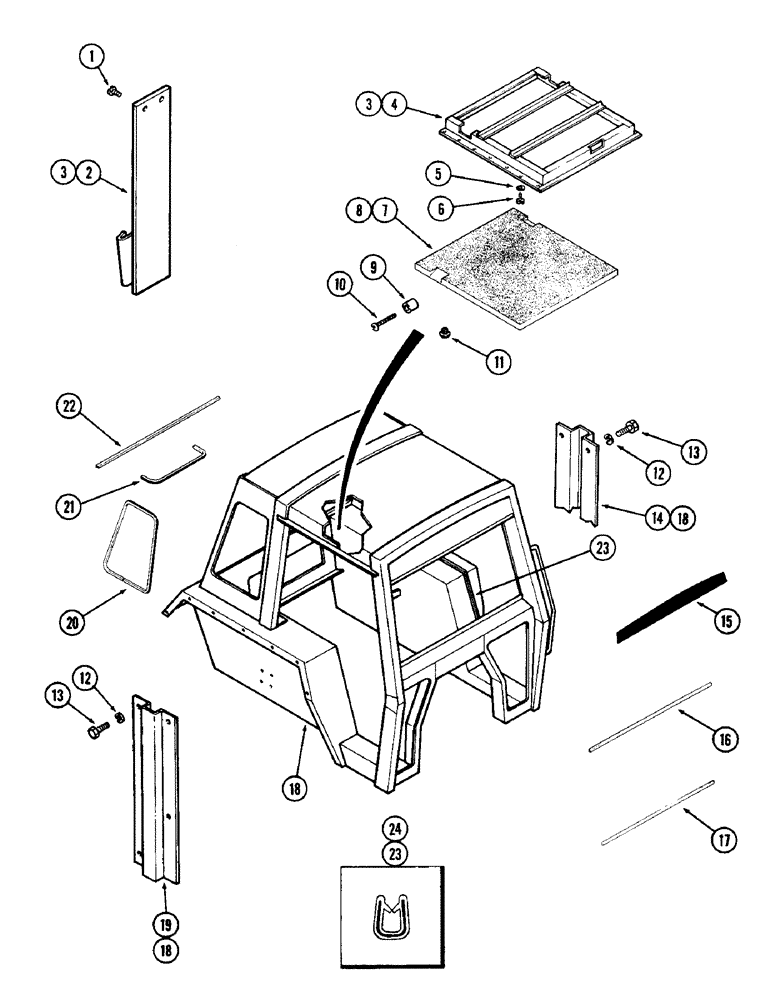

Запчасти Case IH 1690 (P01-1) - 4 POST PROTECTIVE FRAME, PROTECTIVE FRAME (10) - OPERATORS PLATFORM/CAB

1

187-583

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - pan head self tap (1/4-20 x 1/2) (Sims 25-20-04-70)

2шт.

2

A162667

BRACKET

ASSEMBLY - SMV welded (Sims A1300-1606)

1шт.

3

B17170

SPARE PART

PAINT - black - low gloss (Sims 600-1122)

1шт.

4

A167347

ROOF LINING

HEADLINER ASSEMBLY - opens ROPS, welded (Sims C-1300-1608)

1шт.

5

F43576

WASHER

- countersunk - nylon (#10) (Sims 1700-0832)

19шт.

6

187-233

SCREW - special (#10-16 x 1) (Sims 600-1747)

19шт.

7

A167348

PADDING

HEADLINER FOAM ASSEMBLY - open ROPS (Sims B-1700-1711)

1шт.

8

345-43

ADHESIVE - (Sims 600-1056)

1шт.

9

A167349

SPACER

- plexiglass (Sims A-1700-1724)

3шт.

10

187-572

SCREW - pan head self tap (1/4-20 x 1-1/2) (Sims 25-02-12-71)

3шт.

11

A167350

CAP

- insulation - black (Sims 600-1564)

4шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Sims 60-202-95) 3/8"

4шт.

13

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(Sims 38-16-06-06) Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

14

A167351

CHANNEL

- wire LH (Sims B-1400-9589)

1шт.

15

A42582

DECAL

- front panel (Sims A-600-1835)

1шт.

16

F64277

SEAL

WINDLACE - upper front (44-1/2") (Sims 903-0444)

1шт.

17

F64277

SEAL

WINDLACE - lower front (49-1/2") (Sims 903-0494)

1шт.

18

B17410

PAINT

- power white (Sims 600-1143)

1шт.

19

A167352

CHANNEL

- wire RH (Sims B-1400-9590)

1шт.

20

F64277

SEAL

WINDLACE - side opening (74-1/2") (Sims 903-0744)

2шт.

21

F64277

SEAL

WINDLACE - lower rear (49-1/4") (Sims 903-0492)

1шт.

22

F64277

SEAL

WINDLACE - rear side (Sims 903-0234)

2шт.

23

F64277

SEAL

TRIM - window 50' roll, Serial Range: (Cut-length)

1шт.

24

F64277

SEAL

WINDLACE - lower rear door opening, Serial Range: (Cut-length)

1шт.
