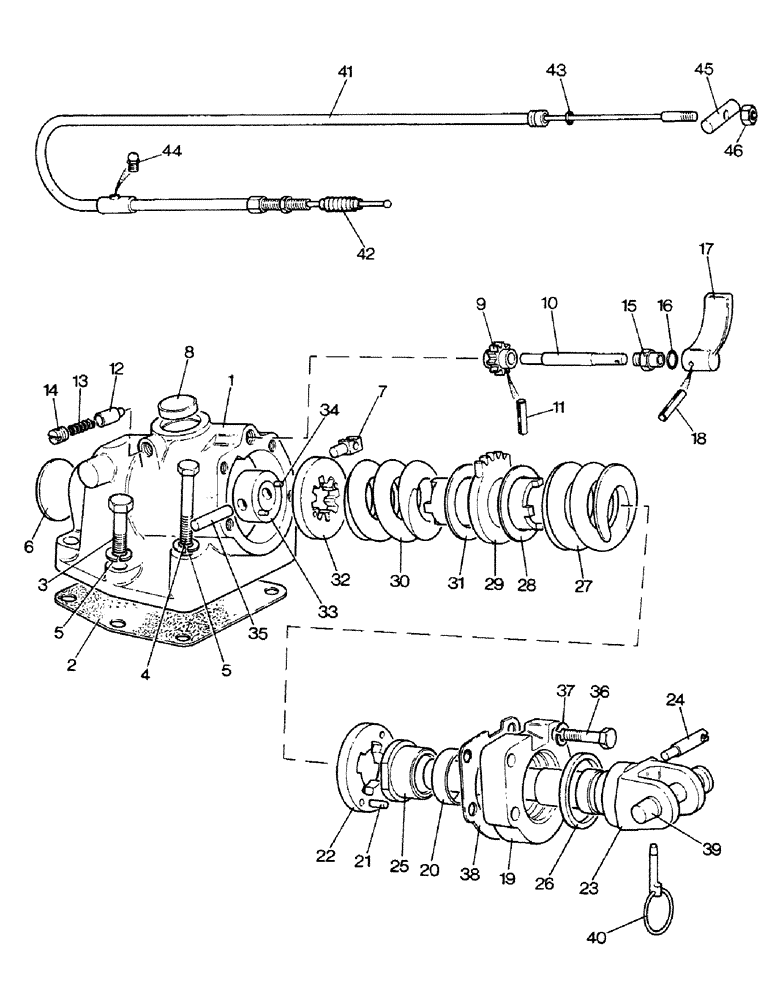

Запчасти Case IH 1690 (L05-1) - SELECTIVE SENSING UNIT (09) - IMPLEMENT LIFT

K933031

SENSING UNIT - selective, Includes Ref. 1 - 41

1шт.

1

K202577

SPRING

HOUSING - sensing

1шт.

2

K926451

GASKET,0.56mm Thk

- housing

1шт.

3

K608824

BOLT

- 1/2 UNC x 2"

4шт.

4

K608833

BOLT

- 1/2 UNC x 3-1/4"

2шт.

5

K626345

LOCK WASHER

WASHER - lock, 1/2"

6шт.

6

K623813

PLUG

CORE PLUG - 2-3/4", diameter

1шт.

7

K912371

CABLE

SUPPORT - outer

1шт.

8

K623797

PLUG

CORE PLUG - 1-3/4"

1шт.

9

K929874

SELECTOR

PINION - spindle

1шт.

10

K940044

SELECTOR

SPINDLE - selector

1шт.

11

K690338

PIN

- roll, 5/32 x 5/8"

1шт.

12

K946440

PLUNGER

- detent

1шт.

13

K625285

SPRING

- detent plunger

1шт.

14

K606281

SCREW

- 1/2 UNC

1шт.

15

K940045

BUSHING

- threaded

1шт.

16

K623681

WIPER

RING - 1/2", ID

1шт.

17

K940046

SELECTOR

LEVER - selector

1шт.

18

K623727

GROOVED PIN,5/32" x 7/8", Type A

PIN - roll, 5/32 x 7/8"

1шт.

19

K964912

PLATE

ASSEMBLY - end, Includes Ref. 20 - 22

1шт.

20

K621423

BUSHING

- sleeve

1шт.

21

K940031

PIN

DOWEL - 1/4 x 3/4"

2шт.

22

K947302

WASHER

- thrust

1шт.

23

K201385

SHAFT

- sensing

1шт.

24

K201386

CABLE

SUPPORT - inner

1шт.

25

K940035

SLEEVE

- shaft

1шт.

26

K623460

WIPER

SEAL - 2-1/2", ID

1шт.

27

K928315

SPRING

- 2" ID

1шт.

28

K928388

SHIM

- 0.003"

1шт.

28

K928389

SHIM

- 0.007"

1шт.

28

K928390

SHIM

- 0.015"

1шт.

29

K940036

SUPPORT

- spring

1шт.

30

K928314

SPRING

- 1-3/4", ID

1шт.

31

K928392

SHIM

- 0.003"

1шт.

31

K928393

SHIM

- 0.007"

1шт.

31

K928394

SHIM

- 0.015"

1шт.

32

K940039

WASHER

THRUST WASHER - 0.373"

1шт.

32

K940040

WASHER

THRUST WASHER - 0.365"

1шт.

32

K940041

WASHER

THRUST WASHER - 0.357"

1шт.

33

K947867

COLLAR

- with dowels

1шт.

34

K940043

PIN

DOWEL - stepped

2шт.

35

K915117

PIN

RETAINING PIN - 3/8 x 2-1/4"

1шт.

36

K600606

BOLT

- 7/16 UNC x 2"

4шт.

37

K626344

WASHER, LOCK

WASHER - lock, 7/16"

4шт.

38

K940032

SHIM

- 0.005"

1шт.

38

K940033

SHIM

- 0.010"

1шт.

38

K940034

SHIM

- 0.030"

1шт.

39

K65690

HITCH PIN

PIN - linch

1шт.

40

K920359

PIN

AND RING - linch

1шт.

41

K963417

LINK

CABLE - with dirt excluder

1шт.

42

K906182

RUBBER

SEAL - dirt

1шт.

43

K690702

O-RING,1.59mm Thk x 6.75mm ID, 80 Duro

- 1/4", ID

1шт.

44

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

45

K915053

FITTING

NIPPLE - no. 10 UNF

1шт.

46

K617080

NUT

- no. 10 UNF

2шт.
