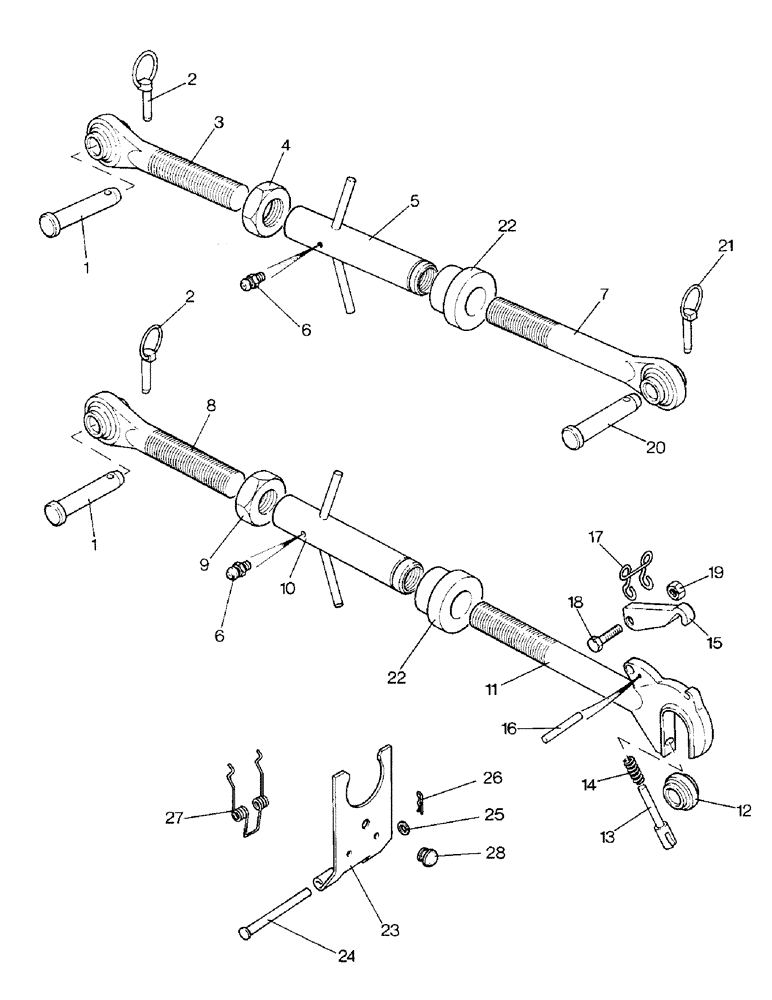

Запчасти Case IH 1690 (L04-1) - TOP LINK, HIGH PLATFORM, CAB, LOW PROFILE (09) - IMPLEMENT LIFT

1

K65690

HITCH PIN

LINK PIN - sensing unit

1шт.

2

K920359

PIN

AND RING - linch

1шт.

K201666

LINK

ASSEMBLY - top, Includes Ref. 3 - 7

1шт.

3

K201824

LINK

SCREW AND HOUSING - tractor end

1шт.

4

K19448

LOCK NUT

LOCKNUT - 1-1/4 BSF

1шт.

5

K920800

TURNBUCKLE

- link

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

7

K201825

LINK

SCREW AND HOUSING - implement end

1шт.

K201695

LINK

ASSEMBLY - top, Includes Ref. 8 - 19

1шт.

8

K201824

LINK

SCREW AND HOUSING - tractor end

1шт.

9

K19448

LOCK NUT

LOCKNUT - 1-1/4 BSF

1шт.

10

K920800

TURNBUCKLE

- link

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

11

K201785

HOOK

SCREW AND HOOK - implement end

1шт.

12

K201787

BALL

- pivot

1шт.

13

K201788

PIN

- retaining

1шт.

14

K201789

SPRING

- tension

1шт.

15

K201790

LEVER

- release

1шт.

16

K201791

PIN

- roll, 5/32 x 3/4"

1шт.

17

K201792

SPRING

EYE - spring

2шт.

18

K201793

BOLT

- 5/16 Whit. x 1-3/8"

1шт.

19

K201731

NUT

- 5/16 Whit. self-locking

1шт.

20

K65690

HITCH PIN

LINK PIN - implement

1шт.

21

K920359

PIN

AND RING - linch

1шт.

22

K203566

BUSHING

- top link stowage (High Platform, Cab)

1шт.

23

K302079

PLATE

ANCHOR PLATE - (High Platform Only) (High Platform, Cab)

1шт.

24

K625966

PIN

- pivot (High Platform, Cab)

1шт.

25

K19470

WASHER

- 1/4" (High Platform, Cab)

1шт.

26

K950865

CLIP

- spring (High Platform, Cab)

1шт.

27

K624889

SPRING

- tension (High Platform, Cab)

1шт.

28

K627771

BUTTON

PLUG - rubber (High Platform, Cab)

1шт.
