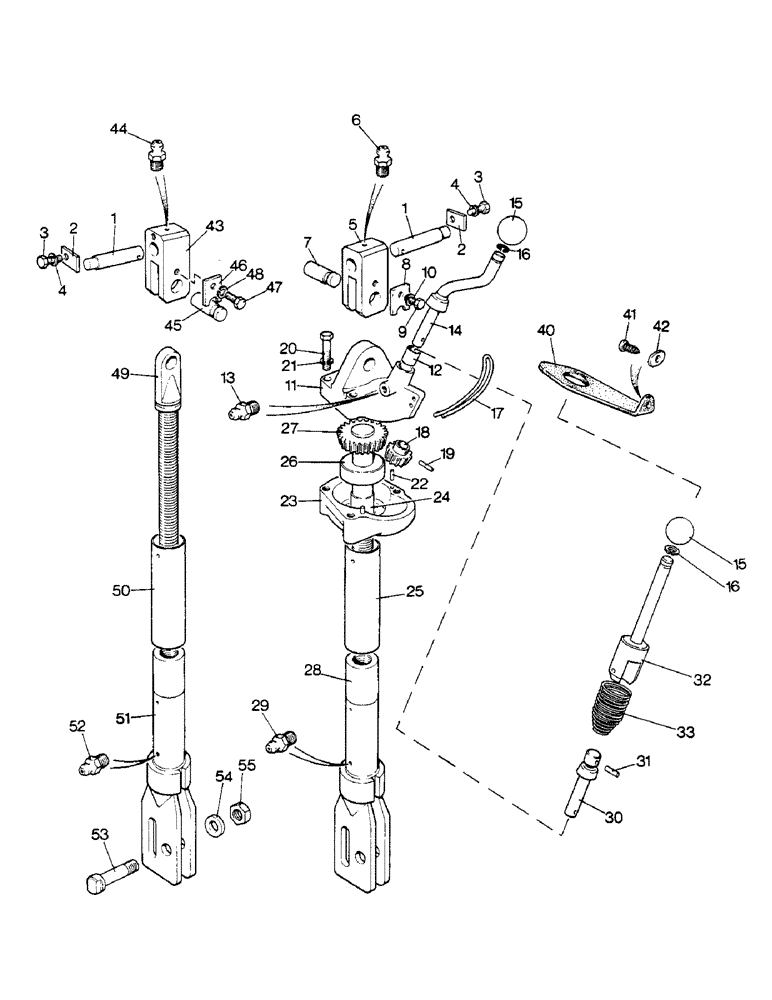

Запчасти Case IH 1690 (L02-1) - LEVELLING LEVER AND LIFT ROD, HIGH PLATFORM, CAB, LOW PROFILE (09) - IMPLEMENT LIFT

1

K948366

PIN

PIVOT PIN - ramshaft arm

2шт.

2

K948367

PLATE

- locating

2шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

SETSCREW - 3/8 UNC x 1"

2шт.

4

K19482

SPRING WASHER

WASHER - lock, 3/8"

2шт.

K204916

LEVER

ASSEMBLY - levelling (Low Profile)

1шт.

K201686

LEVER

ASSEMBLY - levelling (High Platform, Cab), Includes Ref. 5 - 40

1шт.

5

K201543

BLOCK

END - fork

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

7

K201544

PIN

- 7/8 x 2-1/2"

1шт.

8

K201545

PLATE

- locking

1шт.

9

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

SETSCREW - 3/8 UNC x 7/8"

1шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

11

K965943

CAP

- gear housing

1шт.

12

K621340

BUSHING

- cap

2шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

14

K919761

LEVER

- hand (Low Profile)

1шт.

15

K919763

BUTTON

KNOB - lever (Low Profile)

1шт.

16

A10916

RING, SNAP

RING - snap (Low Profile)

1шт.

17

K924723

SPRING

LATCH - spring (Low Profile)

1шт.

18

K919769

GEAR

- bevel

1шт.

19

K623946

PIN

SPRING PIN - 5/32 x 3/4"

1шт.

20

113-350

BOLT,Hex, 7/16" - 14 x 2", Gr 5

- 7/16 UNC x 2"

4шт.

21

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

22

K32063

PIN

DOWEL - 3/16 x 1/2"

2шт.

23

K964964

HOUSING

- gear

1шт.

24

K621302

BUSHING

- housing

1шт.

25

K940510

TUBE,1.75" ID x 6.187" L

- levelling, 1-3/4 x 6-1/4"

1шт.

26

K620193

THRUST BEARING

BEARING - thrust

1шт.

27

K948664

GEAR

SCREW - levelling, 1-1/8 Whit, x 13-3/4"

1шт.

28

K201549

FORK

ADJUSTING NUT - adjusting

1шт.

29

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

30

K954077

SHAFT

SPINDLE - rod (High Platform, Cab)

1шт.

31

K691356

PIN

SPRING PIN - 5 x 25 MM (High Platform, Cab)

1шт.

32

K204898

LEVER

- hand (High Platform, Cab)

1шт.

33

K204914

SPRING

- lever (High Platform, Cab)

1шт.

40

K303814

RUBBER

STRAP - retaining (Sekura 21453) (High Platform, Cab)

1шт.

41

K653350

SCREW

- self-tapping, M8 x 16, (Sekura 916234)

1шт.

42

K966552

RING, SNAP

WASHER - 8 MM, (Sekura 912094) (High Platform, Cab)

1шт.

K201542

ROD

ASSEMBLY - lift, Includes Ref. 44 - 53

1шт.

43

K201543

BLOCK

END - fork

1шт.

44

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

45

K201544

PIN

- 7/8 x 2-1/2"

1шт.

46

K201545

PLATE

- locking

1шт.

47

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

SETSCREW - 3/8 UNC x 7/8"

1шт.

48

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

49

K965944

SCREW

ADJUSTMENT SCREW - lift rod

1шт.

50

K940509

TUBE,1.75" DIA x 7.125" L

- 1-3/8 x 7-1/8"

1шт.

51

K201549

FORK

ADJUSTING NUT - lift rod

1шт.

52

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

53

K201540

PIN

BOLT - 7/8 UNC, special

2шт.

54

K201541

DISC

COLLAR - lift rod bolt

2шт.

55

K607465

NUT

- 7/8 UNC, self locking

2шт.
