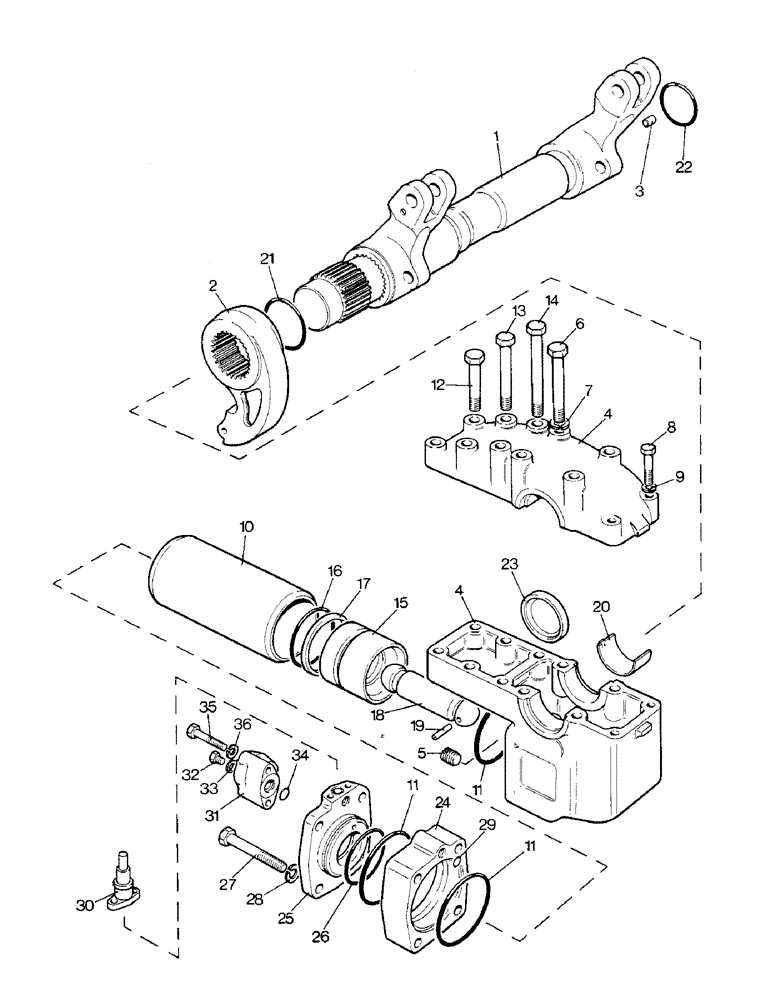

Запчасти Case IH 1690 (L01-1) - RAMSHAFT AND RAM CYLINDER (09) - IMPLEMENT LIFT

1

K956760

SHAFT

RAMSHAFT AND LEVERS - cylinder, Includes Ref. 2 and 3

1шт.

2

K926691

ARM

LEVER - ram

1шт.

3

K621807

PIN

DOWEL - 5/16 x 1/2"

1шт.

4

K964866

HOUSING

BRACKET AND CAP ASSEMBLY - left-hand, Includes Ref. 5 - 9

1шт.

5

K204762

SCREW

RESTRICTOR - ramshaft bracket

1шт.

6

413-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 5

- 5/8 UNC x 4-3/4" (Replaces K601219)

4шт.

7

K19485

WASHER

- lock, 5/8"

4шт.

8

K600409

BOLT

- 3/8 UNC x 2-1/8"

2шт.

9

K19482

SPRING WASHER

WASHER - lock, 3/8"

2шт.

10

K926690

CYLINDER

SLEEVE - cylinder

1шт.

11

K623685

O-RING,0.139" Thk x 4.734" ID, -248, Cl 6, 90 Duro

- 4-3/4", ID

3шт.

12

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

- 5/8 UNC x 4-1/4" (Replaces K601217)

2шт.

13

K691852

BOLT

- 5/8 UNC x 5-1/4"

2шт.

14

K601225

BOLT

- 5/8 UNC x 6-1/4"

6шт.

15

K926698

PISTON

- cylinder

1шт.

16

K623682

O-RING,0.21" Thk x 3.6" ID, -342, Cl 6, 90 Duro

-342, 90 Duro, 3.600" ID x .210" Thk

1шт.

17

K623683

RING

BACK-UP RING - 3-5/8", ID

1шт.

18

K928196

ROD

- connecting

1шт.

19

K623923

SPRING

PIN - 1/4 x 2-1/4"

1шт.

20

K928272

BEARING

- halves

1шт.

21

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- 3", ID

1шт.

22

K623579

O-RING,0.21" Thk x 2.225" ID, -331, Cl 5, 75 Duro

- 2-3/4", ID

1шт.

23

K928433

DISC

- sealing

1шт.

24

K944540

SUPPORT

HOUSING - cylinder body

1шт.

25

K944534

COVER

END COVER - ram cylinder

1шт.

26

K623684

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

-240, 90 Duro, 3.734" ID x .139" Thk, Cover

1шт.

27

K601280

BOLT

- 5/8 UNC x 13-1/8"

4шт.

28

K19485

WASHER

- lock, 5/8"

4шт.

29

K623687

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- 5/8"

4шт.

30

K964867

VALVE

ASSEMBLY - dump, See figure K11

1шт.

31

K955073

CONNECTOR, ELEC

CONNECTOR - cover

1шт.

32

K19591

PLUG

- 1/8 BSP

1шт.

33

K24560

WASHER

- sealing, 3/8"

1шт.

34

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16", ID

1шт.

35

K600414

BOLT

- 3/8 UNC x 2-3/4"

2шт.

36

K19482

SPRING WASHER

WASHER - lock, 3/8"

2шт.
