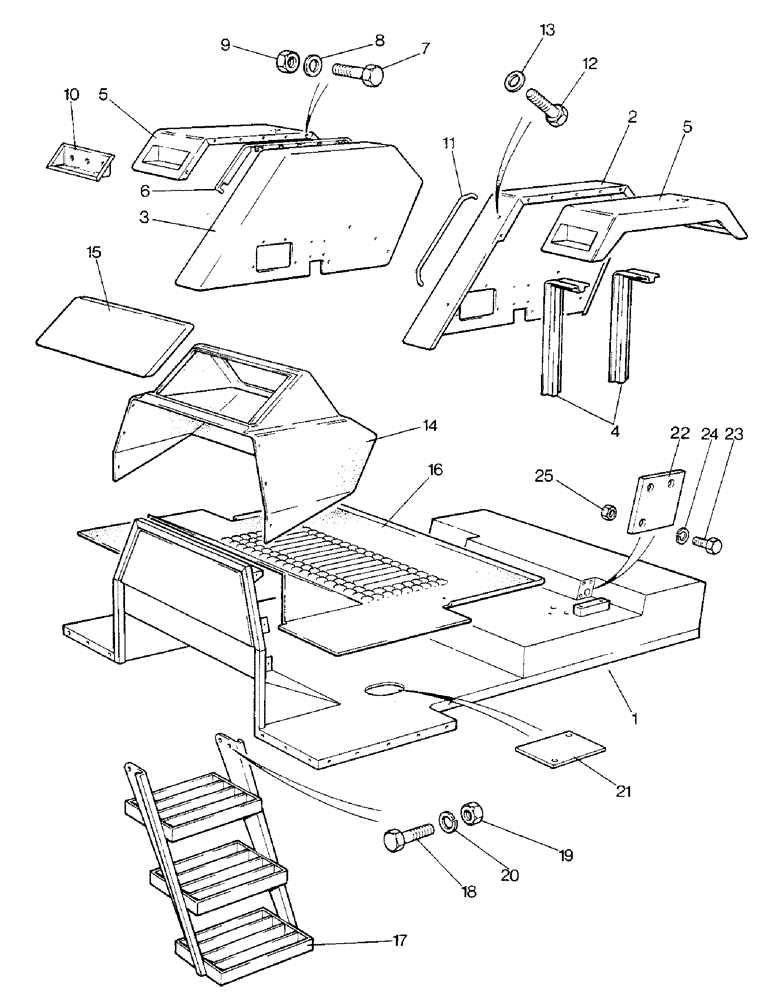

Запчасти Case IH 1690 (N10-1) - HIGH PLATFORM, CAB SUPPORTS (08) - SHEET METAL

1

K301481

NO LONGER SERVICED

DECK ASSEMBLY - flat, Includes Ref. 2 - 5

1шт.

2

K302015

FENDER

- left-hand (Sekura 43219)

1шт.

3

K302016

FENDER

- right-hand (Sekura 43220)

1шт.

4

K303819

BRACKET

SUPPORT BRACKET - fenders (Sekura 416014)

4шт.

5

K302019

EXTENSION

- fenders (Sekura 43162)

2шт.

6

K303940

STRIP

EDGING STRIP - (Sekura 23506), Includes Ref. 7 - 9

2шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

14шт.

8

K651778

WASHER

- 8 MM

14шт.

9

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

14шт.

10

K303612

HOUSING

- lamp (Sekura 23355), Includes Ref. 11 - 13

4шт.

11

K302024

HANDLE

- grab (Sekura 43196)

1шт.

12

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

2шт.

13

K651778

WASHER

- 8 MM

2шт.

14

K302013

PANEL

- instrument (Sekura 23501)

1шт.

15

K302014

COVER

- inspection (Sekura 43164)

1шт.

16

K302023

FLOOR

MAT - floor (Sekura 416012)

1шт.

17

K303774

STEP

- operator

1шт.

18

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

4шт.

19

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

20

K651848

WASHER

- lock, 8 MM

4шт.

21

K303513

COVER

PLATE - fuel tank aperture

2шт.

22

K302955

COVER

PLATE - cover

1шт.

23

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

3шт.

24

K651848

WASHER

- lock, 8 MM

3шт.

25

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

3шт.
