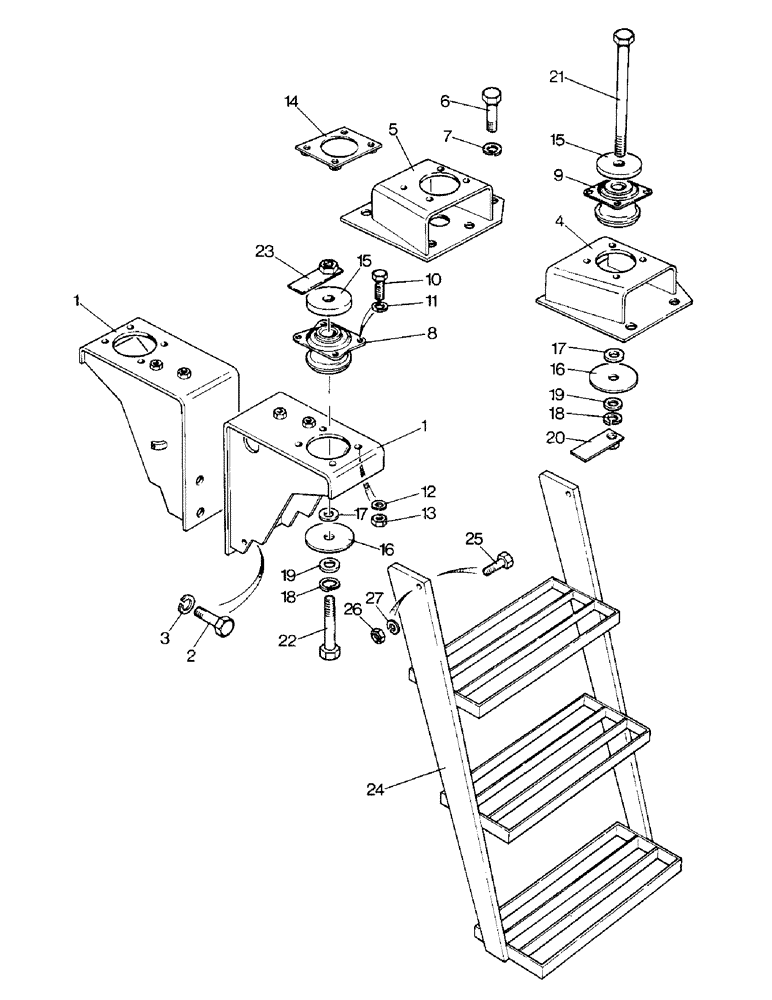

Запчасти Case IH 1690 (N09-1) - MOUNTING BRACKETS AND SUPPORTS, HIGH PLATFORM, CAB MODEL (08) - SHEET METAL

1

K201590

BRACKET

MOUNTING BRACKET - front

2шт.

2

K603307

SCREW

SETSCREW - 5/8 UNC x 1-5/8"

8шт.

3

K19485

WASHER

- lock, 5/8"

8шт.

4

K201556

BRACKET

SUPPORT BRACKET - left-hand, rear

1шт.

5

K201560

BRACKET

SUPPORT BRACKET - right-hand, rear

1шт.

6

K603307

SCREW

SETSCREW - 5/8 UNC x 1-5/8", Serial Range: bracket-axle

8шт.

7

K19485

WASHER

- lock, 5/8"

8шт.

8

K949839

BUMPER

RUBBER MOUNTING - front

2шт.

9

K949838

DAMPER

RUBBER MOUNTING - rear

2шт.

10

K602936

SCREW,3/8" - 16 x 1 1/2", Gr S

SETSCREW - 3/8 UNC x 1-1/4"

16шт.

11

K19472

WASHER

- 3/8"

16шт.

12

K19482

SPRING WASHER

WASHER - lock, 3/8"

16шт.

13

280136

NUT,3/8"-16, G8

8шт.

14

K203523

NUT

- 3/8 UNC, special

2шт.

15

K949668

WASHER

- 5/8 x 3-5/16", grooved, special

4шт.

16

K955087

WASHER

- 5/8 x 3-1/2", special

4шт.

17

K626930

WASHER

- 5/8 x 1-1/8", special

4шт.

18

K19485

WASHER

- lock, 5/8"

4шт.

19

K626855

WASHER

- 5/8"

4шт.

20

K203647

NUT

- 5/8 UNC, special

2шт.

21

K601378

BOLT

- 5/8 UNC x 6-1/2"

2шт.

22

K601334

BOLT

- 5/8 UNC x 4-1/4"

2шт.

23

K203648

NUT

- 5/8 UNC

2шт.

24

K303774

STEP

- operator (Sekura 43009)

1шт.

25

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

4шт.

26

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

27

K651848

WASHER

- lock, 8 MM

4шт.
