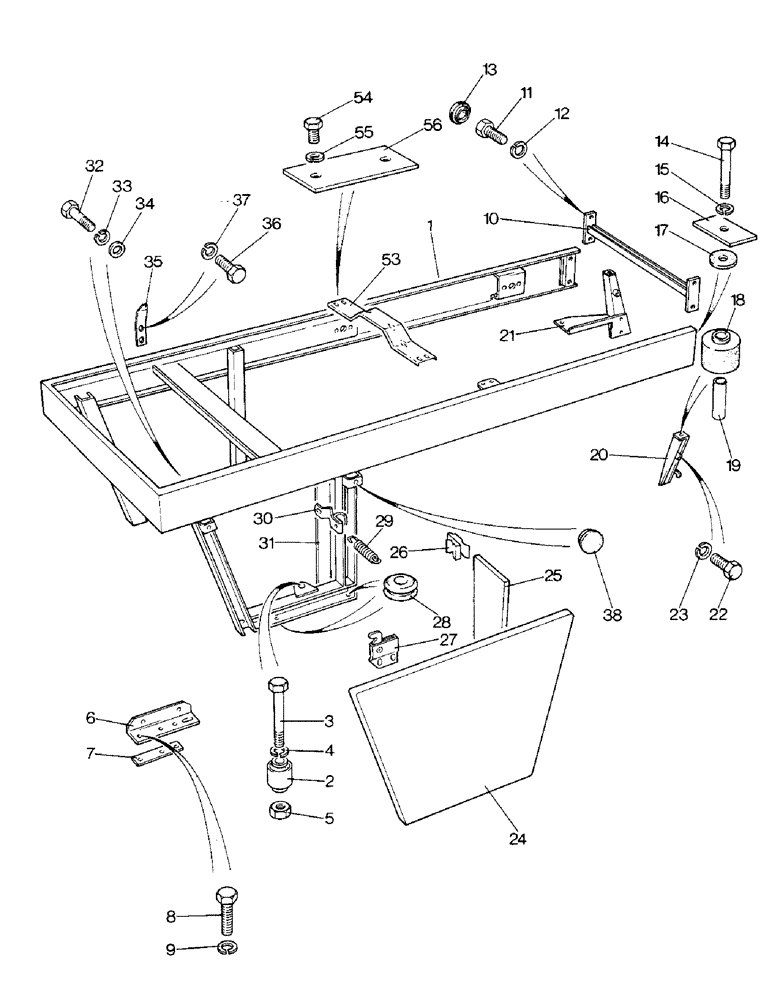

Запчасти Case IH 1690 (N07-3) - ENGINE SIDE COVER AND FRAME, HIGH PLATFORM, CAB MODEL (08) - SHEET METAL
№
Артикул
Название
Примечание
Количество
1
K300615
SUPPORT
FRAME - engine cover
1шт.
2
K622851
BUSHING
MOUNTING - flexible, Serial Range: -11213339
2шт.
4
K651848
WASHER
- 8 MM
2шт.
6
K300292
BRACKET
- left-hand ), Serial Range: -11213339
1шт.
6
K300294
BRACKET
- right-hand, Serial Range: -11213339
1шт.
7
K300296
SHIM
PLATE - spacing
2шт.
8
413-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
SETSCREW - 3/8 UNC x 1-1/8"
4шт.
9
K19482
SPRING WASHER
WASHER - lock, 3/8"
4шт.
10
K300664
BRACE
STRUT - rear (Replaces K30064)
1шт.
11
K654047
SCREW
SETSCREW - M8 x 20
4шт.
12
K651874
SPRING
WASHER - lock, 8 MM
4шт.
13
K627992
PLUG
- plastic
4шт.
14
K650632
BOLT
- M6 x 40
2шт.
15
K651847
WASHER, LOCK
WASHER - lock, 6 MM
2шт.
16
K915726
PLATE
- clamping
2шт.
17
K915725
WASHER
- rubber
2шт.
18
K626462
DAMPER
SPACER - rubber
2шт.
19
K627007
TUBE,0.375" OD x 1.016" L
SLEEVE - spacer
2шт.
20
K300658
SUPPORT
- left-hand rear
1шт.
21
K300662
SUPPORT
- right-hand rear
1шт.
22
K602982
SCREW,3/8" - 16 x 3/4", Gr S
SETSCREW - 3/8 UNC x 3/4"
4шт.
23
K19482
SPRING WASHER
WASHER - lock, 3/8"
4шт.
24
K300267
PANEL
- side
2шт.
25
K301072
SEAL
- side panel
2шт.
26
K621744
CLIP
- seal
8шт.
27
K300500
LOCK
- left-hand
1шт.
27
K300499
LOCK
- right-hand
1шт.
28
K627754
GROMMET
- 14 MM
4шт.
29
K624940
SPRING
- tension
2шт.
30
K915791
GRIP
- finger
2шт.
31
K301073
STRIP
SEALING STRIP - radiator side
2шт.
32
K650628
BOLT
- M6 x 20
4шт.
33
K651847
WASHER, LOCK
WASHER - lock, 6 MM
4шт.
34
K651777
WASHER
- 6 MM
4шт.
35
K205214
PLATE
- locating
2шт.
36
K651239
BOLT
- M8 x 14
4шт.
37
K651848
WASHER
- 8 MM
4шт.
38
K627771
BUTTON
PLUG - rubber
4шт.
53
K300689
SUPPORT
- air cleaners
2шт.
54
K650641
SCREW
SETSCREW - M8 x 16
8шт.
55
K651848
WASHER
- lock, 8 MM
8шт.
56
K300894
PLATE
- clamping
4шт.
Выбрано товаров: 44
