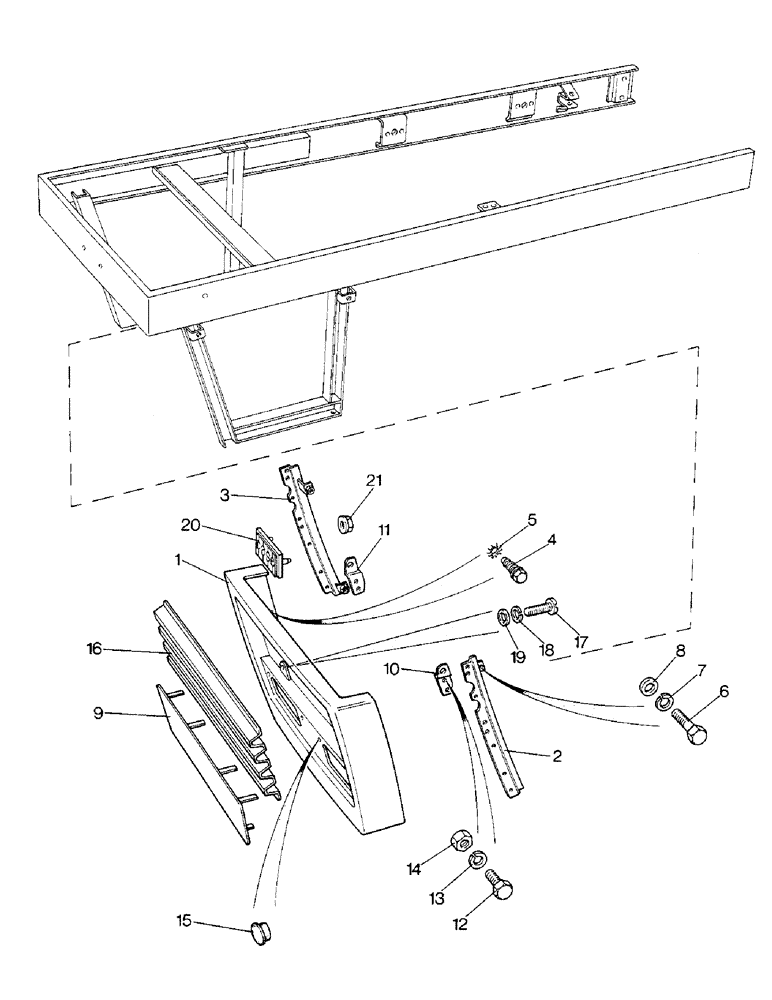

Запчасти Case IH 1690 (N07-1) - ENGINE FRONT COVER, HIGH PLATFORM, CAB MODELS (08) - SHEET METAL

1

K301763

HOOD

NOSE - lower

1шт.

2

K302742

SUPPORT

- left-hand

1шт.

3

K302743

SUPPORT

- right-hand

1шт.

4

K624533

SCREW

- self-tapping

6шт.

5

K626552

WASHER

- lock, 8 MM

6шт.

6

K650643

BOLT

- M8 x 24

4шт.

7

K651848

WASHER

- lock, 8 MM

4шт.

8

K651778

WASHER

- 8 MM

4шт.

9

K302207

PLATE

- nose (With outboard lamps)

1шт.

10

K302149

BRACKET

- left-hand head lamp (With outboard lamps)

1шт.

11

K302150

BRACKET

- right-hand head lamp (With outboard lamps)

1шт.

12

K650341

SCREW

BOLT - M8 x 16

4шт.

13

K651848

WASHER

- lock, 8 MM

4шт.

14

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

15

K627874

PLUG

- head lamp adjusters

4шт.

16

K300097

GUARD

GRILLE - lower

1шт.

17

K652464

SCREW

- M5 x 16

4шт.

18

K651846

WASHER, LOCK

WASHER - lock, 5 MM

4шт.

19

K626946

WASHER

- 5 MM, special

4шт.

20

K300238

EMBLEM CASE/IH

MEDALLION - Case logo

1шт.

21

K623280

NUT

- 1/4", special

2шт.
