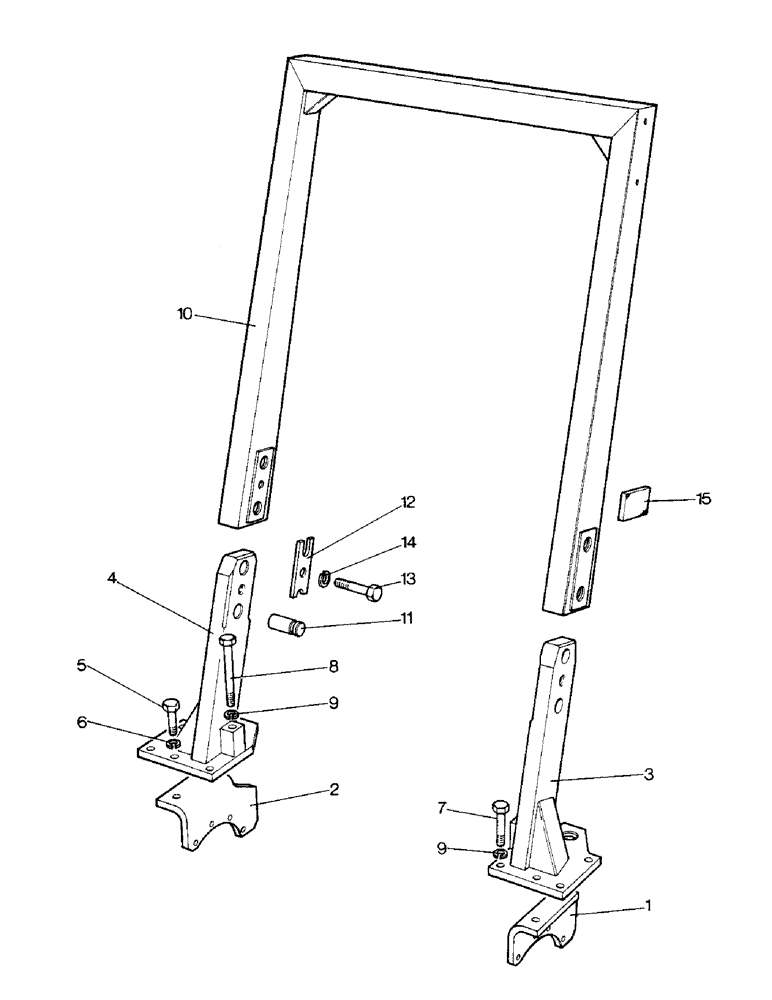

Запчасти Case IH 1690 (N06-1) - ROLL BAR - UK4703, LOW PROFILE MODEL (08) - SHEET METAL

1

K302325

BAR

BRACKET - left-hand

1шт.

2

K302328

BAR

BRACKET - right-hand

1шт.

3

K301435

BAR

SUPPORT - left-hand

1шт.

4

K301436

BAR

SUPPORT - right-hand

1шт.

5

K603307

SCREW

SETSCREW - 5/8 UNC x 1-5/8"

4шт.

6

K19485

WASHER

- lock, 5/8"

4шт.

7

K601358

BOLT

- 5/8 UNC x 2-1/4"

6шт.

8

K601223

BOLT

- 5/8 UNC x 5-3/4"

2шт.

9

K19485

WASHER

- lock, 5/8"

8шт.

10

K301424

BAR

- roll

1шт.

11

K301379

PIN

- mounting

4шт.

12

K301380

PLATE

- locating

2шт.

13

K601465

BOLT

- 3/4 UNC x 2-1/4"

2шт.

14

K19486

WASHER, LOCK

WASHER - lock, 3/4"

2шт.

15

K302607

PAD

- buffer

2шт.
