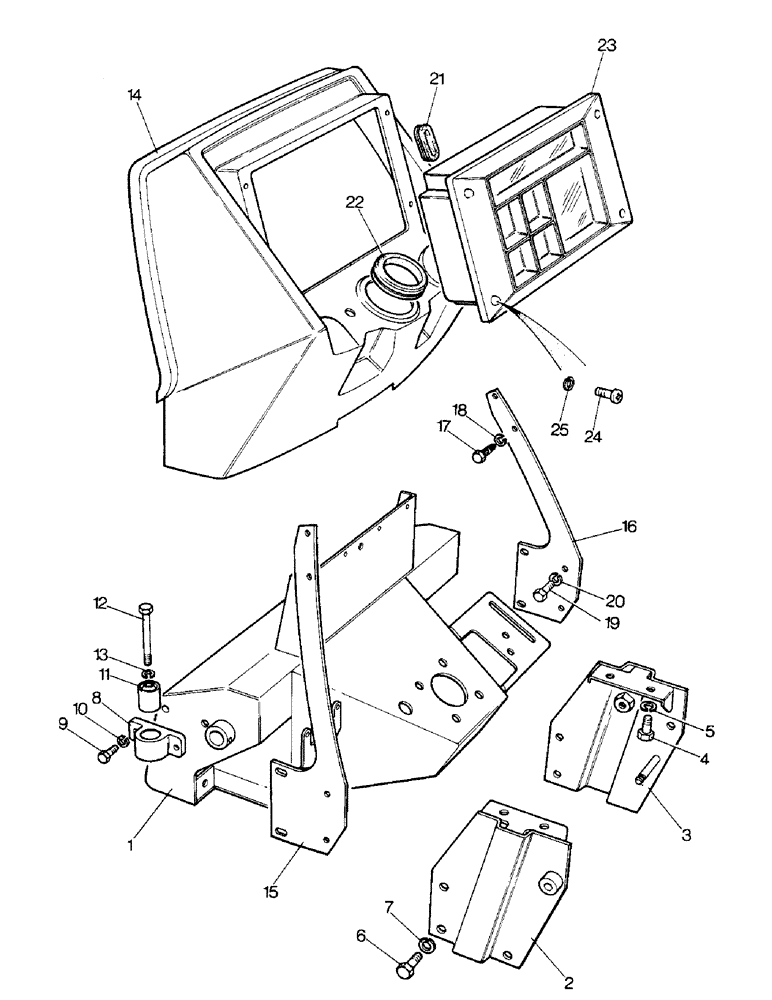

Запчасти Case IH 1690 (N05-1) - INSTRUMENT PANEL AND PEDAL SUPPORT, LOW PROFILE MODEL (08) - SHEET METAL

1

K302660

PEDAL

SUPPORT BRACKET - clutch and brake pedals

1шт.

2

K302644

MOUNTING PARTS

MOUNTING BRACKET - left-hand

1шт.

3

K302645

BRACKET

MOUNTING BRACKET - right-hand

1шт.

4

K650659

BOLT

- M10 x 20, Serial Range: brackets-support

4шт.

5

K651849

WASHER

- lock, 10 MM

4шт.

6

K650659

BOLT

- M10 x 20

6шт.

7

K651849

WASHER

- lock, 10 MM

6шт.

8

K201951

BRACKET

- support

2шт.

9

K655628

BOLT

- M6 x 18

4шт.

10

K651847

WASHER, LOCK

WASHER - lock, 6 MM

4шт.

11

K622851

BUSHING

MOUNTING - flexible

2шт.

12

K650648

BOLT

- M8 x 50

2шт.

13

K651848

WASHER

- lock, 8 MM

2шт.

14

K300776

PANEL

- instrument

1шт.

15

K302651

PANEL

SUPPORT BRACKET - left-hand

1шт.

16

K300727

SUPPORT

BRACKET - right-hand

1шт.

17

K624534

SELF-TAP SCREW

SCREW - M8

8шт.

18

K651848

WASHER

- lock, 8 MM

8шт.

19

K650640

BOLT

- M8 x 14 MM

4шт.

20

K651848

WASHER

- lock, 8 MM

4шт.

21

K627761

GROMMET

- throttle lever

1шт.

22

K627760

GROMMET

- steering column

1шт.

23

K300268

CLUSTER

- instrument, See figure B9

1шт.

24

K652502

SCREW,Pan, M5 x 0.8 x 16mm

- M5 x 10

4шт.

25

K651846

WASHER, LOCK

WASHER - lock, 5 MM

4шт.
