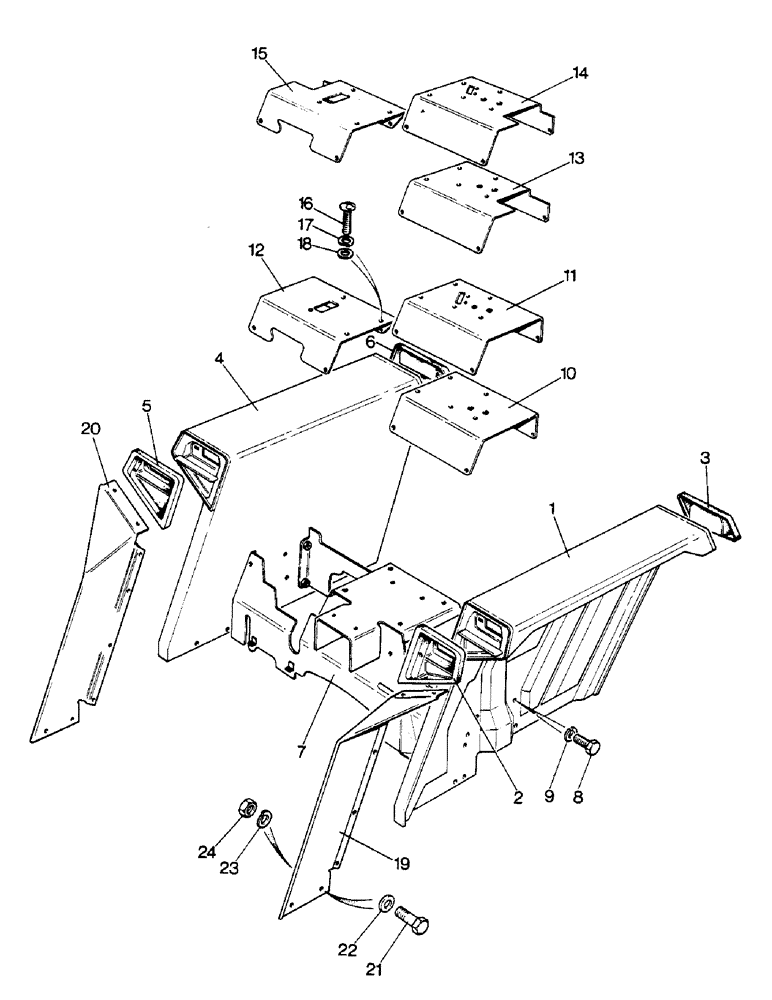

Запчасти Case IH 1690 (N04-1) - REAR FENDERS AND COVERS, LOW PROFILE MODEL, MFD MODEL, 2WD LOW PROFILE MODEL (08) - SHEET METAL

1

K300386

FENDER

FULL FENDER - left-hand

1шт.

2

K300413

MOLDING

RUBBER MOULDING - front, left-hand fender

1шт.

3

K300422

MOLDING

RUBBER MOULDING - rear, left-hand fender

1шт.

4

K300388

FENDER

FULL FENDER - right-hand

1шт.

5

K300423

MOLDING

RUBBER MOULDING - front, right-hand fender

1шт.

6

K300405

MOLDING

RUBBER MOULDING - rear, right-hand fender

1шт.

7

K300965

SHAFT

COVER - axle

1шт.

8

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

(Replaces K655646) Hex, M8 x 25, 8.8

12шт.

9

K651848

WASHER

- lock, 8 MM

24шт.

10

K300972

SHAFT

COVER - left-hand (Without roll bar) (2WD Low Profile Model)

1шт.

11

K300973

SHAFT

COVER - left-hand (Without roll bar) (MFD Model)

1шт.

12

K300974

SHAFT

COVER - right-hand (Without roll bar)

1шт.

13

K300976

SHAFT

COVER - left-hand (With roll bar) (2WD Low Profile Model)

1шт.

14

K300977

SHAFT

COVER - left-hand (With roll bar) (MFD Model)

1шт.

15

K300978

SHAFT

COVER - right-hand (With roll bar)

1шт.

16

K655646

BOLT

- M8 x 24

12шт.

17

K651848

WASHER

- lock, 8 MM

12шт.

18

K651778

WASHER

- 8 MM

12шт.

19

K302496

FENDER

EXTENSION - fender, LH

1шт.

20

K302497

FENDER

EXTENSION - fender, RH (Replaces K203497)

1шт.

21

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

4шт.

22

K651778

WASHER

- 8 MM

4шт.

23

K651848

WASHER

- lock, 8 MM

4шт.

24

43362

NUT,M8 x 1.25, Cl 10

- M18

4шт.
