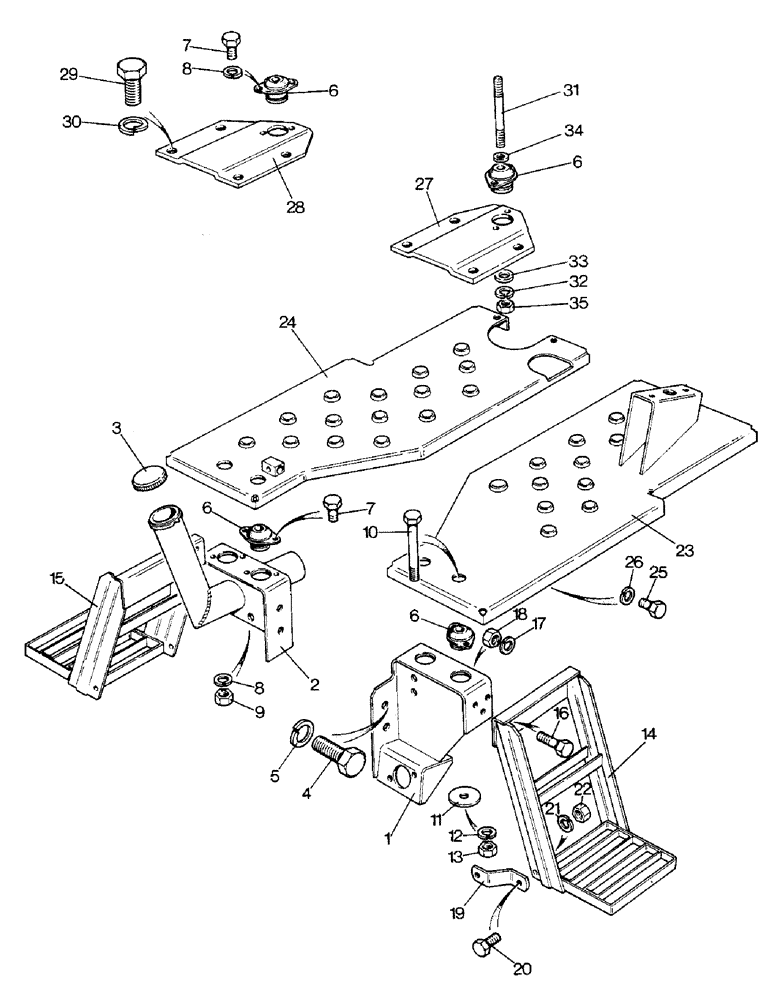

Запчасти Case IH 1690 (N03-1) - MOUNTINGS AND STEPS, LOW PROFILE MODEL (08) - SHEET METAL

1

K302161

BRACKET

MOUNTING BRACKET - left-hand front

1шт.

2

K301075

BRACKET

MOUNTING BRACKET - right-hand front, Includes Ref. 3

1шт.

3

K901983

CAP

FILLER CAP - fuel tank

1шт.

4

K603304

SCREW

SETSCREW - 5/8 UNC x 1-1/4", mounting, Serial Range: bracket-frame

6шт.

5

K19485

WASHER

- lock, 5/8"

6шт.

6

K300649

BLOCK

RUBBER MOUNTING - front

6шт.

7

K650627

BOLT,M6 x 16mm

- M6 x 16 MM

12шт.

8

K651847

WASHER, LOCK

WASHER - lock, 6 MM

12шт.

9

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

8шт.

10

K600510

BOLT

- 3/8 UNC x 2"

4шт.

11

K627465

WASHER

- 10 MM, special

4шт.

12

K19482

SPRING WASHER

WASHER - lock, 3/8"

4шт.

13

280136

NUT,3/8"-16, G8

4шт.

14

K300834

STEP

- left-hand

1шт.

15

K300838

STEP

- right-hand

1шт.

16

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

6шт.

17

K651848

WASHER

- lock, 8 MM

1шт.

18

K651507

NUT

- M8

6шт.

19

K203222

BRACKET

SUPPORT BRACKET - step

2шт.

20

K602849

SCREW

SETSCREW - 5/16 UNC x 7/8"

4шт.

21

K19481

SPRING WASHER

WASHER - lock, 5/16"

4шт.

22

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

4шт.

23

K301283

PLATE ASSY.

FOOTPLATE - left-hand

1шт.

24

K301255

PLATE ASSY.

FOOTPLATE - right-hand

1шт.

25

K650641

SCREW

BOLT - M8 x 16 MM

9шт.

26

K651848

WASHER

- lock, 8 MM

9шт.

26

K651778

WASHER

- 8 MM

9шт.

27

K300862

SUPPORT

BRACKET - left-hand rear

1шт.

28

K300863

SUPPORT

BRACKET - right-hand rear

1шт.

29

K603274

SCREW

SETSCREW - 5/8 UNC x 1-1/2", bracket to rear axle

8шт.

30

K19485

WASHER

- 5/8"

8шт.

31

K608245

STUD

- 3/8 UNC x 3"

1шт.

32

K19482

SPRING WASHER

WASHER - lock, 3/8"

2шт.

33

K627464

WASHER

- 10 MM, special

2шт.

34

K627465

WASHER

- 10 MM, special

2шт.

35

280136

NUT,3/8"-16, G8

2шт.
