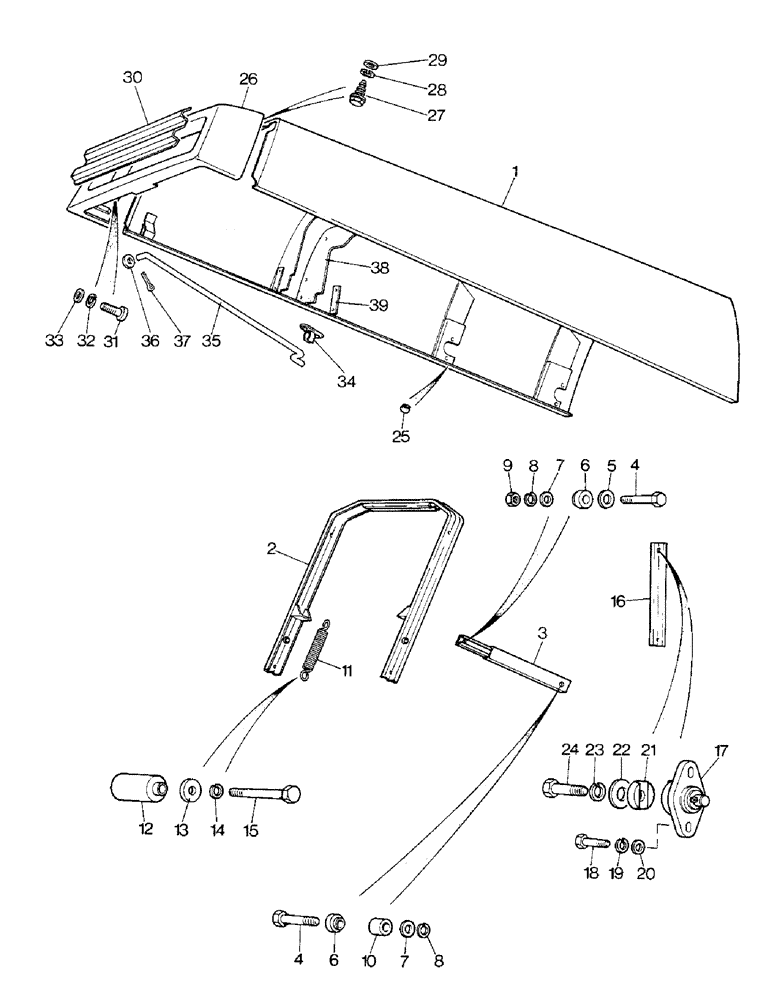

Запчасти Case IH 1690 (N02-3) - ENGINE TOP COVER AND HINGE, LOW PROFILE MODEL (08) - SHEET METAL

1

K300371

HOOD

COVER - top, engine

1шт.

2

K300438

LINK

- front

1шт.

3

K300420

SLIDE

STAY - front link, Serial Range: -11213469

2шт.

4

K650631

BOLT

- M6 x 35

4шт.

5

K301548

BUSHING

SPACER - 14 MM OD x 3 MM, Serial Range: -11213469

2шт.

6

K300922

BUSHING

SPACER - 14 MM OD x 7 MM, Serial Range: -11213469

4шт.

7

K651777

WASHER

- 6 MM

4шт.

8

K651847

WASHER, LOCK

WASHER - lock, 6 MM

4шт.

9

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

10

K301547

BUSHING

- stay bolt, Serial Range: -11213469

2шт.

11

K691724

SPRING

- tension

2шт.

12

K300419

PIN

ANCHOR PIN - spring

2шт.

13

K692200

WASHER

- 6 MM, special

2шт.

14

K651847

WASHER, LOCK

WASHER - lock, 6 MM

2шт.

15

K650801

BOLT

- M6 x 65, special

2шт.

16

K300450

LINK

- rear

2шт.

17

K304095

LINK

BRACKET - pivot

8шт.

18

K650628

BOLT

- M6 x 20

16шт.

19

K651847

WASHER, LOCK

WASHER - lock, 6 MM

16шт.

20

K19470

WASHER

- 6 MM

16шт.

21

K300910

WASHER

- 8 MM, special

8шт.

22

K692199

WASHER

- 8 MM, special

6шт.

22

K301561

WASHER

- 8 MM special

2шт.

23

K651848

WASHER

- lock, 8 MM

8шт.

24

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

6шт.

24

K650641

SCREW

BOLT - M8 x 16

2шт.

25

K916596

PLUG

- rubber

6шт.

26

K301533

GUARD

NOSE - top cover

1шт.

27

K624533

SCREW

- self-tapping, 8 MM

5шт.

28

K651848

WASHER

- lock, 8 MM

5шт.

29

K651778

WASHER

- 8 MM

5шт.

30

K301066

GUARD

GRILLE - upper

1шт.

31

K652464

SCREW

- M5 x 16

4шт.

32

K651846

WASHER, LOCK

WASHER - lock, 5 MM

4шт.

33

K626946

WASHER

- 5 MM, special

4шт.

34

K657140

CLIP

- retaining, Start Serial: 11213469

1шт.

35

K205019

ROD

- support, Start Serial: 11213469

1шт.

36

K626682

WASHER

- 5/16"

1шт.

37

K19528

PIN

- cotter, 3/32 x 5/8"

1шт.

38

K301228

BAFFLE

- radiator

2шт.

39

K301514

STRIP

- clamping

2шт.
