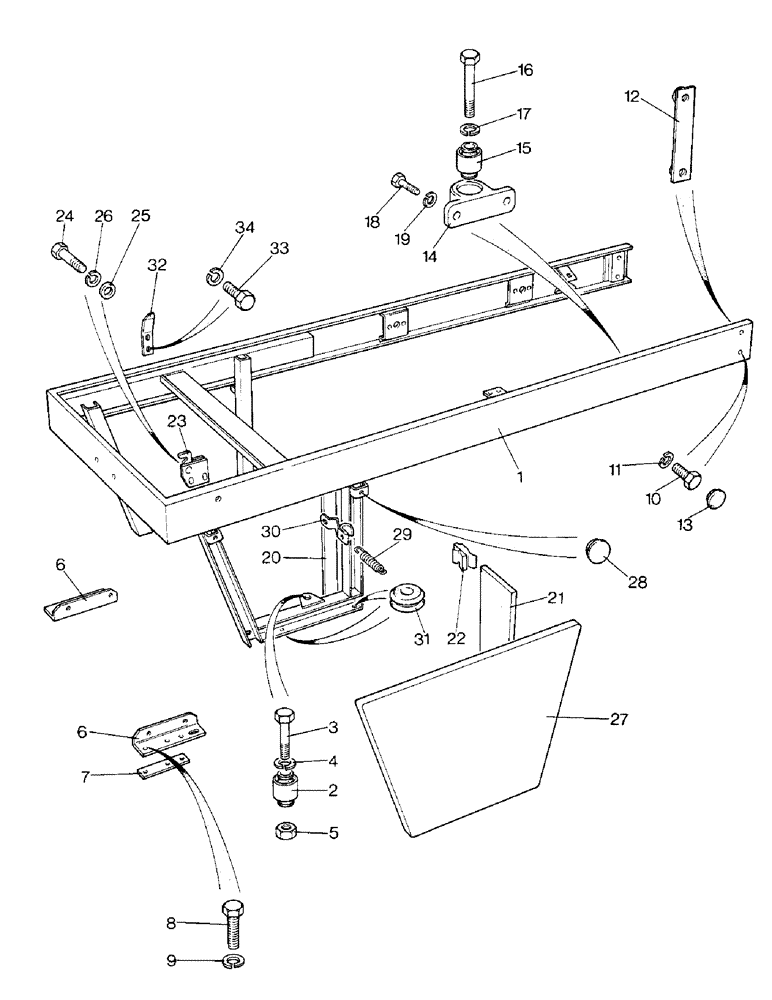

Запчасти Case IH 1690 (N02-1) - ENGINE SIDE COVER AND FRAME, LOW PROFILE MODEL (08) - SHEET METAL

1

K300712

SUPPORT

FRAME - engine cover

1шт.

2

K622851

BUSHING

MOUNTING - flexible, Serial Range: -11213469

2шт.

3

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

2шт.

4

K651848

WASHER

- lock, 8 MM

2шт.

5

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

2шт.

6

K300292

BRACKET

- left-hand, Serial Range: -11213469

1шт.

6

K300294

BRACKET

- right-hand, Serial Range: -11213469

1шт.

7

K300296

SHIM

PLATE - spacing, Serial Range: -11213469

2шт.

8

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

9

K19482

SPRING WASHER

WASHER - lock, 3/8"

4шт.

10

K654046

BOLT

SETSCREW - M8 x 16

4шт.

11

K651874

SPRING

WASHER - lock, 8 MM

4шт.

12

K302503

NUT

PLATE - M8

2шт.

13

K627992

PLUG

- plastic

4шт.

14

K201951

BRACKET

- mounting

2шт.

15

K622851

BUSHING

MOUNTING - flexible

2шт.

16

K650628

BOLT

- M6 x 18

4шт.

17

K651847

WASHER, LOCK

WASHER - lock, 6 MM

4шт.

18

K650648

BOLT

- M8 x 50

2шт.

19

K651848

WASHER

- lock, 8 MM

2шт.

20

K301073

STRIP

SEALING STRIP - radiator side

2шт.

21

K301072

SEAL

- side panel

2шт.

22

K621744

CLIP

- seal

8шт.

23

K300500

LOCK

- left-hand

1шт.

23

K600499

BOLT

LOCK - right-hand

1шт.

24

K650628

BOLT

- M6 x 20

4шт.

25

K651777

WASHER

- 6 MM

4шт.

26

K651847

WASHER, LOCK

WASHER - lock, 6 MM

4шт.

27

K300267

PANEL

- side

2шт.

28

K627771

BUTTON

PLUG - plastic

4шт.

29

K624940

SPRING

- side panel

2шт.

30

K915791

GRIP

- finger

2шт.

31

K627754

GROMMET

- frame

4шт.

32

K205214

PLATE

LOCATING PLATE - locating

2шт.

33

K651239

BOLT

- M8 x 14

4шт.

34

K651848

WASHER

- lock, 8 MM

4шт.
