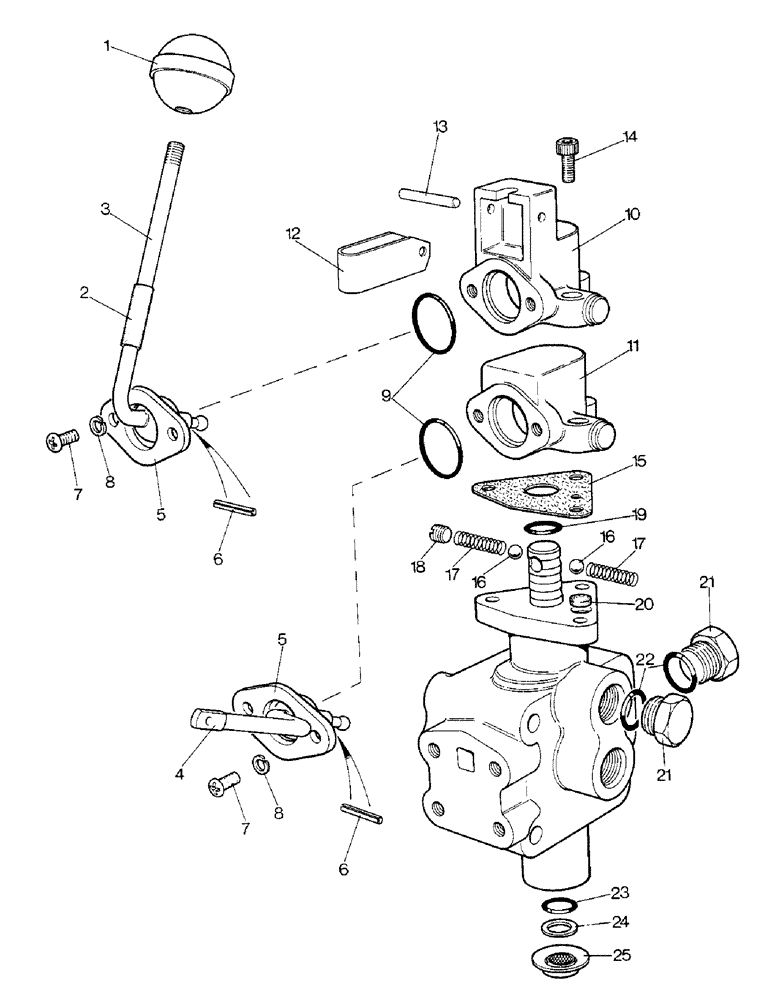

Запчасти Case IH 1690 (K25-1) - THREE WAY VALVE ASSEMBLY, HIGH PLATFORM, CAB, LOW PROFILE (07) - HYDRAULICS

K203379

VALVE

- three-way (Low Profile)

1шт.

K202568

VALVE

- three-way (High Platform, Cab), Includes Ref. 1 - 25

1шт.

1

K902270

KNOB

- lever (Low Profile)

1шт.

2

K202619

SLEEVE

RUBBER SLEEVE - lever (Low Profile)

1шт.

3

K203019

LEVER

- control (Low Profile)

1шт.

4

K202206

LEVER

- control (High Platform, Cab)

1шт.

5

K919613

SHIM

PLATE - lever retaining

1шт.

6

K943367

PIN

-, Serial Range: lever-cover

1шт.

7

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

- no. 10 UNF x 1/2"

2шт.

8

K626340

RING

WASHER - lock, 3/16"

2шт.

9

K16351

O-RING,3.53mm Thk x 24.99mm ID

- 1", internal

1шт.

10

K957351

COVER

- valve (Low Profile)

1шт.

11

K929862

COVER

- valve (High Platform, Cab)

1шт.

12

K304130

GUIDE

PLATE - guide (Low Profile)

1шт.

13

K623885

PIN

- roll, 3/16 x 1-1/2" (Low Profile)

1шт.

14

K606501

SCREW

- 1/4 UNC x 5/8"

3шт.

15

K944527

GASKET,0.15mm Thk

- cover

1шт.

16

K17063

BALL

STEEL BALL - 1/4"

2шт.

17

K625208

SPRING

- detent

2шт.

18

K606020

SCREW

- 5/16 UNC x 1/4"

1шт.

19

K625408

O-RING

- 7/16", ID

1шт.

20

K915393

FOAM

PAD - breather

1шт.

21

K948415

PLUG

- 3/4 UNF (High Platform, Cab)

1шт.

21

K948415

PLUG

- 3/4 UNF, special (Low Profile)

2шт.

K948415

PLUG

- 3/4 UNF, special (High Platform, Cab)

1шт.

22

K623589

O-RING

- 5/8", ID

2шт.

23

K625408

O-RING

- 7/16", ID

1шт.

24

K628059

RING,Split, 11.11mm ID x 15.88mm OD x 1.47mm Thk

BACK-UP RING - back-up

1шт.

25

K919826

BREATHER

- valve

1шт.
