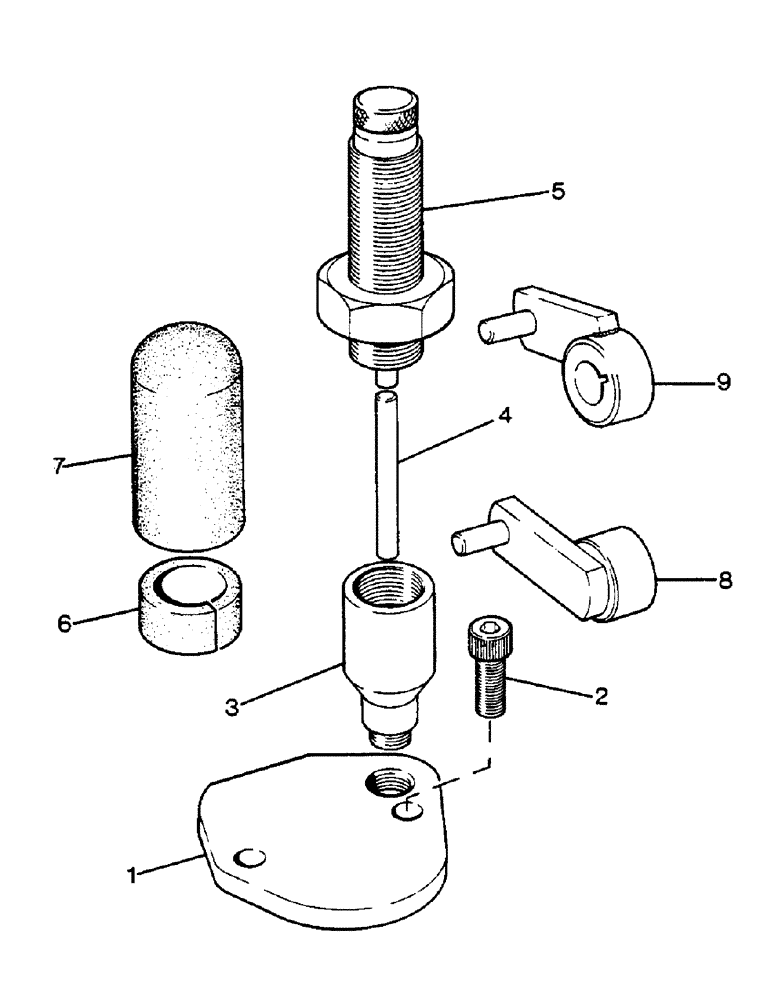

Запчасти Case IH 1690 (K23-1) - HYDRAULIC DAMPER KIT, HIGH PLATFORM, CAB, LOW PROFILE (07) - HYDRAULICS

UK5473

VALVE

DAMPER KIT - hydraulic control valve (High Platform, Cab)

1шт.

UK5497

VALVE

DAMPER KIT - hydraulic control valve (Low Profile), Includes Ref. 1 - 9

1шт.

1

K206302

COVER

PLATE - cover

1шт.

2

61-512

HEX SOC SCREW,5/16"-18 x 3/4"

- socket head

1шт.

3

K206301

ADAPTER

- damper

1шт.

4

K206304

ROD

- damper

1шт.

5

K304968

CUSHION

DAMPER - hydraulic

1шт.

6

K206517

STRIP

SLEEVE - split, rubber

1шт.

7

K947518

COVER

- damper

1шт.

8

K206608

LEVER

ASSEMBLY - valve, upper (High Platform, Cab)

1шт.

9

K206609

LEVER

ASSEMBLY - valve, lower (High Platform, Cab)

1шт.
