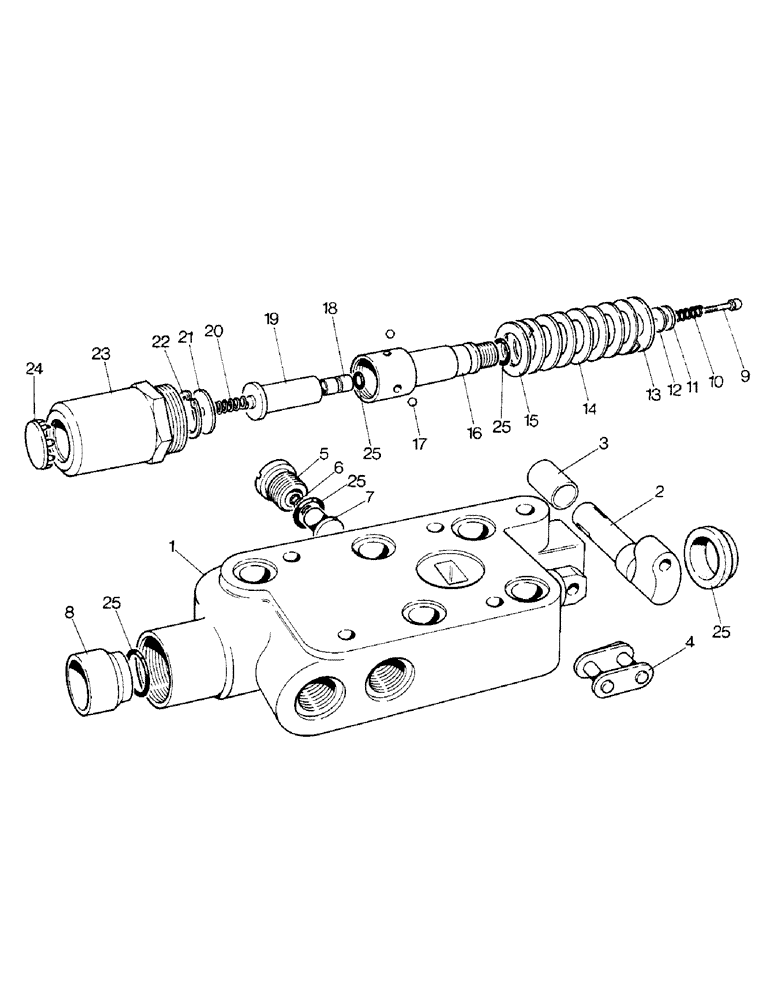

Запчасти Case IH 1690 (K22-1) - REMOTE VALVE ASSEMBLIES (07) - HYDRAULICS

1

K956421

VALVE

CONTROL VALVE ASSEMBLY - detented, Includes Ref. 2 - 25

1шт.

2

K965796

LEVER

SPINGLE - hand lever

1шт.

3

K965797

BUSHING

BUSH - valve body

1шт.

4

K963587

LINK

-, Serial Range: spindle-spool

1шт.

5

K965740

PLUG

- plunger

1шт.

6

K962067

SPRING

- plunger

1шт.

7

K962066

PLUNGER

- valve

1шт.

8

K962060

BUSHING

- body

1шт.

9

K965834

VALVE POPPET

VALVE - restrictor

1шт.

10

K963580

SPRING

- valve

1шт.

11

K962080

SHIM,.010" Thk

1шт.

11

K962081

SHIM,.005" Thk

1шт.

12

K964499

PLATE

RESTRICTOR - valve

1шт.

13

K962082

DISC

WASHER - spring

1шт.

14

K964904

SPRING

- retainer

1шт.

15

K962078

WASHER

- spring

1шт.

16

K964500

RETAINER

- plunger

1шт.

17

K11483

BALL

- steel

3шт.

18

K962071

PISTON

- valve

1шт.

19

K963574

PLUNGER

- piston

1шт.

20

K962073

SPRING

- plunger

1шт.

21

K962079

WASHER

- plunger

1шт.

22

K962076

RING, SNAP

RING - snap

1шт.

23

K963575

CAP

- body

1шт.

24

K962074

PLUG

- cap

1шт.

25

K962083

GASKET KIT

KIT - seals (Replaces K965741)

1шт.
