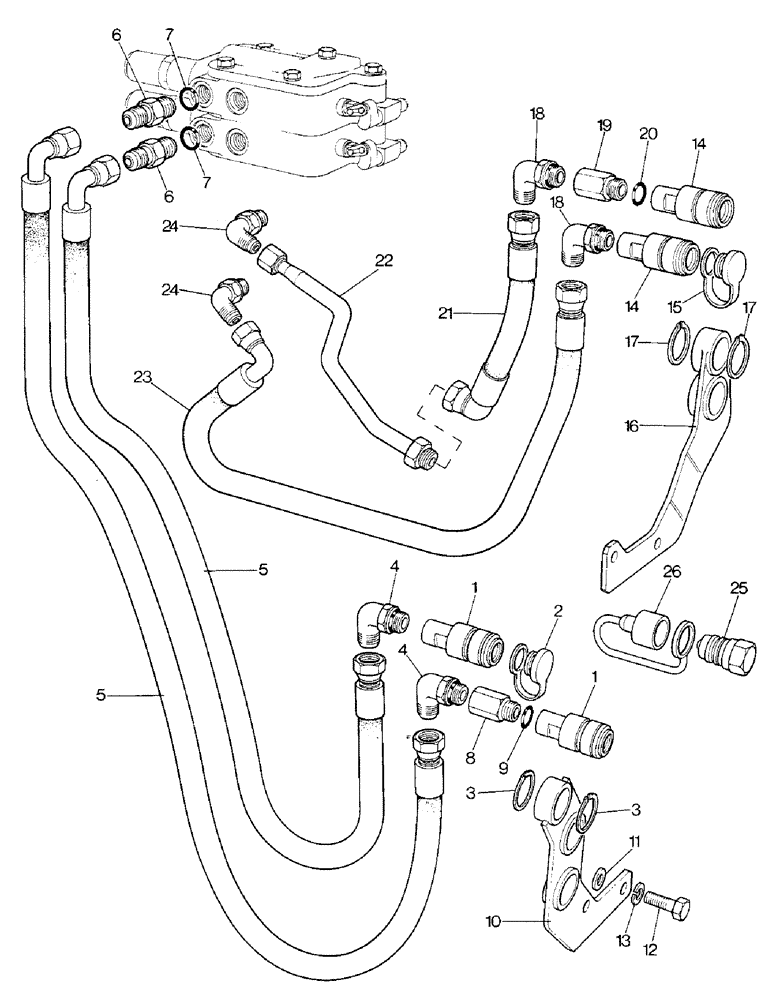

Запчасти Case IH 1690 (K21-1) - PIPES AND COUPLINGS FOR TWO SECTION REMOTE VALVE, HIGH PLATFORM, CAB, LOW PROFILE (07) - HYDRAULICS

UK4344

BREAKER POINTS

PIPES AND COUPLINGS UNIT - first valve (Low Profile)

1шт.

UK5242

COUPLING, BREAK AWAY

PIPES AND COUPLINGS UNIT - first valve (High Platform, Cab), Includes Ref. 1 - 5

1шт.

1

K201770

COUPLING, BREAK AWAY

QUICK RELEASE COUPLING - tractor half

2шт.

2

K950297

PLUG

DUST PLUG - tractor coupling

2шт.

3

K621510

SNAP RING,#150, Ext

Ring, Snap, (High Platform, Cab) #150, Ext

2шт.

4

K622113

FITTING

ELBOW - 90 degree, 7/8 UNF

2шт.

5

K202622

HOSE

PIPE - flexible, 3/4-7/8 UNF x 24" (Low Profile)

1шт.

5

K201876

HOSE

PIPE - flexible, 3/4-7/8 UNF x 28" (Low Profile)

1шт.

5

K205237

HOSE

PIPE - flexible, 3/4-7/8 UNF x 22-1/2" (High Platform, Cab)

2шт.

6

K626039

FITTING

CONNECTOR - straight, 3/4, UNF

2шт.

7

K623591

O-RING

- 5/8", ID, Includes Ref. 8 and 9

2шт.

8

K626081

FITTING

EXTENSION - 7/8 UNF (Low Profile)

1шт.

9

K623592

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4", ID (Low Profile)

1шт.

UK4345

BREAKER POINTS

BRACKET UNIT - mounting, Includes Ref. 10 - 13

1шт.

10

K202578

BRACKET

MOUNTING BRACKET - left-hand

1шт.

11

K626686

WASHER

- 1/2"

2шт.

12

K603141

SCREW

SETSCREW - 1/2 UNC x 1-1/2"

2шт.

13

K626345

LOCK WASHER

WASHER - lock, 1/2"

2шт.

UK5241

PIPES AND COUPLINGS UNIT - second valve (Low Profile)

1шт.

UK4347

BREAKER POINTS

PIPES AND COUPLINGS UNIT - second valve (High Platform, Cab), Includes Ref. 14 - 22

1шт.

14

K201770

COUPLING, BREAK AWAY

QUICK RELEASE COUPLING - tractor half

2шт.

15

K950297

PLUG

DUST PLUG - tractor coupling

2шт.

16

K202430

BRACKET

MOUNTING BRACKET - right-hand

1шт.

17

K621510

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

4шт.

18

K622113

FITTING

ELBOW - 90 degree, 7/8 UNF (Low Profile)

2шт.

19

K626081

FITTING

EXTENSION - 7/8 UNF (Low Profile)

1шт.

20

K623592

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4", ID (Low Profile)

1шт.

21

K201520

HOSE

PIPE - flexible, 7/8 UNF x 7-1/2"

2шт.

22

K201775

PIPE

- hydraulic (Low Profile)

1шт.

23

K202622

HOSE

PIPE - flexible, Includes Ref. 24

1шт.

23

K202605

HOSE

PIPE - flexible, 3/4 - 7/8 UNF x 15" (High Platform, Cab)

1шт.

23

K202604

HOSE

PIPE - flexible, 3/4 - 7/8 UNF x 17-1/2" (High Platform, Cab)

1шт.

24

K622114

FITTING

ELBOW - 90 degree, 3/4 UNF

2шт.

25

K200646

COUPLING, BREAK AWAY

QUICK RELEASE COUPLING - implement half, Includes Ref. 26

1шт.

26

K200645

CAP

DUST COVER - implement coupling

1шт.
