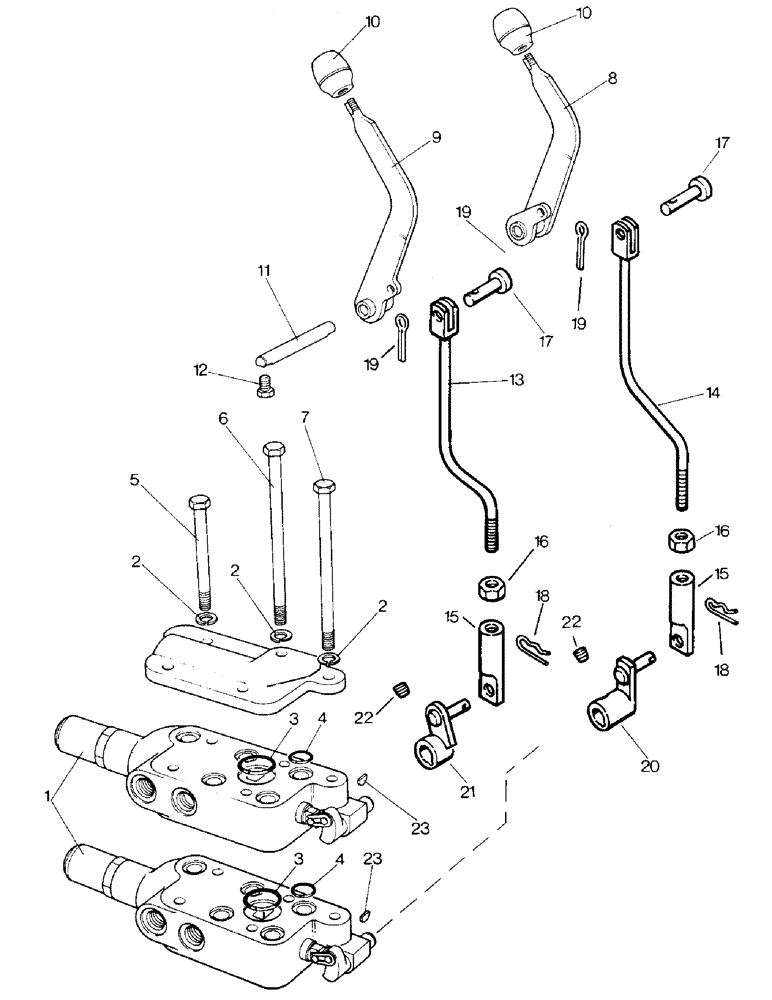

Запчасти Case IH 1690 (K19-3) - TWO SECTION REMOTE VALVE, P.I.N. 11212527 AND AFTER, HIGH PLATFORM, CAB MODEL (07) - HYDRAULICS

UK5024

VALVE

UNIT - detented valve, Includes Ref. 1

2шт.

1

K956421

VALVE

ASSEMBLY - remote, See figure K22

1шт.

UK5023

FITTING

UNIT - valve, Includes Ref. 2 - 7

1шт.

2

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

3

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

- 1-13/16", internal

2шт.

4

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 1-1/16", internal

10шт.

5

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

2шт.

6

113-2252

BOLT,Hex, 3/8" - 16 x 7-1/4", Gr 5

- 3/8 UNC x 7-1/4"

2шт.

7

113-2253

BOLT,Hex, 3/8" - 16 x 7-3/4", Gr 5

- 3/8 UNC x 7-3/4"

1шт.

UK4379

VALVE

CONTROL UNIT - valve, Includes Ref. 8 - 23

1шт.

8

K202888

LEVER

HAND LEVER - control

1шт.

9

K202886

LEVER

HAND LEVER - control

1шт.

10

K950493

KNOB

- hand lever

2шт.

11

K950863

SHAFT

- pivot

1шт.

12

K613984

SCREW

SETSCREW - no. 10 UNF x 1/2"

2шт.

13

K205004

ROD

- control, upper

1шт.

14

K205006

ROD

- control, lower

1шт.

15

K204970

ROD

FORK END - rod

2шт.

16

87016560

JAM NUT,Jam, 3/8"-16, G5

LOCKNUT - 3/8 UNC

2шт.

17

K625942

PIN

CLEVIS PIN - 1/4 x 3/4"

2шт.

18

K950865

CLIP

- spring

2шт.

19

K623605

PIN

SPLIT PIN - 1/16 x 1/2"

2шт.

20

K204968

LEVER

- bellcrank

1шт.

21

K204967

LEVER

- bellcrank

1шт.

22

K616302

SET SCREW

SETSCREW - 5/16 UNF x 3/8"

2шт.

23

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

(No. 404) #3, 1/8" x 1/2"

2шт.

UK4344

BREAKER POINTS

PIPES AND COUPLINGS UNIT - See figure K21

1шт.

UK4347

BREAKER POINTS

PIPES AND COUPLINGS UNIT - See figure K21

1шт.

K260819

KIT

CONVERSION KIT - single section to a two section remote valve

1шт.
