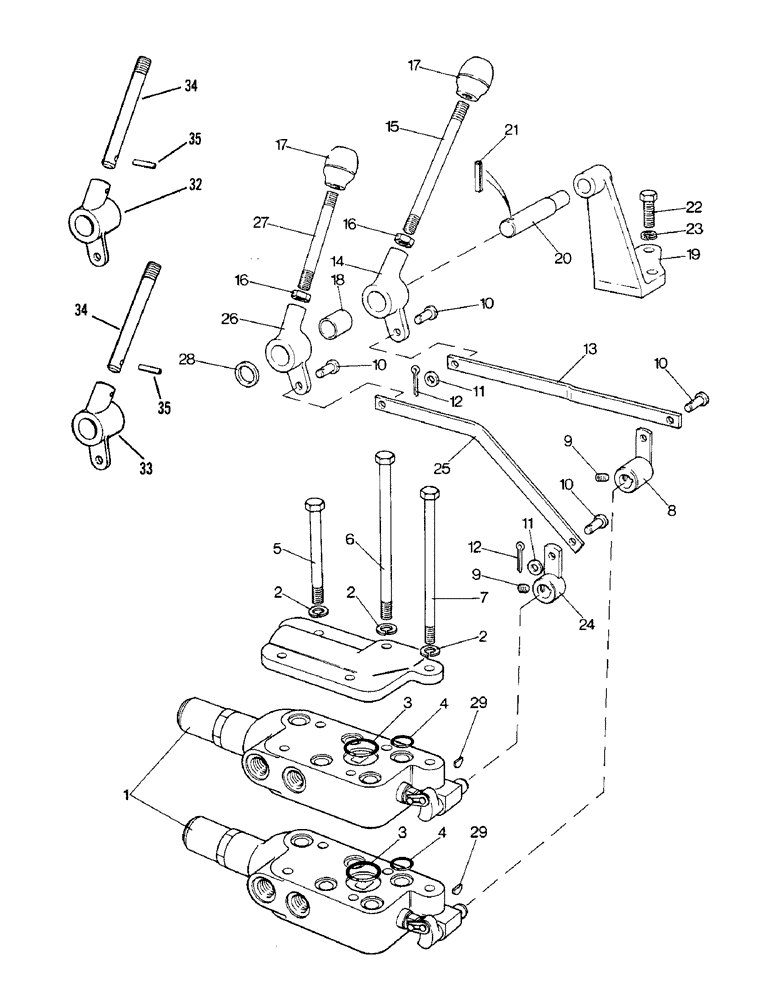

Запчасти Case IH 1690 (K18-1) - TWO SECTION REMOTE VALVE, LOW PROFILE MODEL (07) - HYDRAULICS

UK5024

VALVE

NUT - detented valve, Includes Ref. 1

2шт.

1

K956421

VALVE

ASSEMBLY - See Fig. K20

1шт.

UK5023

FITTING

UNIT - valve, Includes Ref. 2 - 7

1шт.

2

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

3

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

- 1-13/16", internal

2шт.

4

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 1-1/16", internal

10шт.

5

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

2шт.

6

113-2252

BOLT,Hex, 3/8" - 16 x 7-1/4", Gr 5

- 3/8 UNC x 7-1/4"

2шт.

7

113-2253

BOLT,Hex, 3/8" - 16 x 7-3/4", Gr 5

- 3/8 UNC x 7-3/4"

1шт.

UK4373

CONTROL

S UNIT - remote, Includes Ref. 8 - 35

1шт.

8

K203190

LEVER

- hand, lower valve

1шт.

9

K616302

SET SCREW

SETSCREW - 5/16 UNF x 3/8"

2шт.

10

K625965

PIN

CLEVIS PIN - 1/4 x 3/8"

4шт.

11

K19470

WASHER

- 1/4"

4шт.

12

132-9

COTTER PIN

PIN - cotter, 1/16 x 1"

4шт.

13

K206271

LINK

- control (Replaces K203193)

1шт.

14

K203194

HANDLE

BELLCRANK - lower valve lever, Serial Range: -11213310

1шт.

15

K202087

LEVER

- hand, lower valve), Serial Range: -11213310

1шт.

16

87016560

JAM NUT,Jam, 3/8"-16, G5

LOCKNUT - 3/8 UNC (Used with ref 15 and 27)

2шт.

17

K950493

KNOB

- lever

2шт.

18

K621377

BUSHING

- pivot

2шт.

19

K203511

SUPPORT

BRACKET - lever shaft

1шт.

20

K203195

PIN

- pivot

1шт.

21

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

22

113-184

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

SETSCREW - 5/16 UNC x 1-1/8"

3шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

24

K203197

LEVER

- hand, upper valve

1шт.

25

K206272

LINK

- control (Replaces K203290)

1шт.

26

K203196

HANDLE

BELLCRANK - upper valve lever, Serial Range: -11213310

1шт.

27

K260788

LEVER

- hand, upper valve, (Replaces K202085), Serial Range: -11213310

1шт.

28

K19475

WASHER

- 5/8"

2шт.

29

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

(No. 404) #3, 1/8" x 1/2"

2шт.

32

K205228

COLLAR

BELLCRANK - lower valve lever, Start Serial: 11213310

1шт.

33

K205227

COLLAR

BELLCRANK - upper valve lever, Start Serial: 11213310

1шт.

34

K205676

LEVER

- hand, upper and lower valve, Start Serial: 11213310

2шт.

35

138-55

LOCK PIN,1/8" x 5/8", Slotted

PIN, , Used with Ref. 32 and 33 1/8" x 5/8", Slotted

2шт.

UK4344

BREAKER POINTS

PIPE AND CONTROL UNIT - See figure K21

1шт.

UK4345

BREAKER POINTS

MOUNTING BRACKET UNIT - See figure K21

1шт.

UK4346

CAB

PIPE AND COUPLING UNIT - See figure K21

1шт.

K260846

KIT

CONVERSION KIT - single action to a two section remote valve, Serial Range: -11212527

1шт.

K260824

KIT

CONVERSION KIT - single section to a two section remote valve, Start Serial: 11212527

1шт.
