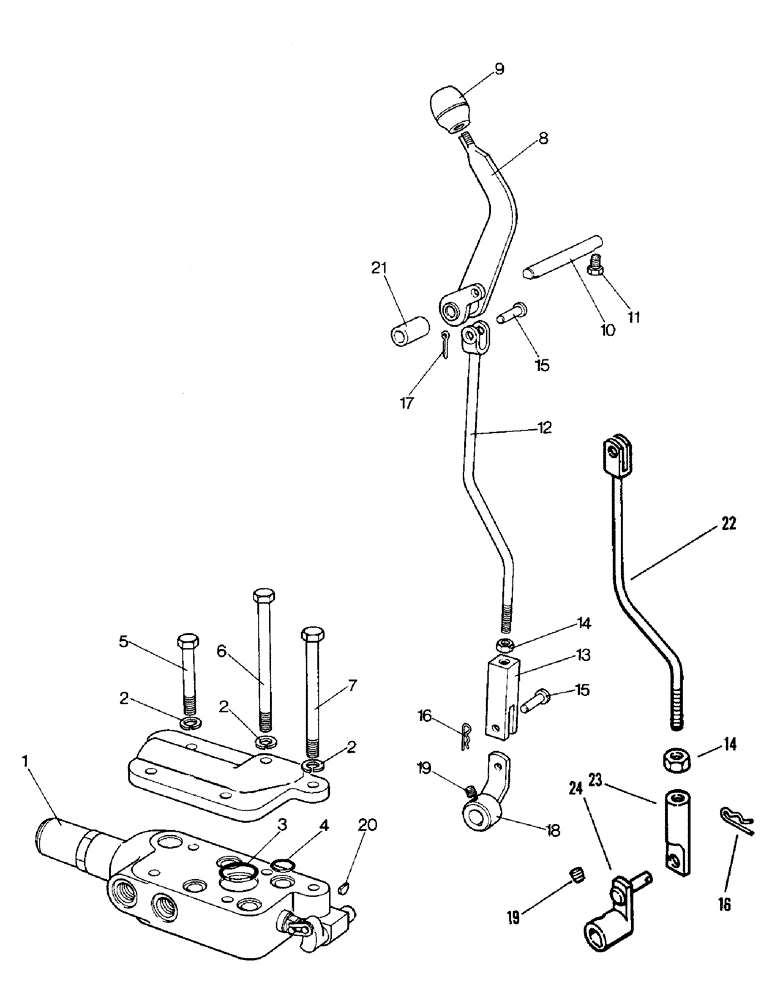

Запчасти Case IH 1690 (K17-1) - SINGLE REMOTE VALVE, HIGH PLATFORM, CAB MODEL (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
UK5024
VALVE
NUT - detented valve, Includes Ref. 1
1шт.
1
K956421
VALVE
ASSEMBLY - See Fig. K22
1шт.
UK5022
VALVE
FITTING UNIT - valve, Includes Ref. 2 - 7
1шт.
2
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
5шт.
3
K623588
O-RING,2.69mm Thk x 29.97mm ID, 75 Duro
- 1-3/16", internal
1шт.
4
KK24852
O-RING - 1-1/16", internal
5шт.
5
113-248
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5
2шт.
6
113-258
BOLT,Hex, 3/8" - 16 x 6", Gr 5
1шт.
7
113-2232
BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5
- 3/8 UNC x 5-1/2"
2шт.
UK5035
VALVE
CONTROL UNIT - valve, Includes Ref. 8 - 24
1шт.
8
K202888
LEVER
HAND LEVER - control
1шт.
9
K950493
KNOB
- lever
1шт.
10
K950863
SHAFT
- pivot
1шт.
11
K613984
SCREW
SETSCREW - no. 10 UNF x 1/2"
2шт.
12
K203025
ROD
- control, Serial Range: -11212527
1шт.
When replacing ref 12 with ref 22 on tractors prior to P.I.N. 11212527, also order ref 23 and 24.
1шт.
13
K202898
ROD
FORK END - 3/8 UNC, Serial Range: -11212527
1шт.
When replacing ref 12 with ref 22 on tractors prior to P.I.N. 11212527, also order ref 23 and 24.
1шт.
14
87016560
JAM NUT,Jam, 3/8"-16, G5
LOCKNUT - 3/8 UNC
1шт.
15
K625942
PIN
CLEVIS PIN - 1/4 x 3/4"
1шт.
16
K950865
CLIP
1шт.
17
K623605
PIN
SPLIT PIN - 1/16 x 1/2"
1шт.
18
K202882
LEVER
- bellcrank, Serial Range: -11212527
1шт.
When replacing ref 12 with ref 22 on tractors prior to P.I.N. 11212527, also order ref 23 and 24.
1шт.
19
K616302
SET SCREW
SCREW - 5/16 UNF x 3/8"
1шт.
20
126-9
WOODRUFF KEY,#3, 1/8" x 1/2"
(No. 404) #3, 1/8" x 1/2"
1шт.
21
K950898
BUSHING
SPACER - pivot shaft
1шт.
22
K205006
ROD
- spacer, Start Serial: 11212527
1шт.
23
K204969
ROD
FORK END - 3/8 UNC, Start Serial: 11212527
1шт.
24
K204968
LEVER
- bellcrank, Start Serial: 11212527
1шт.
UK4344
BREAKER POINTS
PIPE AND COUPLING UNIT - See figure K20
1шт.
UK4345
BREAKER POINTS
MOUNTING BRACKET UNIT - See figure K20
1шт.
Выбрано товаров: 32
