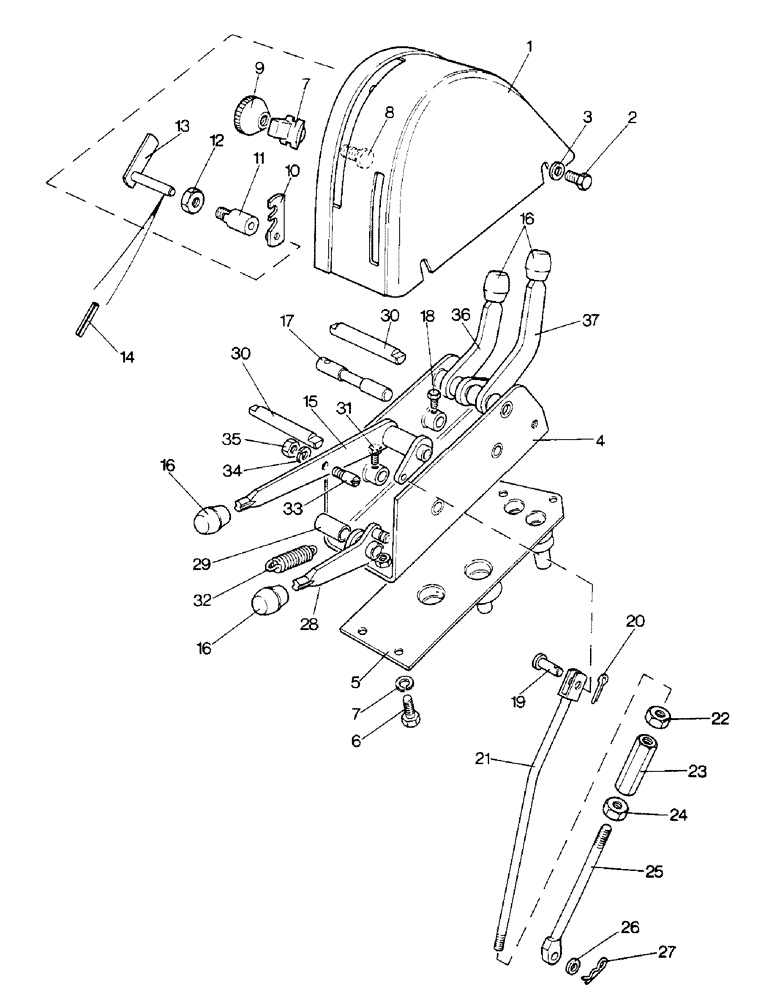

Запчасти Case IH 1690 (K15-1) - CONTROL LEVERS AND QUADRANT, HIGH PLATFORM, CAB MODEL (07) - HYDRAULICS

1

K950732

PANEL

QUADRANT - lever

1шт.

2

K650641

SCREW

SETSCREW - M8 x 16

7шт.

3

K626682

WASHER

- 5/16"

4шт.

4

K203007

LEVER

HOUSING - control levers

1шт.

5

K204930

BOOT

MOUNT - lever housing

1шт.

6

K651848

WASHER

- lock, 5/16"

3шт.

7

K947403

BRACKET

GUIDE - finger

1шт.

8

K909577

STUD

BOLT - 5/16 UNF, special

1шт.

9

K921826

SERRATED NUT

HAND NUT - 5/16 UNF

1шт.

10

K204007

CATCH

- control lever

1шт.

11

K202988

BUSHING

- special

1шт.

12

K204006

NUT

- 7/16 UNF

1шт.

13

K204000

LEVER

- catch

1шт.

14

K623973

SPRING

PIN - roll, 3/32 x 9/16", Serial Range: lever-catch

1шт.

15

K202464

LEVER

CONTROL LEVER - hydraulics

1шт.

16

K950493

KNOB

- control lever

3шт.

17

K950862

SHAFT

- lever pivot

1шт.

18

K619204

SCREW

SETSCREW - no. 10 UNF x 1/2"

1шт.

19

K950866

LARGE PIN

CLEVIS PIN - 1/4 x 13/16", Serial Range: lever-rod

1шт.

20

K623605

PIN

- cotter, 1/16 x 1/2"

1шт.

21

K203954

ADJUSTER

CONTROL ROD - long

1шт.

22

K616982

NUT

- 3/8 UNF

1шт.

23

K950846

NUT

ADJUSTING NUT - 3/8 UNF

1шт.

24

K622808

NUT

- 3/8 UNF, left-hand thread

1шт.

25

K203958

ROD

CONTROL ROD - short

1шт.

26

K19470

WASHER

- 1/4"

1шт.

27

K950865

CLIP

SPRING CLIP - control rod

1шт.

28

K950769

LEVER

CONTROL LEVER - dump valve

1шт.

29

K950898

BUSHING

SPACER - control lever

1шт.

30

K950863

SHAFT

- lever pivot

2шт.

31

K616414

SCREW

SETSCREW - no. 10 UNF x 1/2"

1шт.

32

K624922

SPRING

RETURN SPRING - lever

1шт.

33

K952336

STOP

STUD - 1/4 UNC, special

1шт.

34

K626341

SPRING WASHER

WASHER - lock, 1/4"

1шт.

35

K607043

NUT

- 1/4 UNC

1шт.

36

K202888

LEVER

- live take-off valve

1шт.

37

K202886

LEVER

- live take-off valve

1шт.
