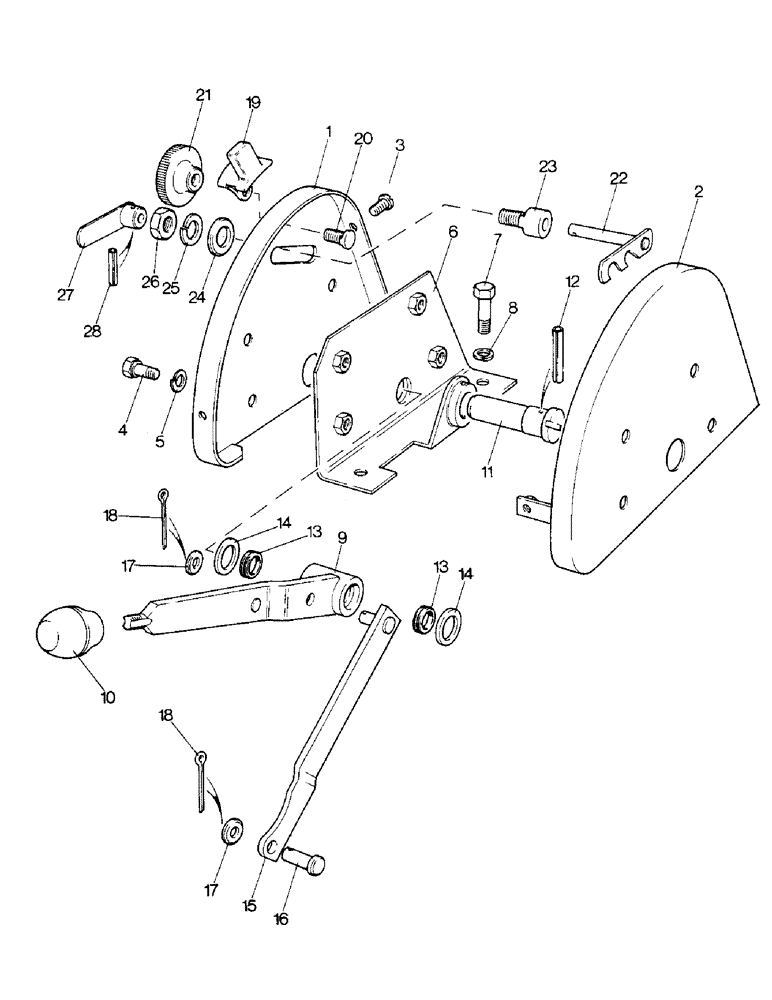

Запчасти Case IH 1690 (K14-1) - CONTROL LEVERS AND QUADRANT, LOW PROFILE MODEL (07) - HYDRAULICS

1

K202933

QUADRANT

- control lever

1шт.

2

K203536

QUADRANT

BACKPLATE - quadrant

1шт.

3

K652462

PAN

SCREW - M5 x 10

3шт.

4

K650632

BOLT

- M8 x 10, quadrant to support bracket

4шт.

5

K651848

WASHER

- lock, 8 MM, quadrant to support bracket

4шт.

6

K301284

SUPPORT

BRACKET - support

1шт.

7

K650342

BOLT

- M8 x 20, support bracket to axle cover

2шт.

8

K651848

WASHER

- 8 MM, support bracket to axle cover

2шт.

9

K202930

LEVER

CONTROL LEVER - hydraulics

1шт.

10

K950493

KNOB

- lever

1шт.

11

K202929

PIN

- pivot

1шт.

12

K690976

PIN

- roll, 1/8 x 1"

1шт.

13

K623424

RING

- sealing, 1/2", ID

2шт.

14

K627330

BUSHING

WASHER - 5/8", special

2шт.

15

K203962

LINK

- control lever

1шт.

16

K625965

PIN

- clevis

1шт.

17

K19470

WASHER

- 1/4"

3шт.

18

K19524

PIN

- cotter, 1/16"

2шт.

19

K947403

BRACKET

GUIDE - finger

1шт.

20

K909577

STUD

- 5/16 UNF, special

1шт.

21

K921826

SERRATED NUT

HAND NUT - 5/16 UNF

1шт.

22

K202985

CATCH

- lever

1шт.

23

K202988

BUSHING

- catch

1шт.

24

K626314

WASHER

- 7/16"

1шт.

25

K626344

WASHER, LOCK

WASHER - lock, 7/16"

1шт.

26

K616968

NUT

- 7/16 UNF

1шт.

27

K952328

CATCH

LEVER - catch

1шт.

28

K623973

SPRING

PIN - roll, 3/32 x 9/16"

1шт.
