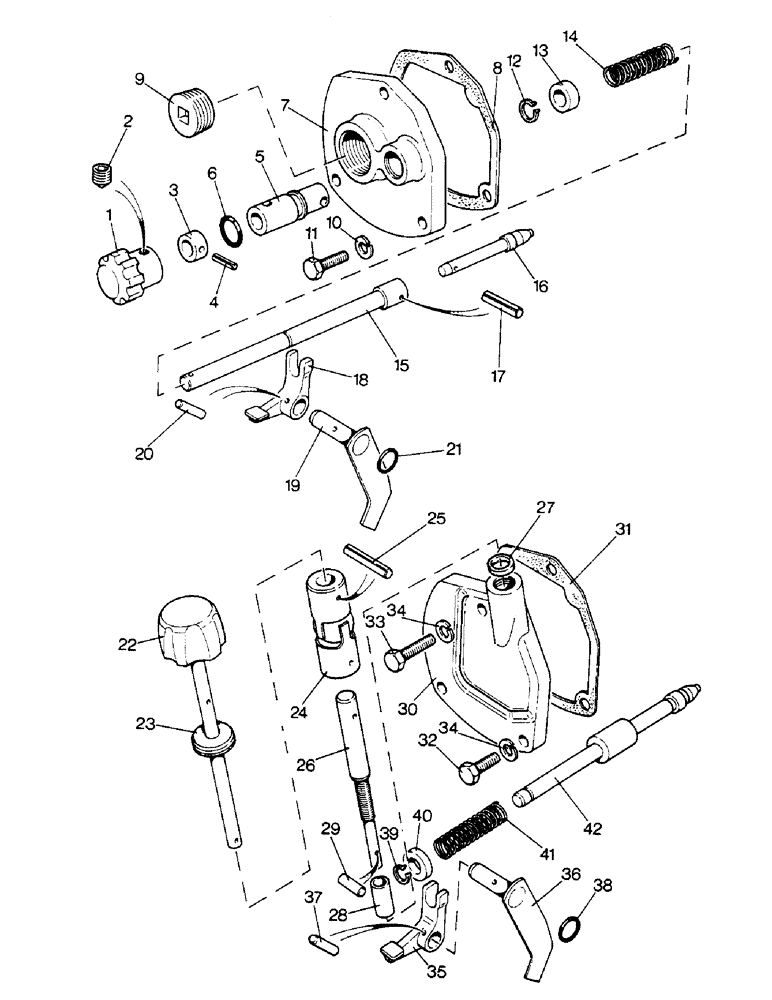

Запчасти Case IH 1690 (K13-1) - RATE LOWERING CONTROL, HIGH PLATFORM, CAB, LOW PROFILE (07) - HYDRAULICS

1

K203592

KNOB

- lever (Low Profile)

1шт.

2

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SETSCREW - 1/4 UNC x 1/4" (Low Profile) (Replaces K606300)

1шт.

3

K207044

COLLAR

- knob (Low Profile) (Replaces K204330)

1шт.

4

K623933

SPRING

PIN - roll, 1/8 x 5/8" (Low Profile)

1шт.

5

K203588

GUIDE

- adjusting (Low Profile)

1шт.

6

K625405

O-RING,0.549" ID x 0.103" Width

- 9/16" ID (Low Profile)

1шт.

7

K203587

LEVER

COVER - pivot fork (Low Profile)

1шт.

8

K202414

GASKET,1.59mm Thk

- cover (Low Profile)

1шт.

9

K12362

PLUG

- 1" BSP, tapered (Low Profile)

1шт.

10

K19481

SPRING WASHER

WASHER - lock, 5/16" (Low Profile)

3шт.

11

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW - 5/16 UNC x 1" (Low Profile)

3шт.

12

K621562

RING, SNAP

RING - snap, 3/8" (Low Profile)

1шт.

13

K627480

COLLAR

- thrust (Low Profile) (Replaces K202428)

1шт.

14

K625050

SPRING

- return (Low Profile)

1шт.

15

K203589

SPINDLE

- needle valve (Low Profile)

1шт.

16

K957135

NEEDLE

NOSE - needle valve (Low Profile)

1шт.

17

K623976

SPRING

PIN - roll, 3/32 x 3/4" (Low Profile)

1шт.

18

K202416

FORK

- spindle (Low Profile)

1шт.

19

K202417

SHAFT

PIVOT SHAFT - pivot (Low Profile)

1шт.

20

K623936

PIN, ROLL

PIN - dowel, 1/8 x 3/4" (Low Profile)

1шт.

21

K24554

O-RING

- 3/8", ID (Low Profile)

1шт.

22

K203497

KNOB

- lowering control (With Shaft) (High Platform, Cab)

1шт.

23

K627704

GROMMET

- rod, 7/8" (High Platform, Cab)

1шт.

24

K203623

JOINT

- universal (High Platform, Cab)

1шт.

25

K690976

PIN

- roll, 1/8 x 1" (High Platform, Cab)

2шт.

26

K202421

SCREW

SPINDLE - adjusting (High Platform, Cab)

1шт.

27

K623681

WIPER

RING - sealing, 1/2", ID (High Platform, Cab)

1шт.

28

K202422

BLOCK

TUBE - spacer (High Platform, Cab)

1шт.

29

K623728

PIN

- dowel, 3/32 x 1/2" (High Platform, Cab)

1шт.

30

K203105

COVER

- adjusting spindle (High Platform, Cab)

1шт.

31

K202414

GASKET,1.59mm Thk

- cover (High Platform, Cab)

1шт.

32

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW - 5/16 UNC x 1" (High Platform Cab)

2шт.

33

K602809

SCREW

SETSCREW - 5/16 UNC x 1-1/2" (High Platform, Cab)

1шт.

34

K19481

SPRING WASHER

WASHER - lock, 5/16" (High Platform, Cab)

3шт.

35

K202416

FORK

- actuating (High Platform, Cab)

1шт.

36

K202417

SHAFT

- pivot (High Platform, Cab)

1шт.

37

K623936

PIN, ROLL

PIN - dowel, 1/8 x 3/4" (High Platform, Cab)

1шт.

38

K24554

O-RING

- 3/8", ID (High Platform, Cab)

1шт.

39

K621562

RING, SNAP

RING - snap, 3/8" (High Platform, Cab)

1шт.

40

K202428

COLLAR

- thrust (High Platform, Cab)

1шт.

41

K625050

SPRING

- return (High Platform, Cab)

1шт.

42

K202425

NEEDLE

VALVE - needle (High Platform, Cab)

1шт.
