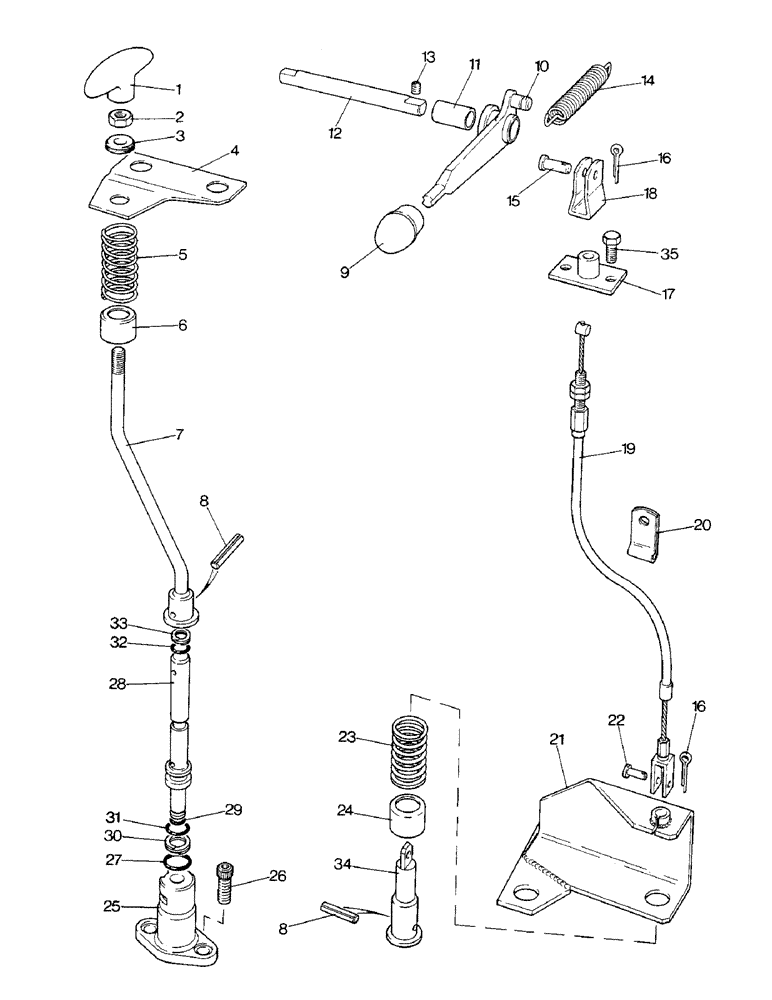

Запчасти Case IH 1690 (K11-1) - DUMP VALVE, HIGH PLATFORM, CAB, LOW PROFILE (07) - HYDRAULICS

1

K955948

KNOB

- lever (Low Profile)

1шт.

2

280136

NUT,3/8"-16, G8

(Low Profile) 3/8"-16, G8

1шт.

3

K627718

GROMMET,3/8" ID x 5/8" Groove Dia

- rod, 5/8" (Low Profile)

1шт.

4

K301423

BRACKET

- control rod (Low Profile)

1шт.

5

K11034

SPRING

- return (Low Profile)

1шт.

6

K951940

CAP

- rod (Low Profile)

1шт.

7

K202762

ROD

- control (Low Profile)

1шт.

8

K623933

SPRING

PIN - roll, 1/8 x 5/8"

1шт.

9

K950493

KNOB

- lever (High Platform, Cab)

1шт.

10

K950769

LEVER

- control (High Platform, Cab)

1шт.

11

K950898

BUSHING

SPACER - lever (High Platform, Cab)

1шт.

12

K950863

SHAFT

- lever (High Platform, Cab)

1шт.

13

K616414

SCREW

SETSCREW - no. 10 UNF x 1/2"

1шт.

14

K624922

SPRING

- return (High Platform, Cab)

1шт.

15

K950866

LARGE PIN

PIN - clevis, 1/4 x 13/16" (High Platform, Cab)

1шт.

16

K623605

PIN

- cotter, 1/16 x 1/2" (High Platform, Cab)

2шт.

17

K205342

CABLE

SUPPORT - cable (High Platform, Cab)

1шт.

18

K951948

STIRRUP

FORK END - cable (High Platform, Cab)

1шт.

19

K951944

CABLE

- inner and outer (High Platform, Cab)

1шт.

20

K621603

CLIP

- cable

1шт.

21

K951941

BRACKET

SUPPORT BRACKET - cable (High Platform, Cab)

1шт.

22

K625959

PIN

- clevis, 3/16 x 5/8" (High Platform, Cab)

1шт.

23

K625122

SPRING

RETURN SPRING - return (High Platform, Cab)

1шт.

24

K951940

CAP

- extension

1шт.

K964867

VALVE

ASSEMBLY - dump, Includes Ref. 25 - 33

1шт.

K964568

SEAL

KIT - seal

1шт.

25

K944535

VALVE

BODY - valve

1шт.

26

K606552

SCREW

CAPSCREW - 5/16 UNC x 3/4"

2шт.

27

K623647

O-RING,0.739" ID x 0.879" OD x 0.7"

-018, 70 Duro, .739" ID x .070" Thk

1шт.

28

K944536

PLUNGER

- valve

1шт.

29

K625411

SEALING RING

O-RING - 1/4", ID

1шт.

30

K628059

RING,Split, 11.11mm ID x 15.88mm OD x 1.47mm Thk

BACK-UP RING - 5/8", ID

1шт.

31

K625408

O-RING

- 7/16", ID

1шт.

32

K625400

O-RING,0.07" Thk x 0.239" ID

- 1/4", ID

1шт.

33

K628060

RING,Split, 6.35mm ID x 9.53mm OD x 1.47mm Thk

BACK-UP RING - 3/8", ID

1шт.

34

K951939

VALVE

EXTENSION - cable (High Platform, Cab)

1шт.

35

K653377

SCREW

SETSCREW - M6 x 12 (High Platform, Cab)

2шт.
