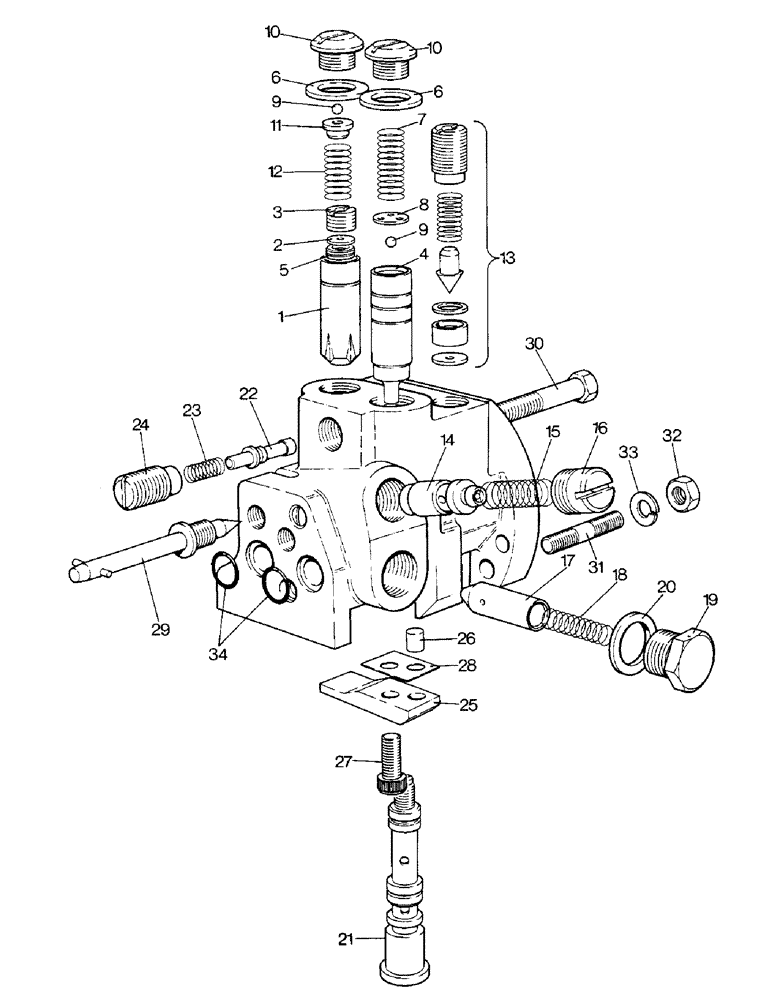

Запчасти Case IH 1690 (K10-1) - SELECTAMATIC CONTROL VALVE (07) - HYDRAULICS

K956607

VALVE

ASSEMBLY - control, Includes Ref. 1 - 24

1шт.

1

NSS

NOT SOLD SEPARAT

PLUNGER - by-pass valve

1шт.

2

K948380

PLATE

WASHER - restrictor

1шт.

3

K943901

PLUG

- 3/8 UNF, special

1шт.

4

NSS

NOT SOLD SEPARAT

PLUNGER - hold valve

1шт.

5

K921154

FILTER

- bypass valve

1шт.

6

K623515

SEAL,16.38mm ID x 25.53mm OD x 3.2mm Thk

WASHER - sealing 5/8"

2шт.

7

K24832

SPRING

- plunger

1шт.

8

K920136

SHIM

RETAINER - ball

1шт.

9

211-203

BALL,1/8" Dia

STEEL BALL - 1/8"

2шт.

10

K948067

PLUG

- 5/8 UNF, special

1шт.

10

K913242

PLUG

- 5/8 UNF, special

1шт.

11

K947977

RETAINER

- steel ball

1шт.

12

K24832

SPRING

- by-pass valve

1шт.

13

K961794

VALVE

RELIEF VALVE - pre-set assembly

1шт.

14

K202530

SPOOL

- rate of lowering valve

1шт.

15

K625108

SPRING

- rate of lowering valve

1шт.

16

K202531

CAP

PLUG - 3/8 BSP, special

1шт.

17

K916395

PLUNGER

- non-return valve

1шт.

18

K625167

SPRING

- non-return valve

1шт.

19

K916397

PLUG

- 3/4 UNF, special

1шт.

20

K623530

SEAL

WASHER - sealing, 3/4"

1шт.

21

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

22

NSS

NOT SOLD SEPARAT

PLUNGER - latching valve

1шт.

23

K625180

SPRING

- latching valve

1шт.

24

K913971

PLUG

- 9/16 UNF, special

1шт.

25

K912464

WASHER

PLATE - abutment

1шт.

26

K24853

PIN

DOWEL - 1/4 x 11/16"

1шт.

27

K606803

SCREW

- 1/4 UNC, self-locking

1шт.

28

K912465

SHIM,.003" Thk

1шт.

28

K912466

SHIM,.007" Thk

1шт.

28

K912467

SHIM,.015" Thk

1шт.

29

K944593

NEEDLE

VALVE - needle, 7/16 UNC

1шт.

30

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

1шт.

31

K608143

STUD

- 5/16 UNC x 1-1/2"

2шт.

32

9635082

NUT,5/16" - 18, Gr 5

2шт.

33

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

34

K625408

O-RING

- 7/16", internal diameter

2шт.

K962813

GASKET

SEAL KIT - control valve

1шт.
