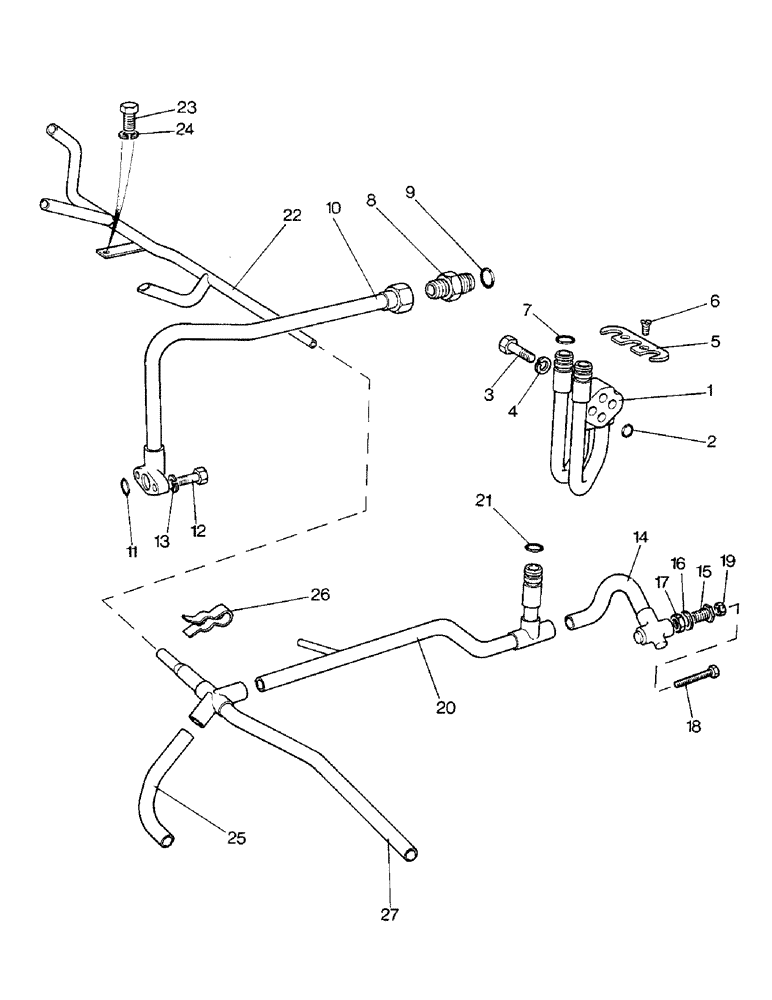

Запчасти Case IH 1690 (K06-1) - HYDRAULIC PIPES - REAR AXLE, POWER SHIFT, SYNCHROMESH (07) - HYDRAULICS

1

K952224

PIPE

- control valve

1шт.

2

K625408

O-RING

- 7/16", ID

2шт.

3

K600561

BOLT

- 3/8 UNC x 1-5/8", ID

2шт.

4

K19482

SPRING WASHER

WASHER - lock, 3/8"

2шт.

5

K915344

WASHER

PLATE - locating

1шт.

6

K603662

SCREW

SETSCREW - 1/4 UNC x 5/8"

2шт.

7

K625405

O-RING,0.549" ID x 0.103" Width

- 9/16", ID

2шт.

8

K626026

FITTING

UNION - 7/8 UNF

1шт.

9

K623592

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8", ID

1шт.

10

K929843

PIPE

- ram cylinder

1шт.

11

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16", ID

1шт.

12

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

SETSCREW - 5/16 UNC x 1"

2шт.

13

K19481

SPRING WASHER

WASHER - lock, 5/16"

2шт.

14

K915339

TUBE

PIPE - control valve to tee piece

1шт.

15

K912269

BUSHING

- threaded, 1/2-5/16" UNC

1шт.

16

K626577

WASHER

- sealing, 1/2"

1шт.

17

86632558

JAM NUT,Jam, 1/2"-13, G5

LOCKNUT - 1/2 UNC

1шт.

18

K600363

BOLT

- 5/16 UNC x 2-1/2"

1шт.

19

K607081

LOCK NUT

LOCKNUT - 5/16 UNC

1шт.

20

K916891

PIPE

- distribution block to cross piece

1шт.

21

K625405

O-RING,0.549" ID x 0.103" Width

- 9/16", ID

1шт.

22

K203177

PIPE,19.437, 3.125" L

- gearbox lubrication (Synchromesh)

1шт.

22

K942372

PIPE

- gearbox lubrication (Power Shift)

1шт.

23

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SETSCREW - 1/4 UNC x 1/2"

1шт.

24

K626341

SPRING WASHER

WASHER - lock, 1/4"

1шт.

25

K913785

PIPE,0.5" OD

- ram cylinder lubrication

1шт.

26

K625009

SPRING

CLIP - retaining

1шт.

27

K950514

PIPE

- reversible shaft PTO lubrication

1шт.
