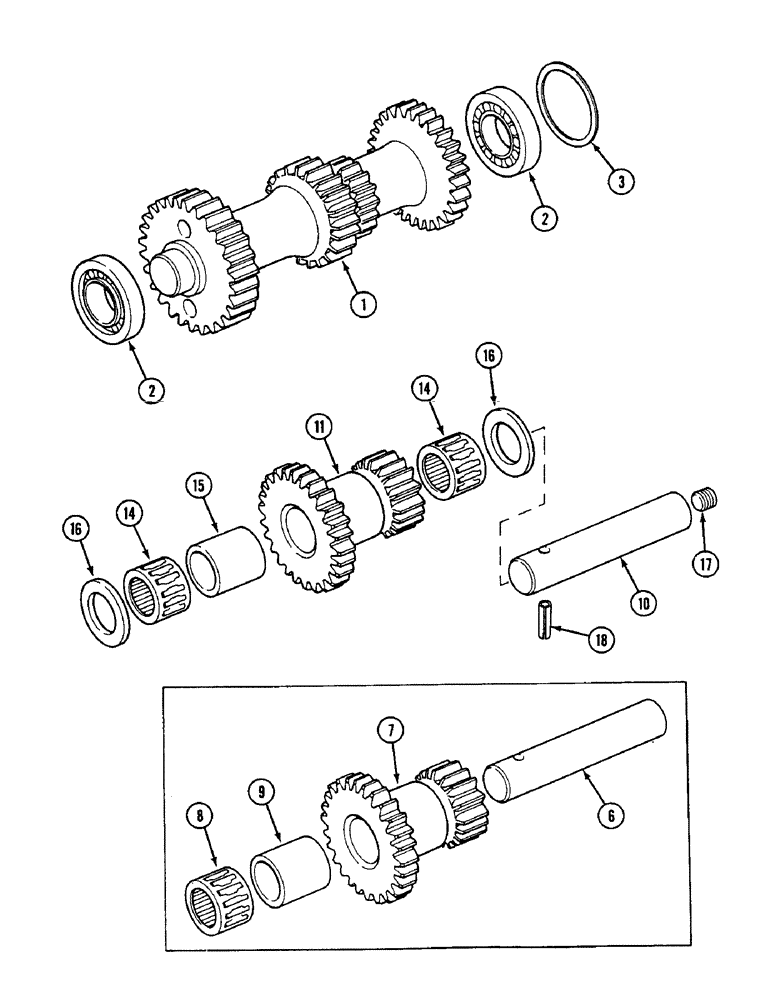

Запчасти Case IH 1594 (6-170) - IDLER SHAFTS AND GEARS, SYNCHROMESH GEARBOX (06) - POWER TRAIN

1

K206938

PINION

SHAFT - idler, with integral gears

1шт.

2

K620076

BEARING, ROLLER

BEARING - roller

2шт.

3

K914702

SHIM,50.8mm ID x 67.06mm OD x 0.05mm Thk

(0.05 mm) .002" Thk

1шт.

3

K914703

SHIM,.003" Thk

(0.08 mm) .003" Thk

1шт.

3

K914704

SHIM,50.8mm ID x 67.06mm OD x 0.18mm Thk

(0.18 mm) .007" Thk

1шт.

3

K914705

SHIM,50.8mm ID x 67.06mm OD x 0.25mm Thk

(0.25 mm) .010" Thk

1шт.

6

K207628

SHAFT

SPINDLE - idler gear (Prior to P.I.N. 11220650)

1шт.

7

K957514

SHAFT

GEAR - idler (Prior to P.I.N. 11220650)

1шт.

8

K620273

BEARING, NEEDLE,28.57mm ID x 38.1mm OD x 25.02mm W

BEARING - roller, needle, 1 inch Long (Prior to P.I.N. 11220650)

2шт.

9

K627179

BUSHING

SPACER - bearing, 1.93 inch (49 mm) Long (Prior to P.I.N. 11220650)

1шт.

10

K207628

SHAFT

SPINDLE - idler gear (P.I.N. 11220650 and after)

1шт.

11

K957514

SHAFT

GEAR - idler (P.I.N. 11220650 and after)

1шт.

14

K620276

ROLLER CAGE BEARING

BEARING - needle roller, 1.25 inch Long (P.I.N. 11220650 and after)

2шт.

15

K627177

BUSHING

SPACER - bearing, 1.43 inch (36 mm) Long (P.I.N. 11220650 and after)

1шт.

16

K627478

WASHER

- thrust

2шт.

17

K606261

SCREW

PLUG - spindle, 7/16 inch UNC

1шт.

18

38-12032

LOCK PIN,5/16" x 2", Slotted

Pin, 5/16" x 2", Slotted

1шт.
